WARNING: Risk of Fire or Electric Shock

• Disconnect power before installation or any maintenance of the xture.

• To avoid damage, falling, electric shock or re, do not modify the xture or replace

accessories without conrming with the supplier rst.

• Only authorized, qualied personnel should install this xture and should follow

the owner’s manual.

• Do not dismantle the xture without the supplier’s authorization.

• Do not touch the power supply when the xture is operating.

• For use in environments where an accumulation of non-conductive dust on the

xture may be expected.

• Suitable for indoor/outdoor installations.

IMPORTANT:This product must be installed in accordance with the applicable

installation code by a person familiar with the construction and operation of the

product and the hazards involved.

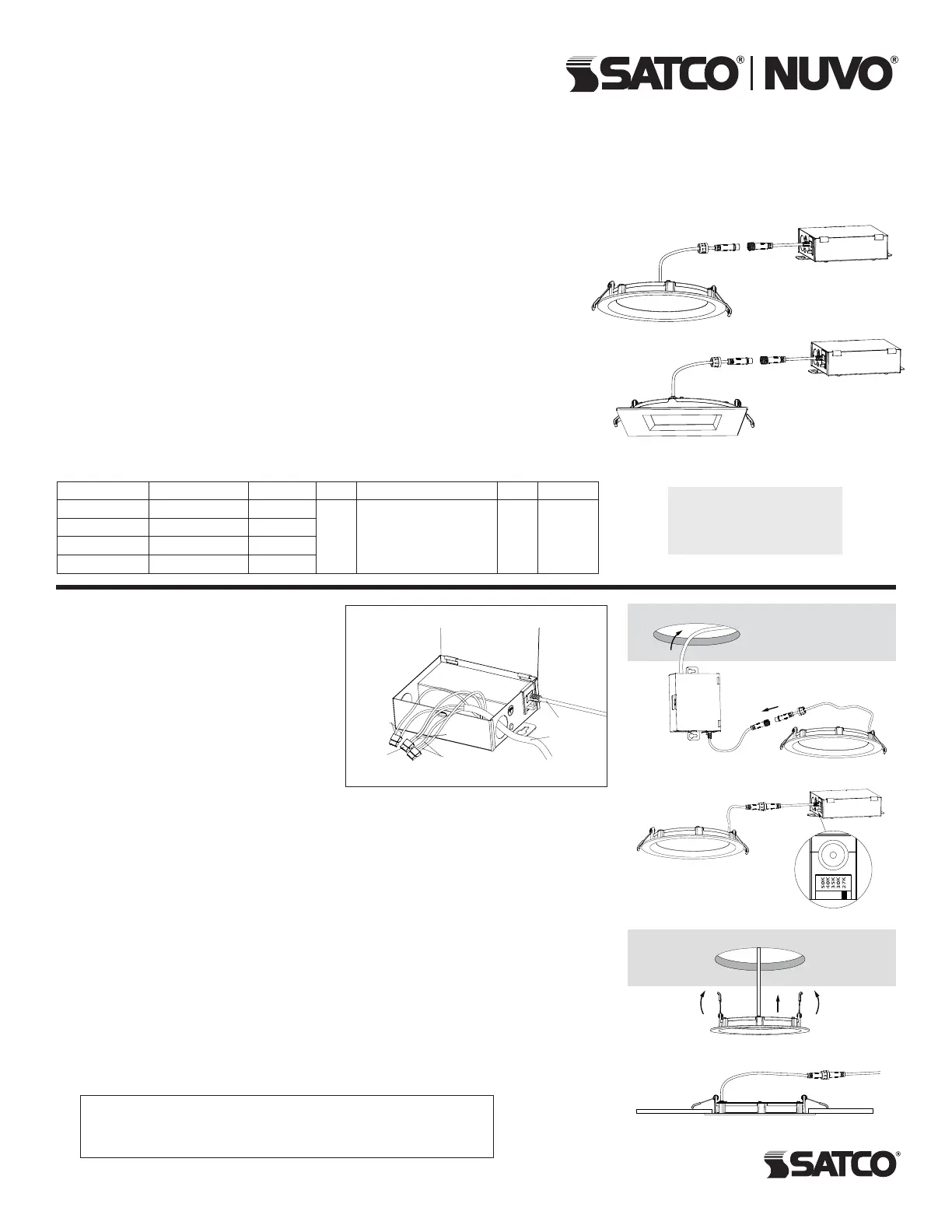

LED CCT SELECTABLE REMOTE

DRIVER DOWNLIGHTS

Models: S11870R1, S11871R1, S11872R1, S11873R1

Satco Products, Inc.

Brentwood, NY 11717

INSTALLATION

INSTALLATION AND SAFETY INSTRUCTIONS

IMPORTANT: Read before installing xture. Retain for future reference.

© Copyright 2025 Satco Products, Inc. 2/25 v1.0

ModelDescriptionWatts VoltsCCTCRIFinish

S11870R14" Round10W

120V

2700K, 3000K, 3500K,

4000K, 5000K

90White

S11871R14" Square9W

S11872R16" Round13W

S11873R16" Square12W

Fixture Includes:

1 LED Lamp

1 Junction Box

TOOLS REQUIRED: Hole saw, measuring

tape and connector cables (as needed).

NOTE: Use extensions if necessary.

Available connector cables are 6' (1.8m).

Connector cables are linkable.

1. Turn power OFF from the electrical panel

before starting installation.

2. Cut a hole in the ceiling for the downlight

in a suitable position. Refer to Hole Cut

Dimensions chart (below).

3. Run the electrical wire from the switch

(power supply wire) through the mounting hole. Use NMD90 Romex or BX cable.

See Figure A.

4. Open the Junction Box swing cover and remove the appropriate knockouts.

5. Insert the power supply wire through the knockout and fasten with a cable connector

(not included).

6. Connect wires inside the Junction Box using the quick connect terminals. Connect

green ground with the green box wire. Connect the black and white power leads with the

matching black and white box wires. See Wiring Diagram.

7. Put all wires and connections back into the box and close the cover securely.

8. New Construction Applications: Junction Box shall be firmly secured to the studs,

joists or similar fixed structural units.

Remodel Applications: Do not require the Junction Box to be firmly secured to xed

structural units.

9. Choose desired color temperature. See Figure B.

10. Bend back the two torsion springs and slowly t the xture through the ceiling hole.

The torsion springs will pull the xture into place. See Figures C & D.

11. Once installation is complete, turn power ON to conrm the xture is working properly.

Hole Cut Dimensions:

4" Round: ø110mm (4.25") 6" Round: ø160mm (6.30")

4" Square: ø110mm (4.25") 6" Square: ø160mm (6.30")

WIRING DIAGRAM

Cable to fixture

Power supply

Green wires

White wires

Black

wires

Quick connect

terminals

Figure A

Figure B

Figure C

Figure D

Meets requirements of ICES-005 issue 5 class A for use in residential applications.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two

conditions: (1) this device may not cause harmful interference, and (2) this device must accept

any interference received, including interference that may cause undesired operation.
