INSTALLATION AND SAFETY INSTRUCTIONS
IMPORTANT: Read before installing xture. Retain for future reference.
4' T8 LED TYPE A
DIRECT REPLACEMENT
Models: S11740R1, S11741R1, S11742R1, S11743R1, S49934R1, S49935R1,
S49936R1, S49937R1, S49975R1, S49976R1, S49977R1, S49978R1
Satco Products, Inc.
Brentwood, NY 11717© Copyright 2024 Satco Products, Inc. 10/24 v4.0
WARNING:Risk of re or electric shock.
Disconnect power before installation.
• Product must be installed in accordance with the national
electrical code or your local electrical code. If you are not
familiar with these codes and requirements, contact a
qualied electrician.
• Check the lamp before installation. If there is any damage
DO NOT INSTALL.
• LED T8 lamp to be operated with qualied electronic ballast,
emergency ballast and dimming ballast. Dimmable only with
compatible dimmable ballasts Check the compatibility list
before installation. Visit www.Satco.com for compatibility list.
• Use only in place of uorescent lamps specied on label.
• Suitable for damp locations.
• DO NOT INSTALL this lamp in a pre-heat luminaire.
• This lamp only operates on electronic ballasts. If lamp does
not light when the luminaire is energized, remove lamp
from luminaire and contract lamp manufacturer or qualied
electrician.
• If the lamp or luminaire exhibits undesirable operation
(buzzing, ickering etc.), immediately turn off power, remove
lamp from luminaire and contact manufacturer.
• To prevent wiring damage or abrasion, do not expose wiring
to edges of sheet metal or other sharp objects.
• Do not make or alter any open holes in an enclosure
of wiring or electrical components during installation.
• Installers should not disconnect the existing wire from lamp
holder terminals to make new connections at lamp holder
terminals. Instead installers should cut existing lamp holder
leads away from the lamp holder and make new electrical
connections to lamp holder lead wires by employing
applicable connectors.
• Check the existing wiring for damage before installing.
DO NOT INSTALL if existing wires are damaged.
• Suitable for use in enclosed luminaries, not vapor tight.
• Disconnect lamp from power supply before any maintenance.
• Clean luminaire with dry cloth.
• Do not clean the lamp with corrosive chemicals.
• To ensure proper lamp performance, temperature of the
Tc point should not exceed ensure 131ºF after a min. of
2 hours of use.
• This device complies with part 18 of the FCC Rules.This
product may cause interference to radio equipment and
should not be installed near maritime safety communications
equipment or other critical navigation or communication
equipment operating between 0.45-30 MHZ.
• TYPE A LAMP - Intended for direct substitution of a
uorescent lamp and operating from the integral ballast
without any modications to the uorescent luminaire.
The units covered by this report were
intended to retrot surface mount, Type IC
or non-IC recessed mount Listed uorescent
luminaires that use maximum 4 tubular
lamps, the minimum lamp compartment
dimensions are tabulated below.

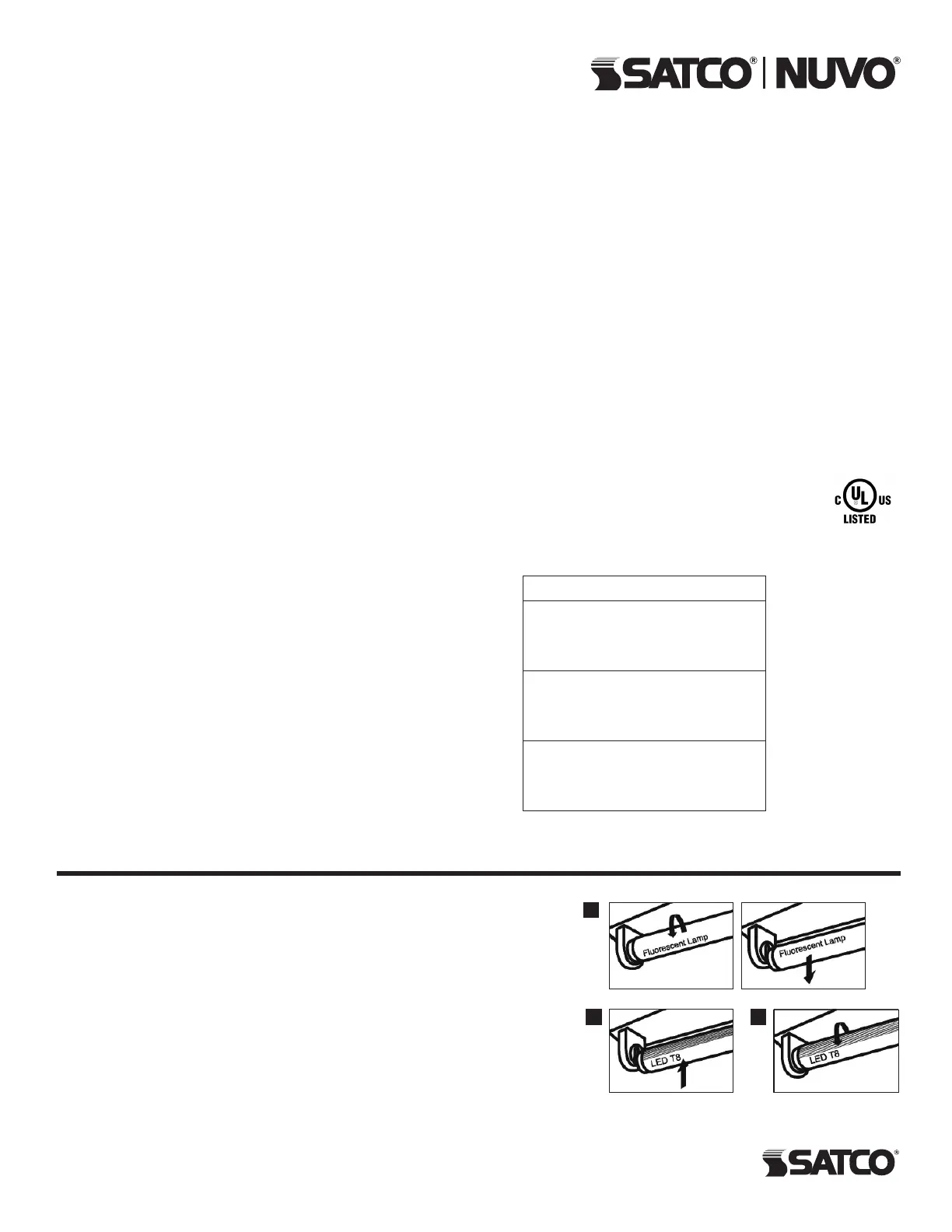

INSTALLATION INSTRUCTIONS
STEP 1: Turn power OFF.
STEP 2: Remove lens or diffuser (if applicable).
STEP 3: Remove existing uorescent lamps from the luminaire. See Figure A.
STEP 4: Bring LED lamp to luminaire and insert lamp pins into luminaire lamp
holders. See Figure B.
STEP 5: Rotate LED lamp until lamp locks in place. Ensure that the LED lamp
front points away from the back of the luminaire.
See Figure C.
NOTE: Install LED T8 replacement lamp one for each uorescent lamp removed.
STEP 6: Place lens or diffuser back in place (if applicable).
STEP 7: Turn power ON.
A
BC
Item Number–Description
S11740R1 9.5/T8/LED/48-830/DR
S11741R1 9.5/T8/LED/48-835/DR
S11742R1 9.5/T8/LED/48-840/DR
S11743R1 9.5/T8/LED/48-850/DR
S49934R1 11/T8/LED/48-830/DR
S49935R1 11/T8/LED/48-835/DR
S49936R1 11/T8/LED/48-840/DR
S49937R1 11/T8/LED/48-850/DR
S49975R1 14/T8/LED/48-830/DR
S49976R1 14/T8/LED/48-835/DR
S49977R1 14/T8/LED/48-840/DR
S49978R1 14/T8/LED/48-850/DR
