CTV 110
Quick Start Guide
EN FR
www.sauermanngroup.com
ES IT
English
Quick Start Guide

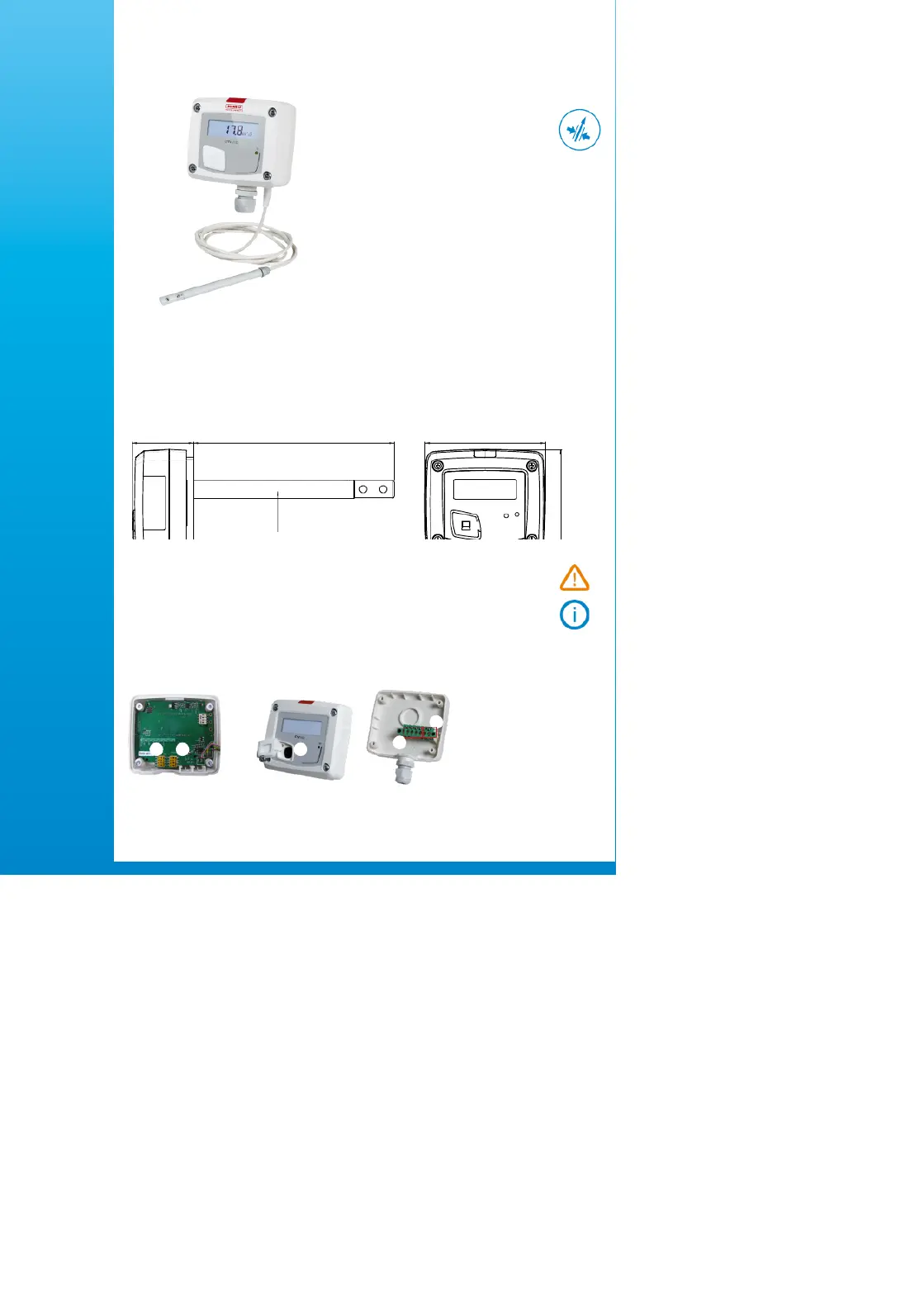

Temperature and air velocity
transmitter
150 mm ou 300 mm
46 mm 90 mm
109 mm
Ø 13 mm
Operating temperature, protection of the instruments and information about storage
Conditions of use (°C/%RH/m): from 0 to +50 °C;. In non-condensing conditions. From 0 to 2000 m.
Protection index: IP65
Storage temperature: from -20 to +80 °C.
Dimensions
Symbols used
For your safety and in order to avoid any damage of the device, please follow the procedure described in
this document and read carefully the notes preceded by the following symbol:
The following symbol will also be used in this document, please read carefully the information notes
indicated after this symbol:
Connections
1. Switch 1 (S1)
2. Switch 2 (S2)
3. LCC-S software connection
4. Output terminal block
5. Power supply terminal block
6. Cable gland
12
6
5
4
3
Inside the front housing Removable front face Fixed back housing

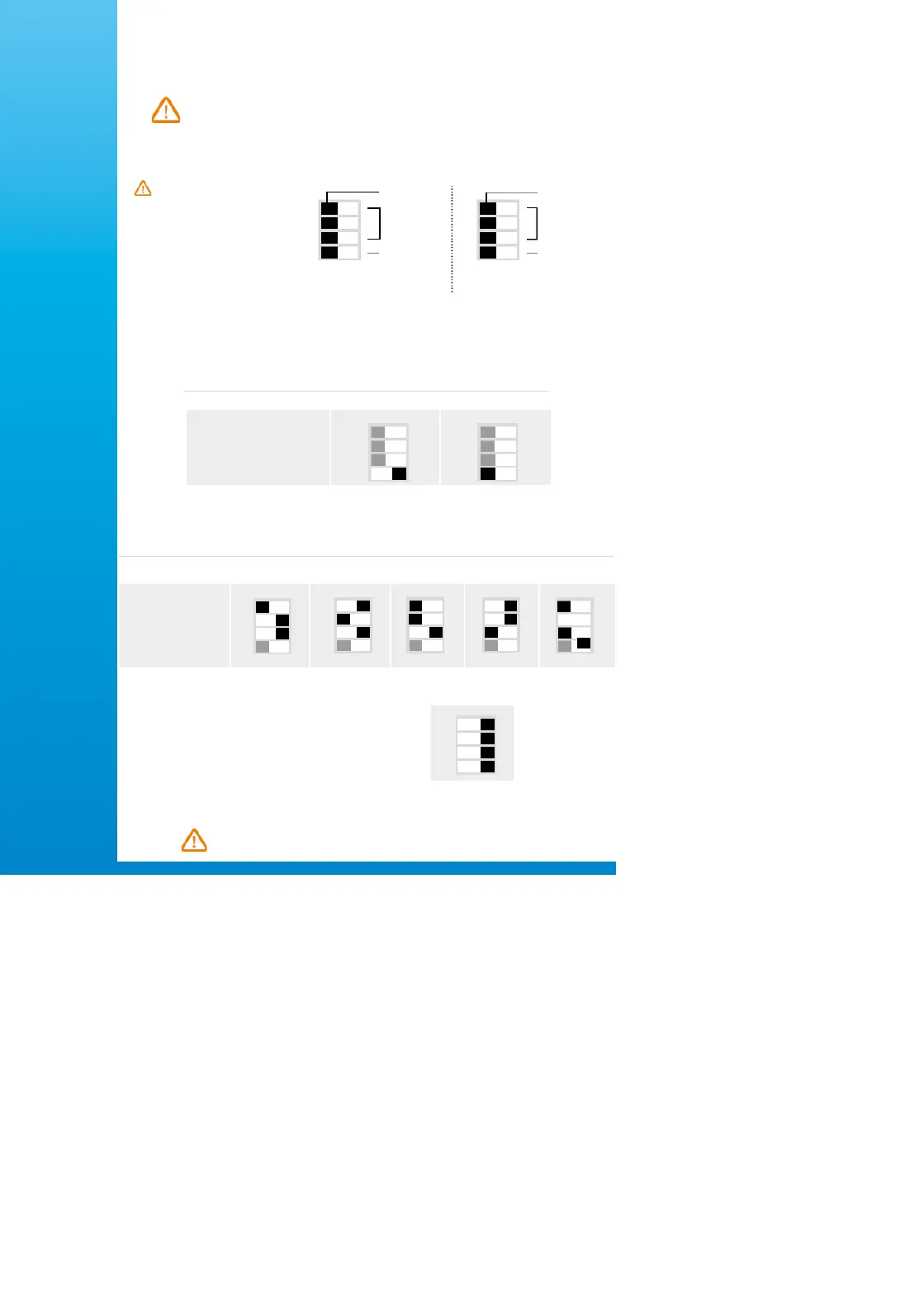

Settings and use of the transmitter
Conguration
by switch
To congure the transmitter, it must not be energized. Then, you can make the settings required,
with the DIP switches (as shown on the drawing below). When the transmitter is congured, you
can power it up.
1
2
3
4
1
2
3
4
Off On Off On
Switch 2
Switch 1
Temperature
measuring range
setting
Air velocity unit
setting
Temperature unit
setting
Air velocity
measuring range
setting
On-off switch
Conguration It is possible to congure the measuring ranges and the units of the transmitter via switch and/or software.
To congure the transmitter, unscrew the 4 screws from the housing then open it. DIP switches allowing
the different settings are then accessible.
Please follow carefully the
combinations beside with the DIP
switch. If the combination is wrongly
done, the following message
will appear on the display of the
transmitter “CONF ERROR”. In that
case, you will have to unplug the
transmitter, place the DIP switches
correctly, and then power the
transmitter up.
On-off switch
Unit settings
To set a measurement unit in air velocity and temperature, put the on-off switch 4 of the units as shown in the table
beside.
Air velocity m/s fpm(Switch 1)
Temperature °C °F(Switch 2)
Combinations
1
2
3
4
1
2
3
4
Outputs setting To set a measuring range, put the on-off switches 1, 2 and 3 as shown beside.
Congurations of air
velocity (Switch 1)
From 0 to 5 m/s From 0 to 10 m/s From 0 to 20 m/sFrom 0 to 15 m/s
From 0 to
30 m/s
Congurations of
temperature (Switch 2)
From 0 to +50 °C
From -20 to
+80 °C
From -50 to
+50 °C
From 0 to 100 °C From 0 to 200 °C
Combinaisons
1
2
3
4
1
2
3
4
1
2
3
4
1
2
3
4
1
2
3
4
Conguration via LCC-S software (option)
An easy and friendly conguration with the software!
You can congure your own intermediate ranges.
Example: for a 0-30 m/s transmitter, the minimum difference of the
range is 5 m/s. The instrument could be then congured from 5 to
10 m/s.
To access the conguration via software:
• Set the DIP switches as shown beside
• Connect the cable of the LCC-S to the connection of the transmitter.
The conguration of the parameters can be done either with the DIP switch or
via software (you can not combine both methods).
Conguration
via PC
Switch 1
1
2
3
4
Please refer to the user
manual of the LCC-S to
make the conguration.
