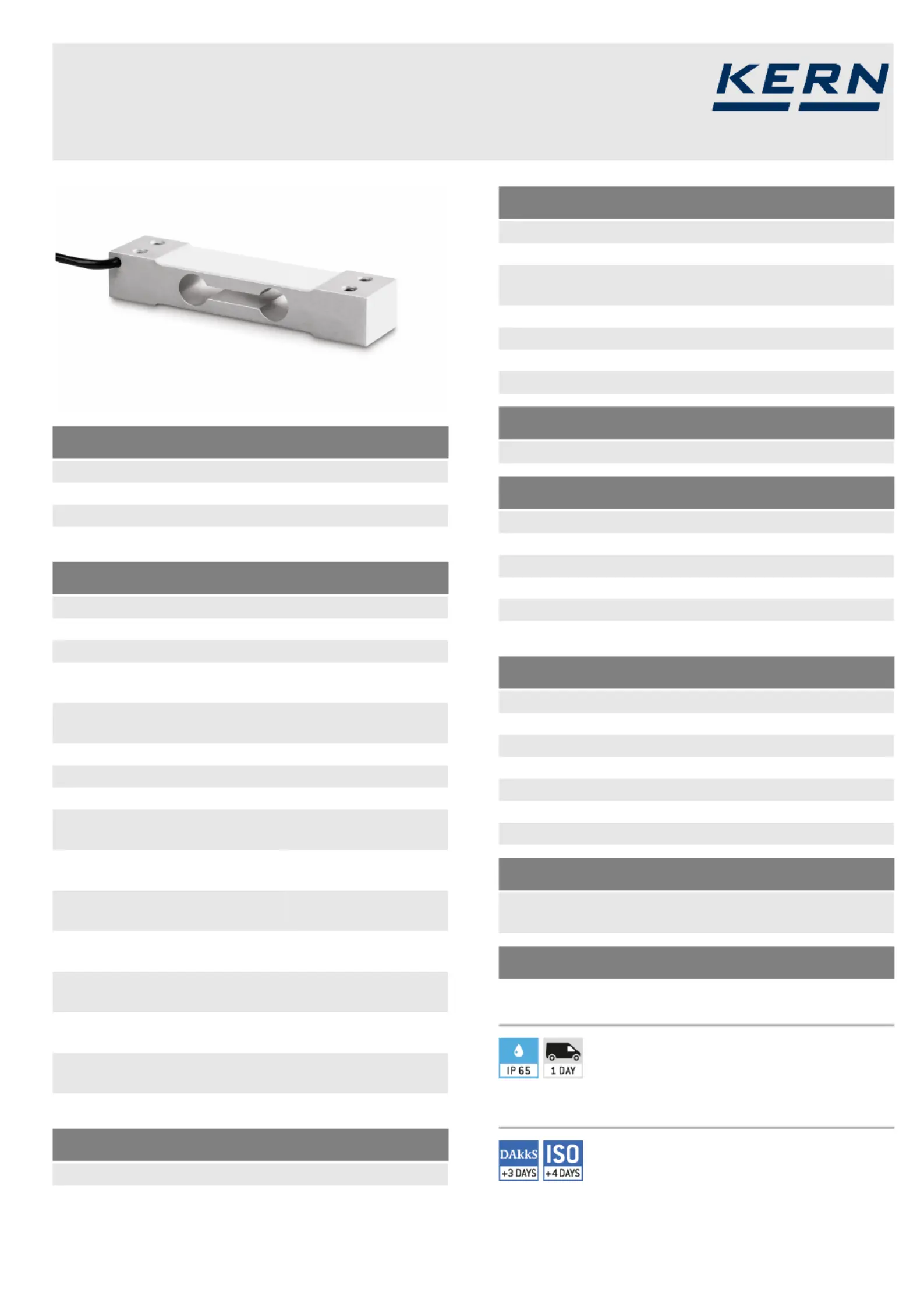

KERN CP 30-2Y1
Single-point load cell made of anodised aluminium
1
Category
BrandSauter
Product categoriyMeasuring cell
Product groupLoad cell
Product familyCP Y1
Measuring System
Weighing capacity [Max]30 kg
Load cell connection4-wire
Load cell OIML classC2
Load cell - characteristic value -
nominal
2 mV/V
Load cell - characteristic value -
variance
0,2 mV/V
Load cell - Combined error0,03%
Load cell - Dead load [Min] (%)0%
Measuring applicationsmass
Load sell - Input resistance -
nominal
405 Ω
Load cell - Output resistance -
nominal
350 Ω
Load cell - Isolation resistance -
[Min]
5000 MΩ
Load cell - Recommended exitation
voltage [Min]
9 V
Load cell - Recommended exitation
voltage [Max]
12 V
Load cell - Input resistance -
variance
10 Ω
Load cell - Output resistance -
variance
3 Ω
Directions of forcecompression
Approval
CE mark✓
Construction
DesignSinglepoint load cell
Dimension (W×D×H)130×22×30 mm
Dimensions weighing platform
(W×D×H)
250×350×0 mm
Materialaluminium
Cable length0,45 m
Mounting - force application2 × threaded hole M6
Mounting - force dissipation2 × threaded hole M6
Functions
IP protection - complete deviceIP65
Environmental conditions
Use temperature [Min]-10 °C
Use temperature [Max]40 °C
Ambient temperature [Min]-20 °C
Ambient temperature [Max]50 °C
Storage temperature [Min]-30 °C
Storage temperature [Max]60 °C
Packing & Shipping
Readability force [d] (N)1 d
Dimensions packaging (W×D×H)120×50×35 mm
Net weight0,071 kg
Shipping methodParcel service
Net weight approx.0,10 kg
Gross weight approx.0,10 kg
Shipping weight0,1 kg
Services (optional)
Article number for DAkkS
calibration (compressive force)
963-261V
Pictograms
STANDARD
OPTION
