Seite 1/2
Input Voltage 12/24V System 10-32V DC
Input Current Max 6A
Output Type
12V System 24V System
USB-C USB-C
5V
⎓ ⎓3A, 9V 3A,
12V
⎓3A MAX
5V
⎓ ⎓ ⎓ ⎓3A, 9V 3A, 12V 3A, 15V 3A,
20V
⎓3A MAX
Standby Draw < 0.1W
Cable 18 AWG - Minimum bend rad 15mm
Stainless 40.40mm (1.59”) sq
Black 43mm (1.69”) sq
Barrel
ø 28mm (1.10”)
Cutout
ø 29mm (1.14”)
+
-
Red
Black
Drill
Pozi Screwdriver
Drill Bit
2mm (5/64”) or 2.5mm (3/32”)
Tools Required
1x Charger1 x Decorative Bezel
Parts List
2 x No.4 x 20mm
screws
Hole Saw
29mm (1 1/8”)
Drill mounting hole
using hole saw
Connect to wiring loom pre or post
panel mounting
1
2

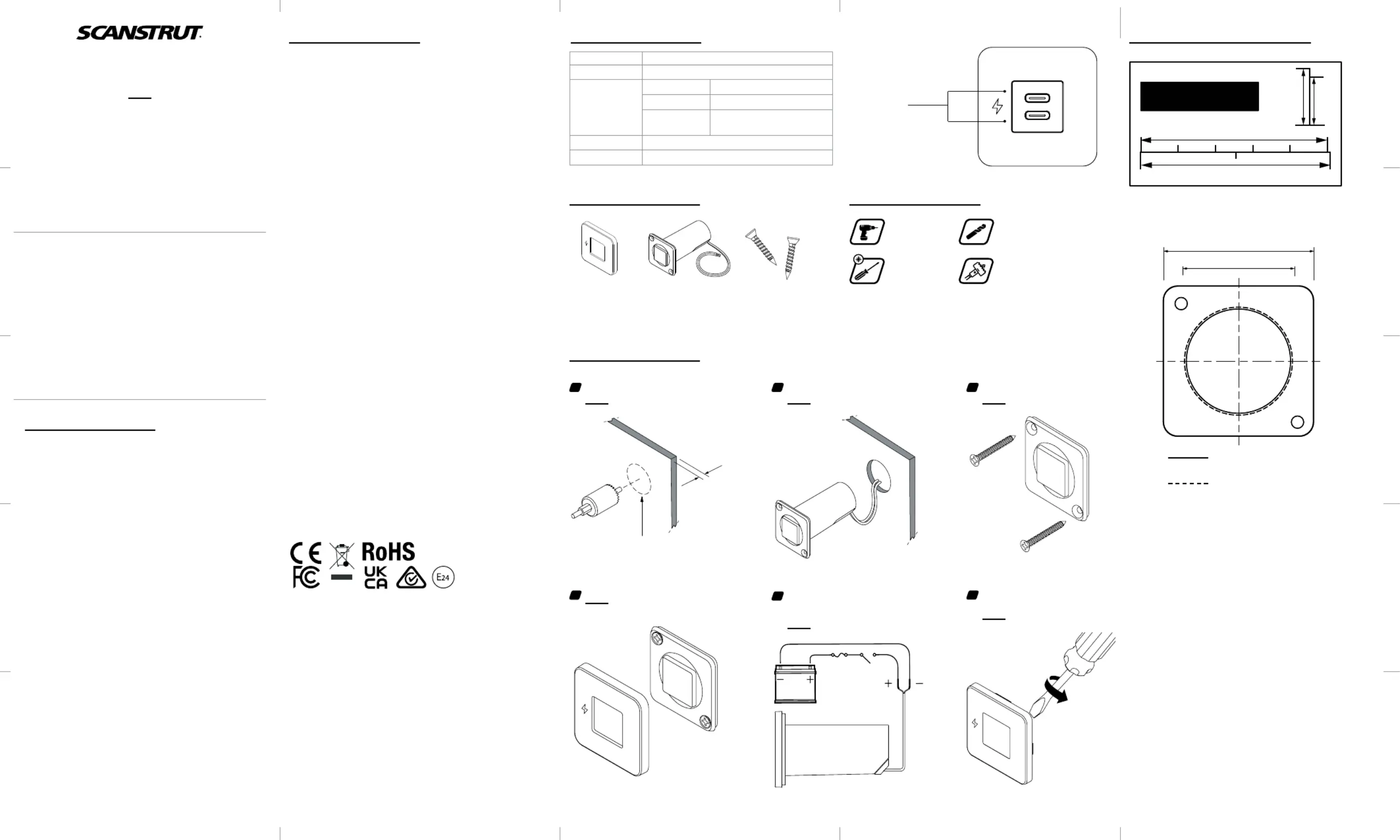

Installation
Drill Pilot hole suitable for
substrate and fix it in place
3
Clip bezel over charger
Connect to 12/24V supply, ensuring a waterproof
connection. Fuse and select cable diameter
according to input voltage and current for your
specific installation.
4
5
SC-TILE-20 Black
SC-TILE-21 Brushed Stainless
Steel
3mm / 0.12” Min
ø 29mm / 1 1/8” Min
Fixings 30mm (1.18”) sq
10R-06 6497
Scanstrut Ltd, declares the products ‘TILE’ SKU: SC-TILE-20 and SC-TILE-21 are
in compliance with EMC CE-RED Directive (2014/30/EU) & The CE certificate
of EN55032, EN55035, EN61000, IEC EN 62368-1 conformity can be found at
scanstrut.com/support/compliance
IC Statement
This class B digital apparatus complies with Canadian ICES-003 (B) /
NMB-003 (B).
C’et appareil numérique est couforme à la norme NMB-003 du Canadian.
50mm
2”
�5mm
0.5”
WARNING
CHECK SCALE
Use flathead screwdriver in a twisting
motion on the top corner to remove
the bezel.
6
Stainless 40.40mm (1.59”) sq
Black 43mm (1.69”) sq
Technical Information
Main Charging Protocol
QC = Quick Charge
PD = Power delivery
USB-C
PD 3 and QC4
Drilling Template Scale 1:1
TILE • USB-C / USB-C
Interior Charging Socket 12/24V
Electrical Information
& Installation Instructions
EN READ THESE INSTRUCTIONS BEFORE INSTALLING THE
PRODUCT
DE LESEN SIE DIESE ANLEITUNG DURCH, BEVOR SIE MIT DER
INSTALLATION BEGINNEN
ES LEA ESTAS INSTRUCCIONES ANTES DE INSTALAR EL
PRODUCTO
FR VEUILLEZ PRENDRE CONNAISSANCE DE CES
INSTRUCTIONS. AVANT DE PROCÉDER À L’INSTALLATION
IT LEGGERE QUESTE ISTRUZIONI PRIMA DI INSTALLARE IL
PRODOTTO
FIN LUE NÄMÄ OHJEET ENNEN TUOTTEEN ASENTAMISTA.
SWE LÄS DESSA INSTRUKTIONER INNAN PRODUKTEN
INSTALLERAS
SC-TILE-20 Black Bezel
SC-TILE-21
Brushed Stainless Steel Bezel
FCC Warning
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions:(1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
Any Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation. This equipment generates uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment o and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit dierent from that to which
the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
FCC RF exposure statement
The equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. During the operation of device a distance of 15 cm
surrounding the device and 20 cm above the top surface of the device must
be respected.
EN Warning
This product is designed for interior use only. Do not install it in any location where it may
be exposed to water.
This product is to be connected to a 12V DC or 24V DC battery power source only.
The power supply must be switched o before installation.
An appropriate fuse or circuit breaker must be used between the battery / power
source and this product. Check for correct polarity of all wiring before switching the
power on.
This product may contain high voltages. Do not tamper with the product.
This product is approved for use in hazardous/flammable atmospheres. NOT
DO NOT install in a hazardous/flammable atmosphere e.g. engine room.
Before drilling any holes, ensure the area behind the mounting location is clear of wires,
fuel and all other hazardous objects.
Ensure any holes cut will not significantly weaken the structure of the mounting surface.
CAUTION
The product is specially designed for charging QC and PD compatible devices.
This product does not contain any user serviceable parts. DO NOT attempt to repair
or modify the product in any way.
When used in high ambient temperature or in direct sunlight, the product may turn o
temporarily, this is a safety feature of the electronics.
When choosing a mounting location, avoid areas exposed to heat radiation and areas
with poor ventilation.
WIRING
Professional electrician installation recommended, see Technical Information for power
requirements.
To achieve max power output, the specified voltage must be at the charger. Battery
performance and voltage drop need to be considered for installation.
ENVIRONMENTAL PROTECTION
Waste electrical products should not be disposed of with household waste. Please
recycle where facilities exist. Check with your Local Authority or retailer for recycling
advice.
IMPORTANT
Scanstrut Ltd & Inc. accepts no responsibility for any injuries or other damages arising
from the use of their products in any circumstances.
WARRANTY
A 3 year, non-transferable warranty covers this Scanstrut product only and not any
devices that are charged by it. No warranty is given for users’ devices and users expose
their devices to hazards, known or unknown, at their own risk.
