METER–PAK™ Wireway Extension, Catalog No. MP12X8PEDEXT

Extensión de ducto para cables METER–PAK™, no. de cat. MP12X8PEDEXT

Class / Clase 4141

1

© 2001Schneider ElectricAll Rights Reserved

Retain for future use. / Conservar para uso futuro.

E

N

G

L

I

S

H

InstructionBoletín de

Bulletininstrucciones

Square D Company

1601 Mercer Road

Lexington, KY 40511 USA

1-888-SquareD (1-888-778-2733)

www.SquareD.com

Electrical equipment should be serviced only by qualified personnel. No responsibility is assumed

by Schneider Electric for any consequences arising out of the use of this material. This document

is not intended as an instruction manual for untrained persons.

INTRODUCTION

This bulletin contains instructions for the installation of the METER–PAK™

Wireway Extension (MP12X8PEDEXT) to the METER–PAK Wireway device

(MP43X8PED) manufactured by Square D.

To mount the wireway extension to the wireway device, see Figure 1.

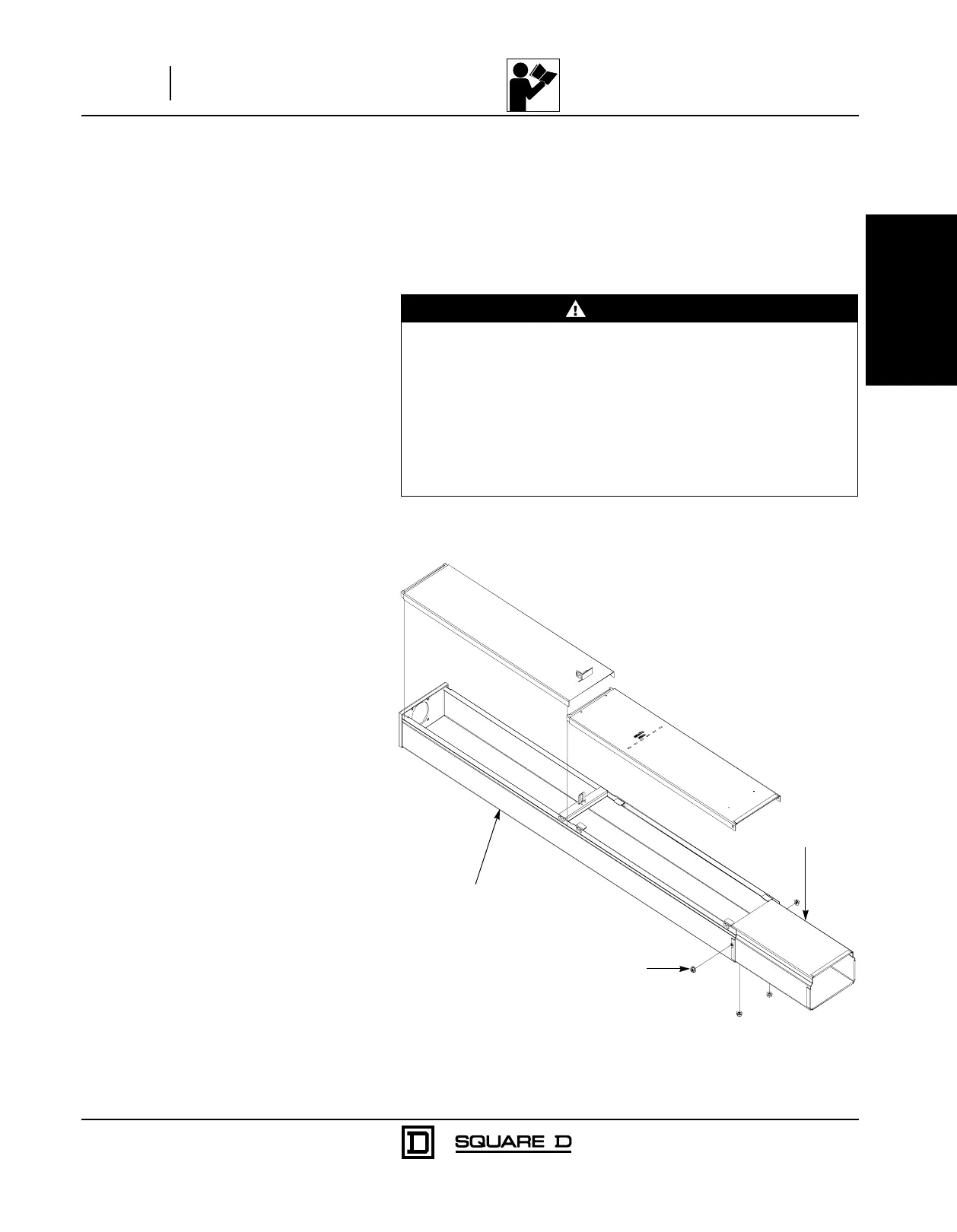

Figure 1:METER–PAK Wireway Extension Installation

SAFETY PRECAUTIONS

HAZARD OF ELECTRIC SHOCK, BURN, OR EXPLOSION

•This kit must be installed and serviced only by qualified electrical personnel.

•Turn off all power supplying the equipment where this kit will be installed

before working on or inside the equipment.

•Always use a properly rated voltage sensing device to confirm that all

power is off.

•Replace all devices, doors, and covers after installing this kit and before

turning on power to the equipment.

Failure to follow these instructions will result in death or serious injury.

DANGER

MOUNTING WIREWAY EXTENSION

Torque to 75 lb-in (9 N•m), four places

METER–PAK Wireway device

METER–PAK

Wireway extension

4141-9625
