Installation:

Overview:

S

p

ecifications:

Features:

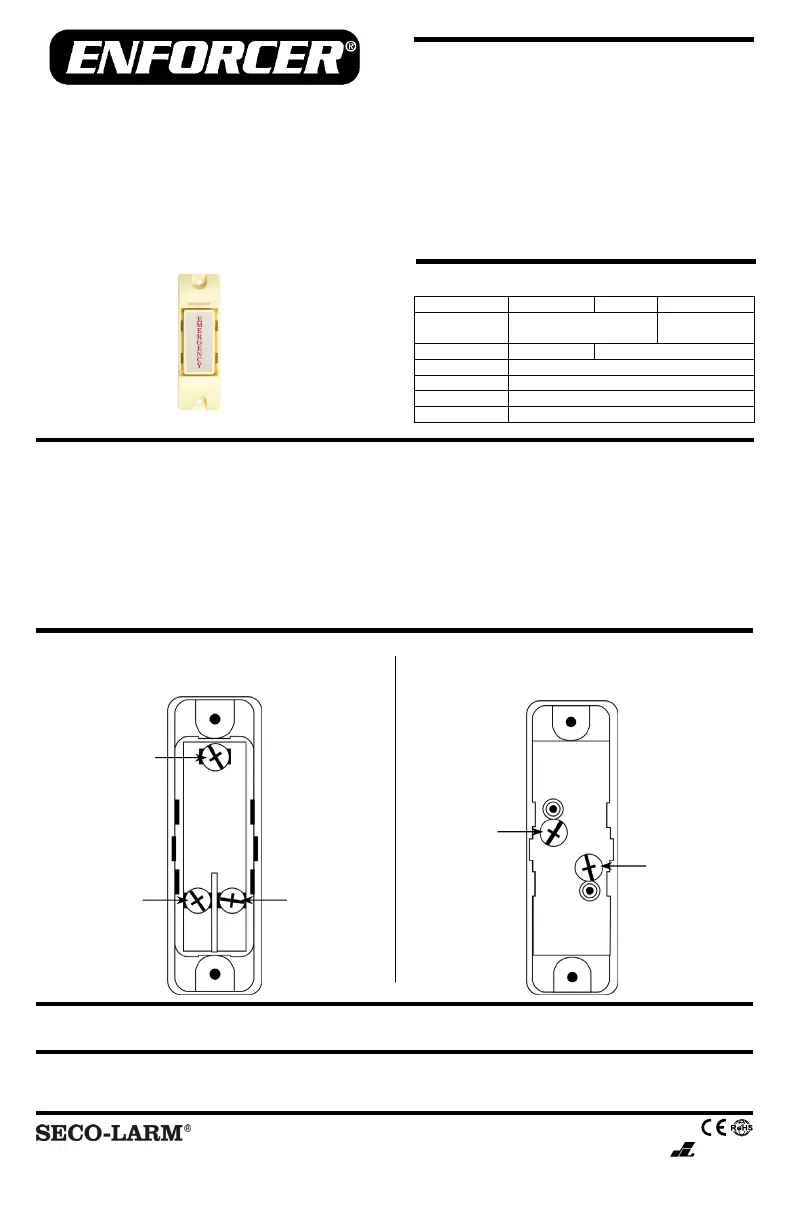

SS-075CQ / SS-075Q /

SS-075C-PEQ

Emergency / Push-to-Exit

Button

Manual

Please read this manual carefully before you begin the installation

1.Find appropriate location to mount the button.

2.Run 2 wires to the button mounting location from the source device you are trying to control.

3.Connect the 2 wires to the back of the button:

a.SS-075CQ or SS-075C-PEQ: Either NO/COM or NC/COM

b.SS-075Q: NO/COM

4.Screw the button down in the mounting location.

U.S.A., Inc.

16842 Millikan Avenue, Irvine, CA 92606 Website: www.seco-larm.com

Phone: (949) 261-2999 | (800) 662-0800 Email: sales@seco-larm.com

WARRANTY: This SECO-LARM product is warranted against defects in material and workmanship while used in normal service

for 1 year from the date of sale to the original customer.

NOTICE: The SECO-LARM policy is one of continual development and improvement. For that reason, SECO-LARM reserves the

right to change specifications without notice. SECO-LARM is also not responsible for misprints. All trademarks are the property of

SECO-LARM U.S.A., Inc. or their res

p

ective owners. Co

py

ri

g

ht © 2019 SECO-LARM U.S.A., Inc. All ri

g

hts reserved.

®

PITSW1

MI_SS-075xxxx_190213_ML.doc

x

Model SS-075C-PEQ SS-075CQ SS-075Q

Contact

NO or NC (selectable)

momentary contact

N.O.

(push-to-close)

Switch Rating 1.0A@12VDC 0.5A@12VDC

Operating voltage 12~24 VDC

Terminal Type Screw Terminal

Color Off-white

Dimensions 3"x

15

/

16

"x

5

/

8

" (76x23x15 mm)

SS-075CQ, SS-075C-PEQ SS-075Q

N.O. N.C.

COM

COM

N.O.

Large button has "Emergency" printed on face*

NO or NC (selectable) momentary contact**

Contact rated 0.5A@12VDC (1.0A@12VDC for

SS-075C-PEQ)

Screw terminals

Off-white

Dimensions: 3"x

15

/

16

"x

5

/

8

" (76x23x15 mm)

*SS-075C-PEQ has 3 labels included: choose between "Emergency", "Push to Exit", and

"Presione Para Salir,"

**SS-075Q is N.O. (push-to-close) momentary contact only
