SES X FA8LTT01 8 CH Balanced Line Level - -
Audio over Fiber Extender
FEATURES
• 8 Channel Audio over Fiber with Singlemode Connector-
• 24- Bit Digitally Encoded Analog Audio
• Transmission Distance up to 12.4 miles over Singlemode Fiber
• Adjustment Free Plug & Play Operation
• 1 Year Warranty
• FCC & RoHS Compliant

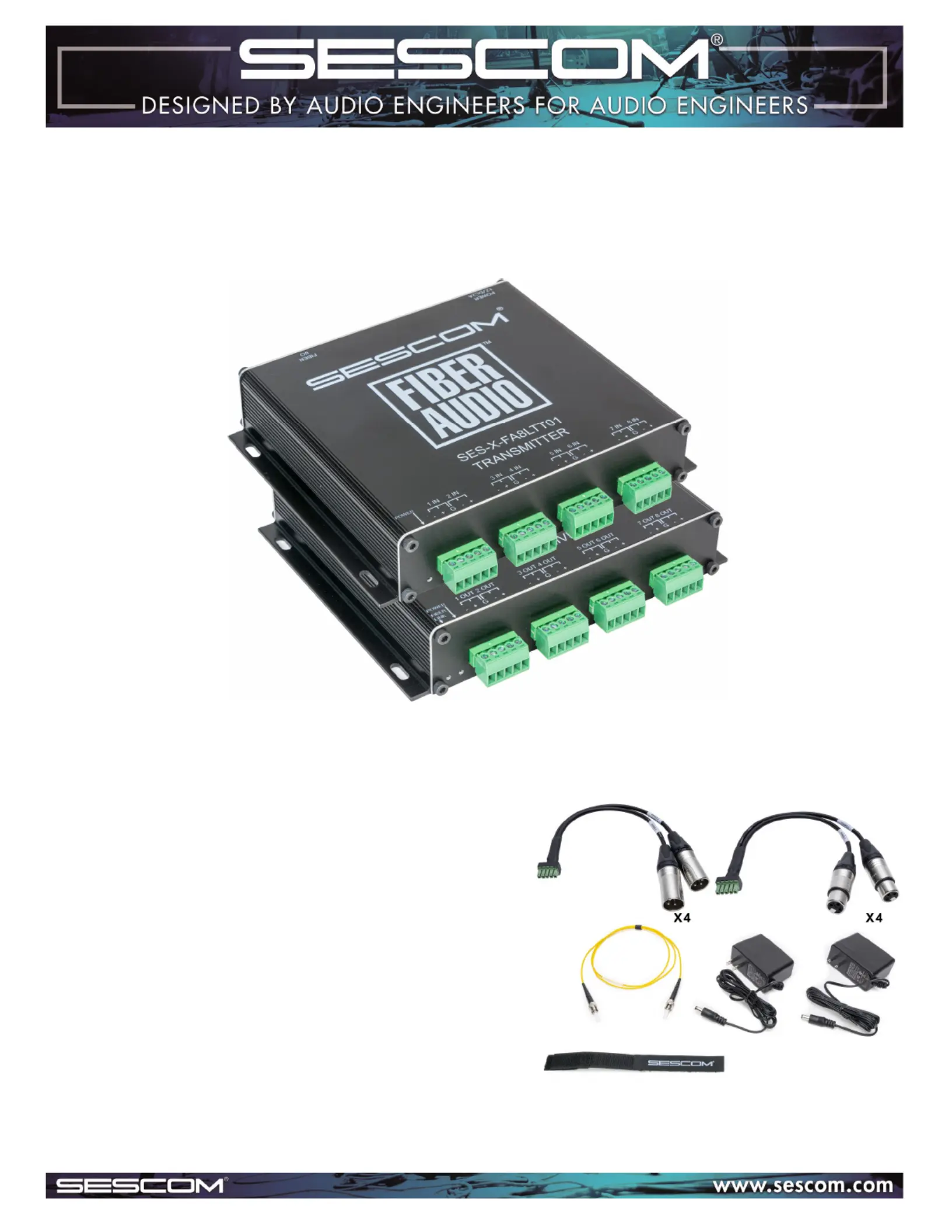

INCLUDES
• 2 12VDC/2A Power Supplies-
• 4 12 Inch Phoenix 5 Pin Break Out Adapters to 2 XLR Female Neutrik - -
Connectors
• 4 12 Inch Phoenix 5 Pin Break Out Adapters to 2 XLR Male Neutrik - -
Connectors
• 1 Meter 9u/125u Single Mode Fiber Optic Patch Cable-
Set Up Instructions
1. Secure the units in a safe location, where they will not be subject to impact and where there is room around the
unit so nothing will interfere with the fiber optic cabling causing it to bend sharply in a tight radius in any way that
can severely affect the signal transfer.
2. Use proper cable management and handling for routing fiber optic cable.
3. Carefully connect your source(s) to the transmitter input(s) and the receiver unit output(s) to your receiving device
input(s) using the XLR connectors on the transmitter and on the receiver unit.
4. CLEAN* the ST fiber optical cable contacts that will be used for connecting the Tx and Rx units and attach the fiber
cable to the ST connections and secure, as you would secure a bayonet BNC. While pressing lightly in on the
connector, twist it in a clockwise direction about 1/8 to 1/4 of a turn and then release. The connector should stay
inserted and have backwards spring pressure holding the bayonet in place.
5. Connect the included power supplies to the transmitter and receiver units, and plug them both into an AC power
source (100 240VAC 50/60Hz).-
* CLEAN: All fiber optical cable contacts require cleaning each time before inserting into a device s outputs or ’
inputs. Failure to clean the contacts can damage the unit s optics over time and can also permanently damage ’
the cable and the device.
Use cleaning kits designed specifically for fiber optics.
SES- -X FA8LTT01 AUDIO FIBER EXTENDER
SPECIFICATIONS
Unity Gain 0dB
Total Harmonic Distortion
<0.05%
Signal to Noise Ratio
> 90dB Ref. 4dBu, A Weighting
Maximum Balanced Input Signal 18dBu
Max Line Input/Output Voltage 17.4Vp -p
Opcal Wavelength 1310nm
Frequency Response 20Hz— KHz 20
Sample Rate 48KHz, 24K bit rate
Input Power 12VDC
Unit Dimensions Each Unit
6.25 x 6.25 x 1.25 inch with anges/plugs
Power Consumption <1W
Includes (2) 12VDC/2A Power Adapters

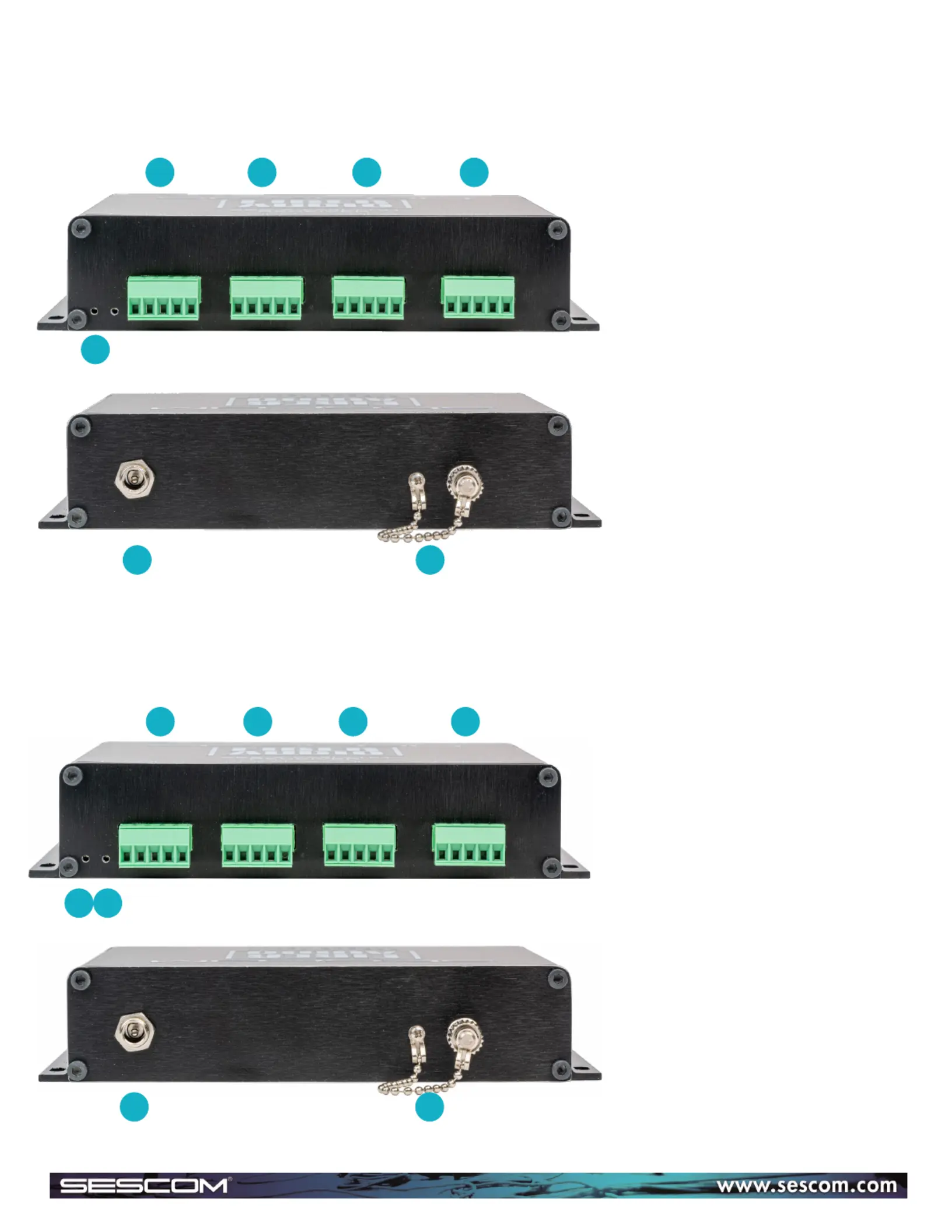

TRANSMITTER
RECEIVER
1 Power Indicator LED
2 Channel 1 Balanced Audio Input
3 Channel 2 Balanced Audio Input
4 Channel 3 Balanced Audio Input
5 Channel 4 Balanced Audio Input
6 DC Power Input Jack
7 ST Fiber I/O Port
SES- -X FA8LTT01 AUDIO FIBER EXTENDER
3 4 5
6 7
2
1
3 4 5 6
2
1
1 Fiber Link Indicator LED
2 Power Indicator LED
3 Channel 1 Balanced Audio Output
4 Channel 2 Balanced Audio Output
5 Channel 3 Balanced Audio Output
6 Channel 4 Balanced Audio Output
7 DC Power Input Jack
8 ST Fiber I/O Port
7 8
