*988-10924-001*

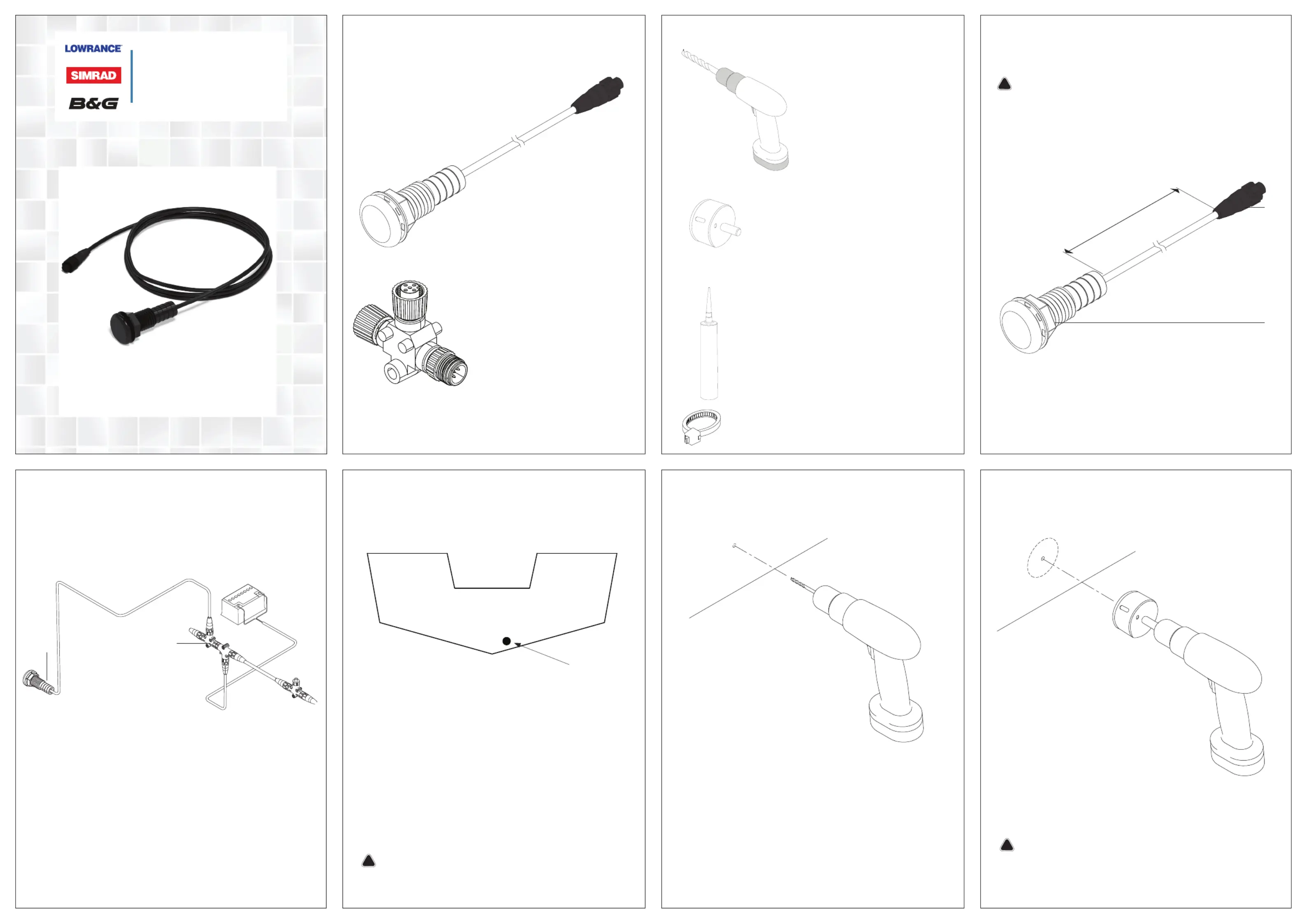

What’s in the box
Thru-Hull
Temperature Sensor
Installation Guide
Tools required Overview
Plan the installation
Example of installation
Plan the installation
Example of location
Install the Thru-Hull Temperature Sensor Install the Thru-Hull Temperature Sensor
After you’ve determined the location for the Thru-Hull
temperature Sensor, drill a 3 mm (1/8” ) pilot hole from the
inside.
The Thru-Hull Temperature Sensor requires a 27 mm (1-1/16” )
hole. Using a hole saw, drill from the outside to prevent the gel
coat from cracking on fiberglass boats.
Afterwards, clean the area around the hole with detergent or
alcohol. This will establish a good surface for the adhesive.
The Thru-Hull Temperature Sensor can be mounted in any
location on the hull, the example shown here is for a transom
mount.
Wherever you install it, make sure the temperature sensor will
be in contact with the water at all times and that it does not
interfere with the boat’s trailer.
Drill with 3 mm (1/8” ) drill bit
Hole saw 27 mm (1-1/16”)
High quality marine grade above/
below waterline caulking compound
Cable ties (optional)
Suggested
location
Transom view
The Thru-Hull Temperature Sensor converts analog temperature
data to NMEA 2000 data format.
!
You should read all of the installation instructions
before proceeding. Decide where to install all components
before drilling any holes in your vessel.
Other parts required
Thru-Hull Temperature Sensor
NMEA 2000 T-Joiner
A NMEA 2000 connector
B Thru-Hull Temperature Sensor
A Thru-Hull Temperature module
B NMEA 2000 CAN bus backbone (NMEA 2000, IEC61162-1/2)
!
The maximum hull thickness for the Thru-Hull
Temperature Sensor is 31 mm (1-1/4”).
!
Use eye and face protection when drilling the hole.
A
B
3 m
(10’)
A B
80 mm (3.15”)
20 mm (0.9”)
40 mm (1.6”)
DimensionsConnect the Thru-Hull Temperature Sensor to the network
A
B
C
D

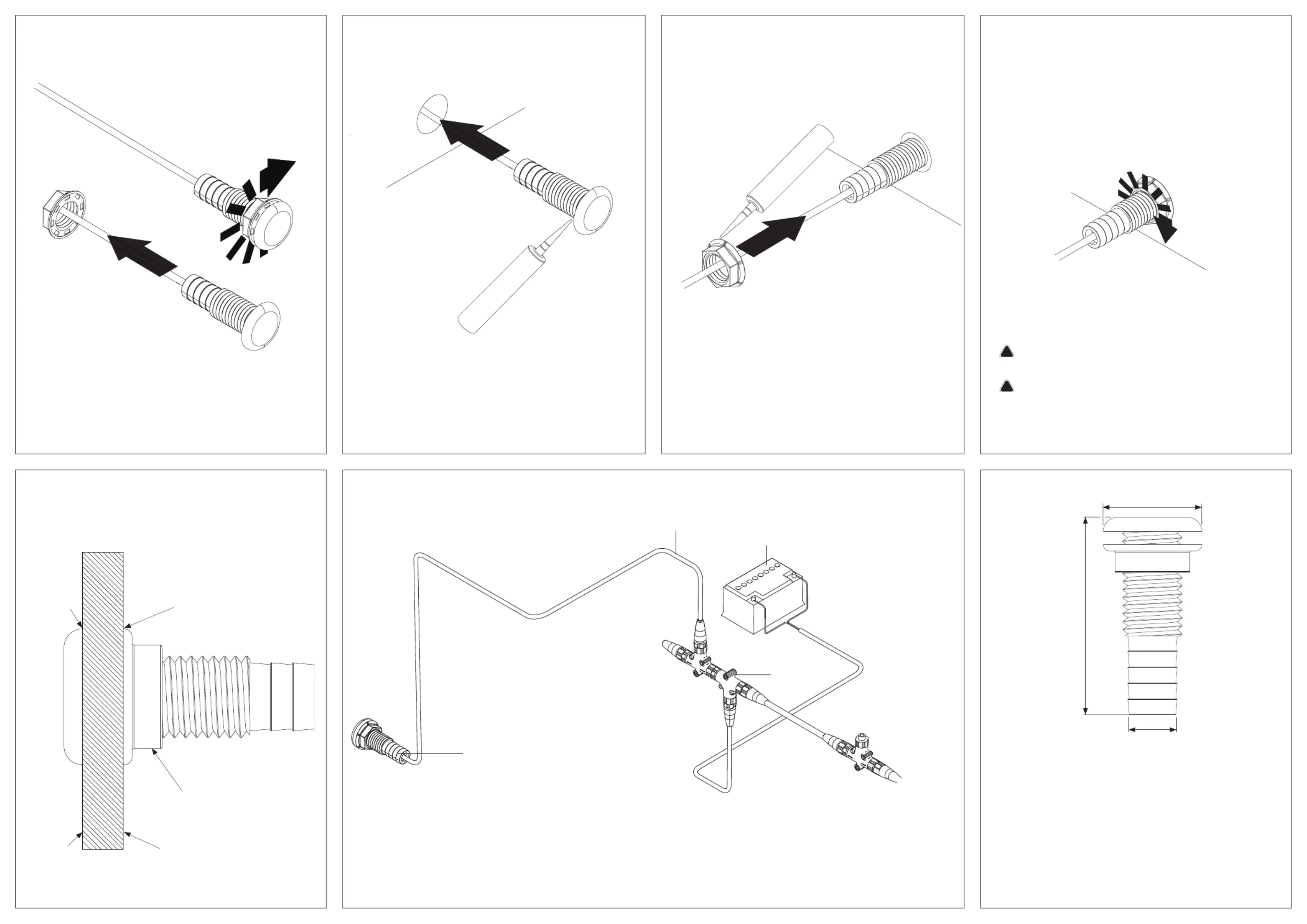

Install the Thru-Hull Temperature Sensor Install the Thru-Hull Temperature Sensor Install the Thru-Hull Temperature Sensor
Install the Thru-Hull Temperature Sensor
Cross section of the hull showing Thru-Hull Temperature Sensor
installed
Using a high quality, marine-grade above- or below-waterline
sealant/adhesive compound, apply a 3 mm (1/8” ) bead of
sealant around the lip of the housing.
Then from the outside, pass the cable through the hole and
push the housing with sealant into it. Use a twisting motion to
squeeze out excess sealant. Remove excess sealant from the
outside of the transom before it dries.
On the inside of the hull, slide the nut over the back end of the
sensor and add a 3 mm (1/8”) bead of sealant around the edge
of the hole on the inside.
Hand-tighten the nut; be careful not to over-tighten. Remove
excess sealant from the inside of the hull before it dries.
!
Do not use a wrench to tighten the nut.
!
Check for leaks immediately. Check the boat for leaks
again several times during the next 24 hours. If you notice
any leakage at all, the sensor should be re-installed with a
new coat of adhesive.
A NMEA 2000 drop cable 3 m (10 ft)
B Thru-Hull Temperature Sensor
C NMEA 2000 CAN bus backbone
D 12 V DC Power supply. Connect via a switch and 5 amp fuse
Specications
Temperature Range between -20 and 80 degrees Celsius
(4° to 176° F)
PGNs transmitted
59392 – ISO Acknowledgment
60928 – ISO Address Claim
126996 – Product Information
65285 - Temperature with Instance
Sealant Sealant
Nut
Inner hull
Outer hull
Install the Thru-Hull Temperature Sensor
Remove the nut from the sensor, cable and the red connector.
