4. Switch to the interface of the center of gravity

weight

Total Weight 0g

Caution: Check that the plane is leveled!

(Unit : mm)

1. Connecting the modules

2. Click to tare

3. Place the model airplane on the weighing modules and make sure its wheels are located

in the middle.

Center of Gravity Adjustment

CG GAUGE

Instruction Manual

v1.0

SK - 500039

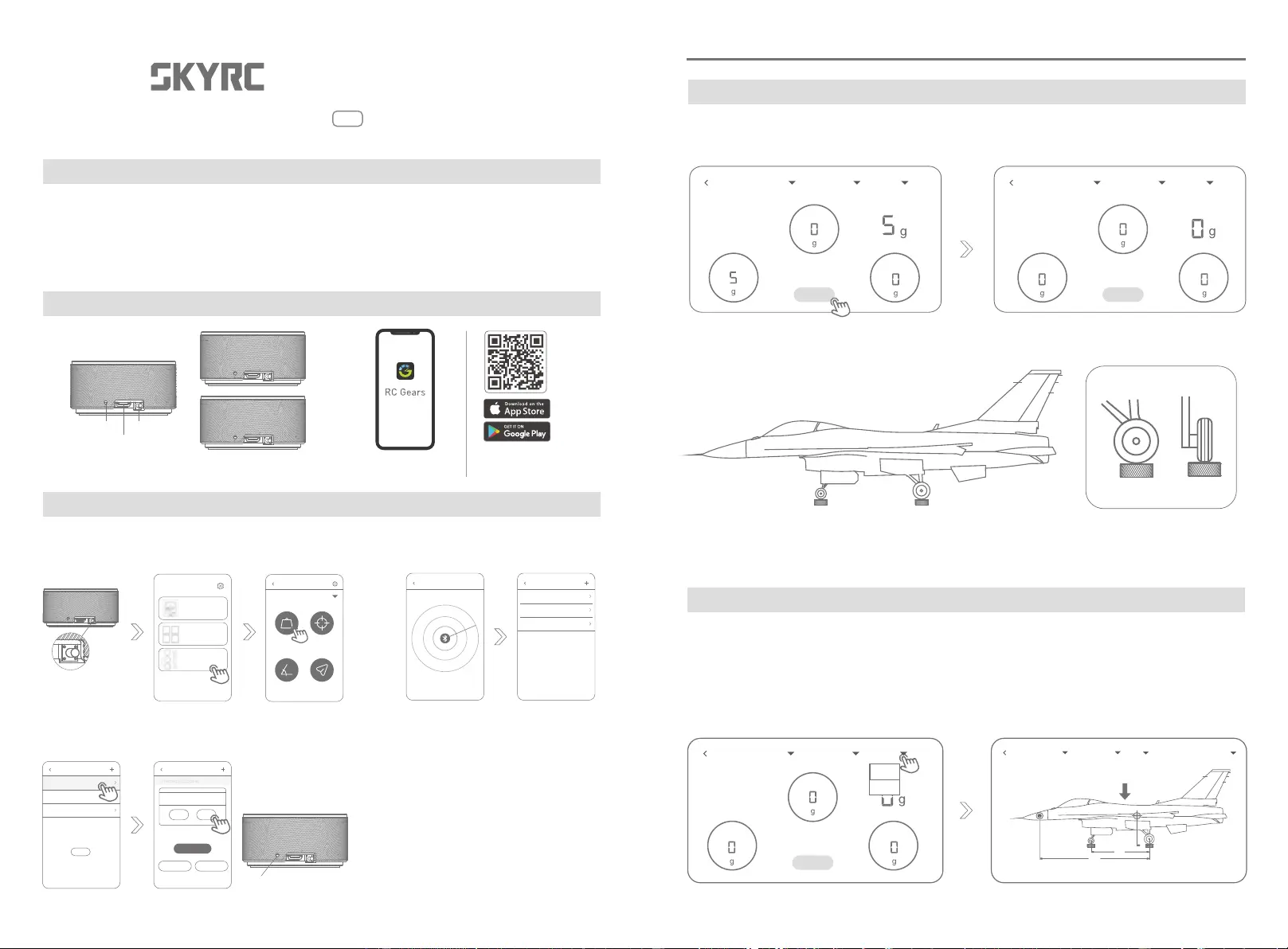

1. SKYRC CG Gauge

Congratulations on the purchase of the SkyRC CG Gauge!

SkyRC CG Gauge consists of three weighing modules, which are wirelessly controlled through

Bluetooth. It measures the model airplane's weight and center of gravity with a maximum load of 20kg.

Download the RC Gears app to get started to measure the real-time measuring data.

1. Please enable Bluetooth on your smartphone and open

the app. Long press the switch to turn on the modules.

3. Assign the modules to Nose/tail, Main-left wheel, Main-right wheel. The corresponding

module flashes in blue when you are setting it in the app.

2. Search to connect the

modules to the app.

RC GearsCG Gauge *3pcs

LED Indicator

Switch

Charging Port

Connecting

What is inside the box

Introduction

Weight CG

Angle Throw

GNSS Performance Analyzer

GSM020

Corner Weight System

SCWS2000

Center of Gravity Gauge

CGG-020 & SAM-020

RC Gears

Unassigned Scale

进入

Unassigned Scale

未分配位置

进入

Position Nose/tail wheel

Nose/tail wheel

Main-left wheel Main-right wheel

* Long press the switch

to turn on

* The module flashes in blue

Model 1

Name

Center of Gravity Gauge

Searching....

CG-meter

CG-meter CG-meter

SKYRC CG Gauge Instruction Manual

SKYRC CG Gauge 2.

1. Connecting the modules

2. Click to tare

2. Place the model airplane on the weighing modules and

make sure its wheels are located in the middle.

4. Read the measuring data

Weighing

Nose/tail wheel

Total Weight

Main-right wheelMain-left wheel

Nose/tail wheel

Total Weight

Main-right wheelMain-left wheel

ZERO

Model 1 Taildragger Weight

Name

Model 1 Taildragger Weight

Name

Back OK

ZERO

Model 1 Taildragger Weight

Name

Model 1 Taildragger CG CG parameter setting

Name

ZERO

* Please scan the QR code

to download the RC Gears app

from App Store or Google Play!

Nose/tail wheel

Main-right wheelMain-left wheel

Main-left wheel

Total Weight:

Caution: Check that the plane is leveled!

(Unit : mm)

3. SKYRC CG Gauge

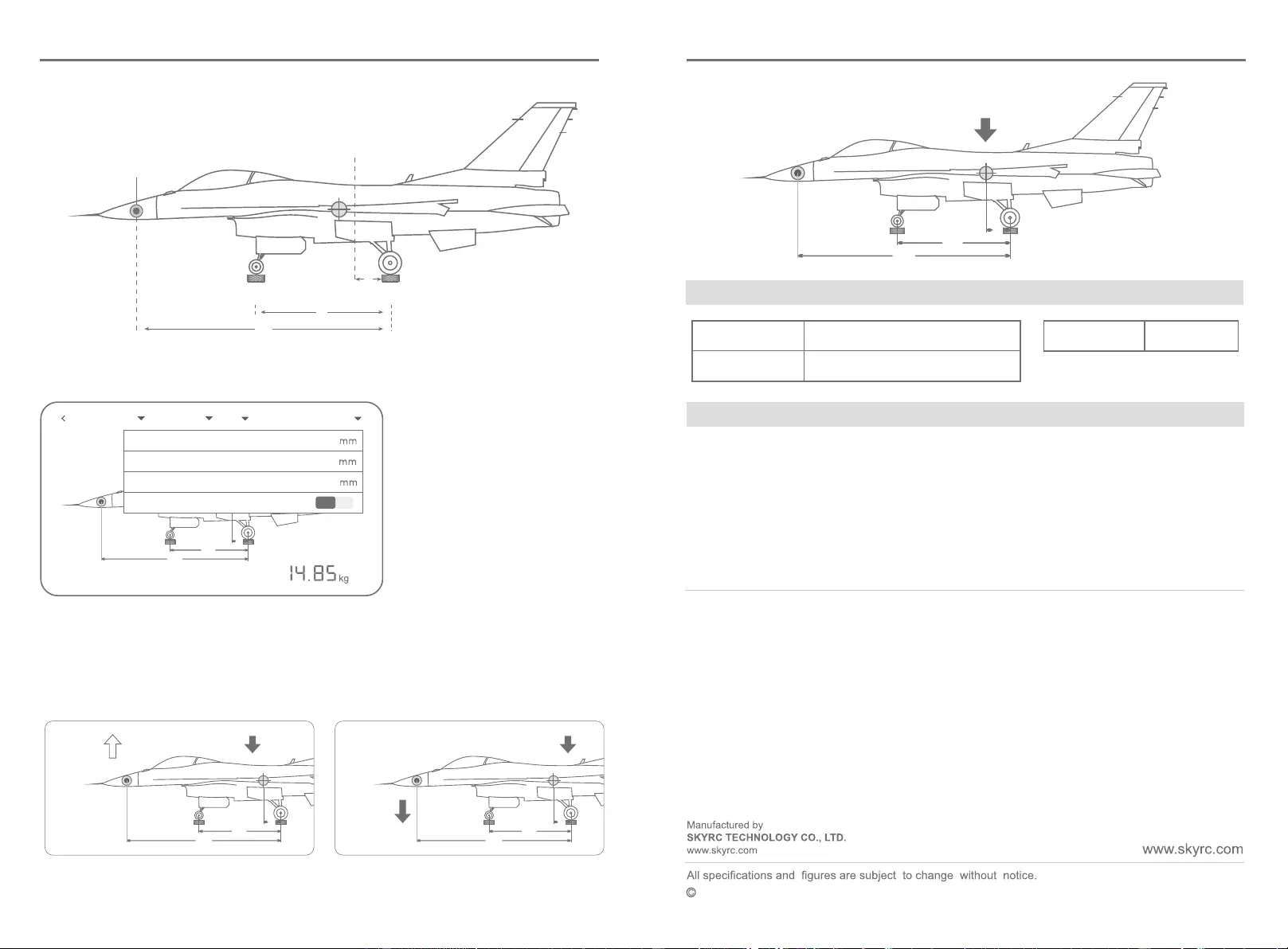

5. Manually measure the distance from the front wheel to the rear wheel, the

center of gravity to the rear wheel, and the counterweight to the rear wheel.

6. Enter the above-required value

Front wheel Rear wheel

Center of gravity

Counterweight

Wheelbase

Distance between CG and Main Wheel centerline

Distance form Mains to Weight Placement Point

Correction Point

Nose Tail

Model 1 Taildragger CG CG parameter setting

Name

a ——

b ——

c ——

645

130

1200

SKYRC CG Gauge 4.

7. Read the measuring data：

On the nose or tail, there will be arrows indicating to increase or reduce weight. For example, on the

nose, there is a solid arrow indicating to add 200g, which means that the model aircraft needs 200g

weight to add at the nose to meet the requirements of the center of gravity.

8. As per the measuring results, add or lose the

weight at the counterweight respectively!

1200

645

130

1200

645

130

Lose weight at the counterweight position Add weight at the counterweight position

1200

645

130

SKYRC CG Gauge Instruction Manual SKYRC CG Gauge Instruction Manual

2021.05

Working Voltage: 3.4-4.2V

Working Current: <15mA

Interface: Type C

Input Voltage: 5V

Input Current: 200-300mA

Low-voltage Protection:

<3.4V (Flashes Red)

Load: max. 20kg/module

Accuracy: ±3g (Measuring)

Accuracy: 1g/0.01oz (Display)

Working Temperature: 0

C-40

Working Humidity:

5%-90% (No Condensation)

Storage Temperature: -10

C-50

Storage Humidity:

1%-75% (No Condensation)

Size: D66*33mm

Weight: ≈160g

We guarantee this product to be free of manufacturing and assembly defects for a period of one year from the time

of purchase. The warranty only applies to material or operational defects, which are present at the time of

purchase. During that period, we will repair or replace free of service charge for products deemed defective due

to those causes. This warranty is not valid for any damage or subsequent damage arising as a result of misuse,

modification or as a result of failure to observe the procedures outlined in this manual.

Note:

The warranty service is valid in China only.

If you need warranty service overseas, please contact your dealer in the first instance, who is responsible for

processing guarantee claims overseas. Due to high shipping cost, complicated custom clearance procedures to

send back to China. Please understand SkyRC can't provide warranty service to overseas end user directly.

If you have any questions which are not mentioned in the manual, please feel free to send email to info@skyrc.com

Constant Blue

Flashing Blue

App is connected and working

Standby, waiting to be connected

Flashing Red

Charging

Wheelbase

Distance between CG and

Main Wheel centerline

Distance form Mains to

Weight Placement Point

Lose XX g add XX g

7504-1489-01

Specifications

LED Indicator

WARRANTY AND SERVICE
