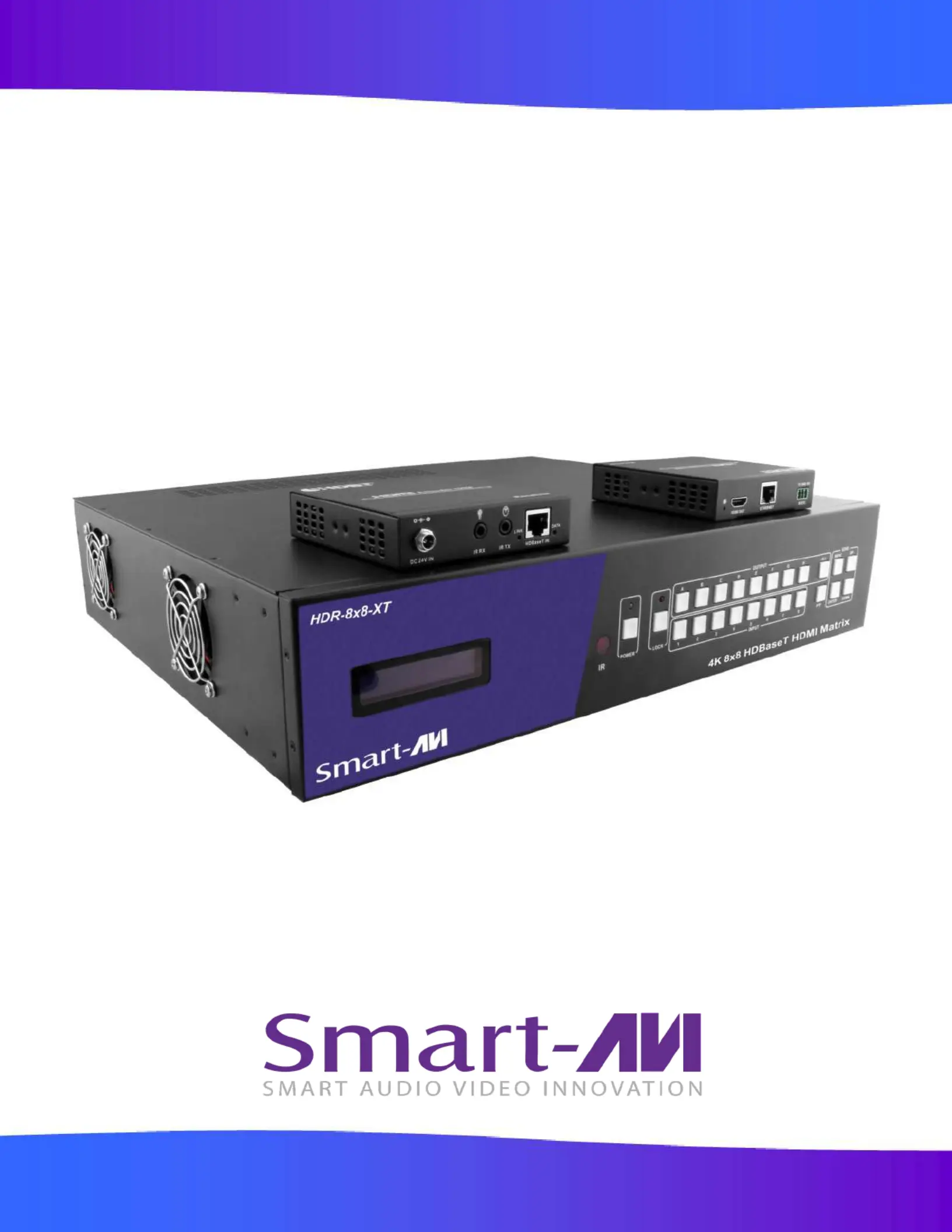

Made in U.S.A. www.SmartAVI.com 1- -AVI-2131 800
HDR-8X8- XT
User Manual
Distribute 8 4K HDMI sources to 8 local HDMI monitors and 8 remote HDMI
displays (16 Total) via HDBaseT with IR, and TCP/IP control support
4K Ultra-HD 8X8 HDBaseT HDMI Matrix with POE

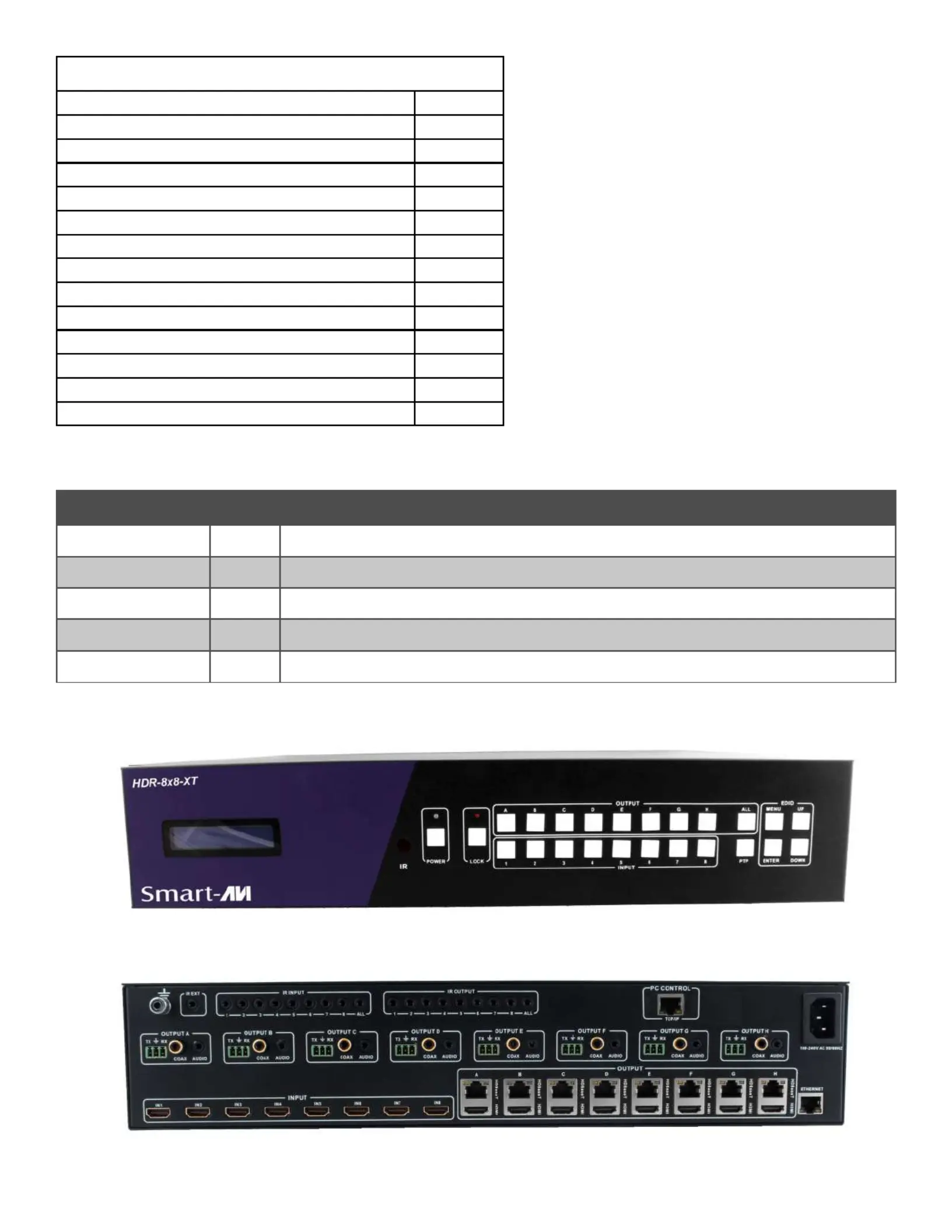

2
TABLE OF CONTENTS
WHAT'S IN THE BOX? 2
INTRODUCTION 3
FEATURES 3
APPLICATIONS 3
TECHNICAL SPECIFICATIONS 4
HARDWARE INSTALLATION 5
FRONT PANEL FUNCTIONS 6
REAR PANEL 7
REMOTE CONTROL 8
CONTROL VIA ETHERNET 9-10
EDID 11
HDBaseT RECEIVER 12
IR CONTROL SYSTEM 13
LIMITED WARRANTY STATEMENT 14
Figure 2-1
Figure 2-2
PART NO. QTY DESCRIPTION
HDR-8x8-XTS 1 -Ready 8x8 HDMI Matrix Switch with CAT5/6/7 HDBaseT 4K
CCPWR06 1 6' Power Plug Cable
RM-HDR8X8XT 1 IR Remote Control
BRK-HDR8X8XT 2 Rack mount brackets
1 Quick Start Guide
WHAT’S IN THE BOX?
* Plug in IR emitters and IR eyes for bi-directional remote control of connected devices are sold separately.
3
INTRODUCTION
The HDR-8x8-XT with simultaneous CAT5e/6/7 and HDMI outputs connects eight HDMI input sources to
sixteen displays. This matrix features eight mirrored HDMI outputs, providing 8 HDMI output ports and 8
CAT-Cable output ports simultaneously. The HDR-8x8-XT supports the transmission of video (resolutions
up to 1080p Full HD and 4Kx2K@30Hz) and supports high resolution digital audio formats such as LPCM
7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio. Connect an HDBaseT Receiver (Sold
Separately) to each of the CAT-Cable outputs to extend the HDMI signal up to 328ft/100m for multi-room
connectivity. The HDR-8x8-XT works with Blu-Ray players, Set-Top boxes, Home Theater PCs, and game
consoles that connect to an HDMI display. Any source is accessible at all times by any display through the
supplied IR Remote Control, TCP/IP, or by using the selection buttons on the front panel. This device sup-
ports High Definition Audio, and 3D signal compatibility.
FEATURES
HDMI input supports: HDMI2.0, HDCP 2.2 and DVI1.0 compliant
Supports HDMI 3D pass-through
Supports resolutions from VGA~WUXGA and HD resolutions from 480i~1080p~4Kx2K@30 depending
on the EDID settings
Supports transmission distances up to 328ft/100m through CAT5e/6/7 cable
Supports Power Over Ethernet (POE) function
Supports simultaneous HDMI and CAT5e/6/7 outputs
Supports wideband IR(30-60Khz) matrix system, IR transport (Plug in IR emitters and IR eyes are sold
separately)
Channels can be forward or backward. And supports GLOBAL IR input and output. (Plug in IR emitters
and IR eyes are sold separately)
Supports remote control, front panel buttons control and TCP/IP Control
Supports smart EDID management
Supports Digital Audio and stereo audio outputs
Support bi-directional IR control (Plug in IR emitters and IR eyes are sold separately)
Supports HDBaseT LAN Serving function
Supports LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS- HD
Master Audio transmission
APPLICATIONS
Sports Arenas
Concert Halls
Cinemas & Multiplex Theaters
Convention Centers
Hotel Lobbies
Transportation Hubs (Airports, Train Stations)
