Seite 1/13
Made in U.S.A. www.SmartAVI.com 1-800-AVI-2131

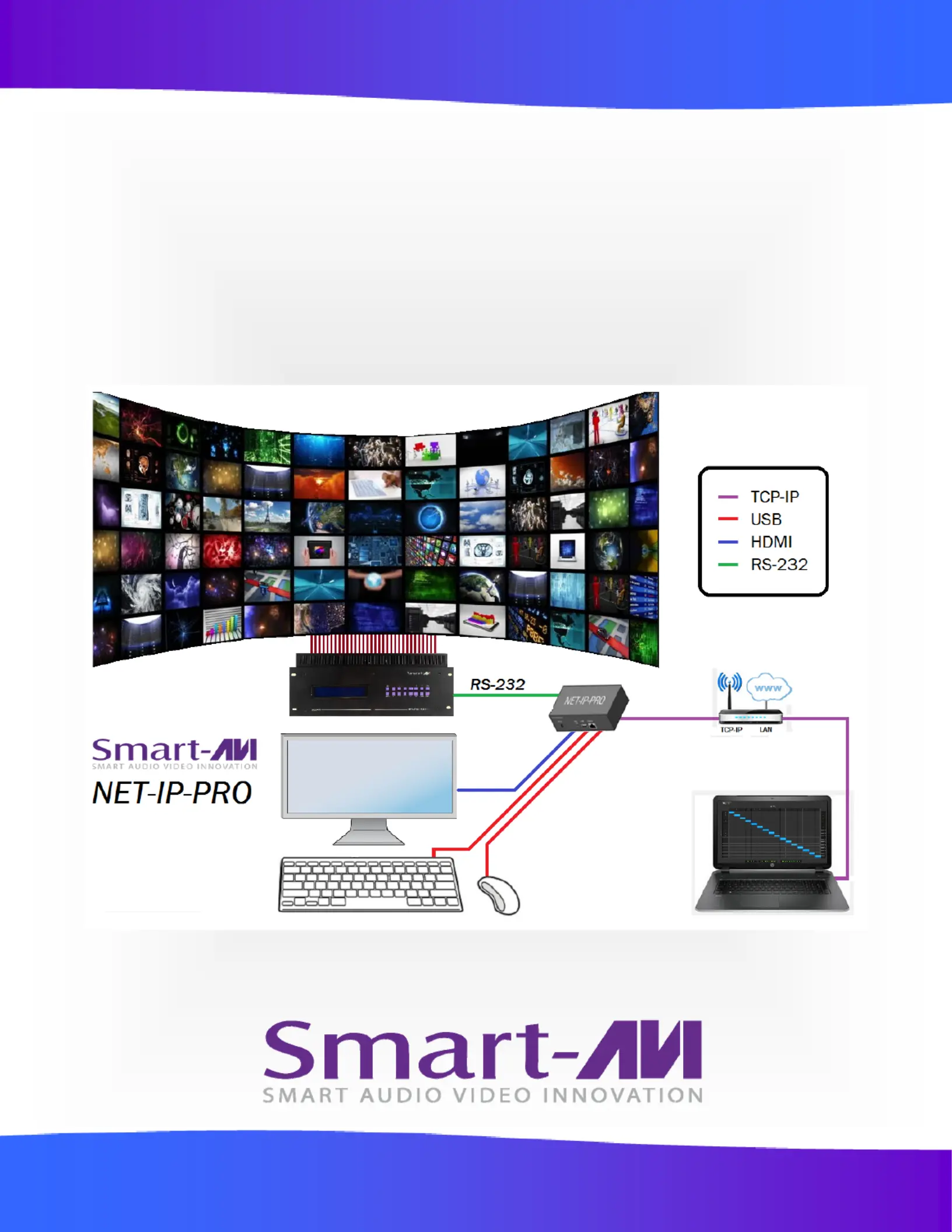

NET‐IP‐PRO
UserManual
Remo
Remo
Remo
RemoRemote and/or local contr
te and/or local contr
te and/or local contr
te and/or local contrte and/or local control of
ol of
ol of
ol ofol of your Smar
your Smar
your Smar
your Smar your Smart-
t-
t-
t-t-A
A
A
AAVI product operat
VI product operat
VI product operat
VI product operatVI product operations locally and/or o
ions locally and/or o
ions locally and/or o
ions locally and/or oions locally and/or over a
ver a
ver a
ver a ver a
local area network or via the Interne
local area network or via the Interne
local area network or via the Interne
local area network or via the Internelocal area network or via the Internet from an
t from an
t from an
t from ant from anywhere in the world
ywhere in the world
ywhere in the world
ywhere in the world ywhere in the world
W
W
W
WWeb-Based and/or Local Contr
eb-Based and/or Local Contr
eb-Based and/or Local Contr
eb-Based and/or Local Contreb-Based and/or Local Control f
ol f
ol f
ol fol for Smar
or Smar
or Smar
or Smaror Smart-
t-
t-
t-t-A
A
A
AAVI Pr
VI Pr
VI Pr
VI PrVI Products
oducts
oducts
oducts oducts
2
TABLE OF CONTENTS
What’s in the box?
2
Introduction
3
Features
3
Technical specifications
3
Connecting to the NET-IP-PRO
4
Initial Setup
5-6
Controlling the NET-IP-PRO via HTTP — Matrix Menu
8
Controlling the NET-IP-PRO via HTTP — Macros
9
Controlling the NET-IP-PRO via HTTP — Device Configuration Menu
9
Controlling the NET-IP-PRO via TELNET
10
Upgrading the NET-IP-PRO
10
Limited warranty statement
12
Applications
3
Controlling the NET-IP-PRO Via Local Keyboard / Mouse
11
WHAT'S IN THE BOX?
PART NO. QTY DESCRIPTION
NET-IP-PRO 1 Ethernet / RS-232 Server
PS5VDC2A 1 5VDC2A Power Supply
CCRS232-X 1 RS-232 Serial male to male crossed cable
1 Quick Start Guide
Figure 2-1
3
TECHNICAL SPECIFICATIONS
INTRODUCTION
The NET-IP-PRO is an RS-232 control module that allows most SmartAVI switching matrixes to be con-
trolled remotely via HTTP or TELNET. Manage the switching functions of your matrix with ease from any-
where in the world. With the NET-IP-PRO you can save up to 10 preset input/output configurations for
easy access. TELNET access provides transparent command control of your matrix, perfect for use with
automated third-party control software. You can also connect a monitor to the HDMI port and a keyboard
and mouse to the USB ports on the NET-IP-PRO and control your SmartAVI device.
FEATURES
Supports HTTP and TELNET control
10/100 Ethernet Interface
Up to 10 user-definable configurations
Password Protected
Up to 5 Users can Control the Matrixes
IP Configuration via TCP/IP and RS-232
Flexible control of several types of matrixes
APPLICATIONS
Wall Displays
Digital Signage
Airports
Dealer Rooms
Control Rooms
Audio/Visual Presentations
Shopping Centers
Security
Point-of-Sale
Hotels/Resorts
Power Supply
5VDC2A
Dimensions 5”W x 3.13”D X 1.75”H
Weight .35 lbs.
Operating Temp. 32 to 131°F (0 to 55 °C)
Storage Temp. -4 to 185 °F (-20 to 85 °C)
Humidity Up to 95% (no condensation)
USB
(4) USB Type A 2.0, 1.1, and 1.0
HDMI
(1) HDMI Type A 19-pin Female
Ethernet
(1) RJ45 (HDBaseT)
RS-232
(1) DB9 Female
Audio, Non functional
(1) 3.5 mm (For future use)
Figure 3-1
