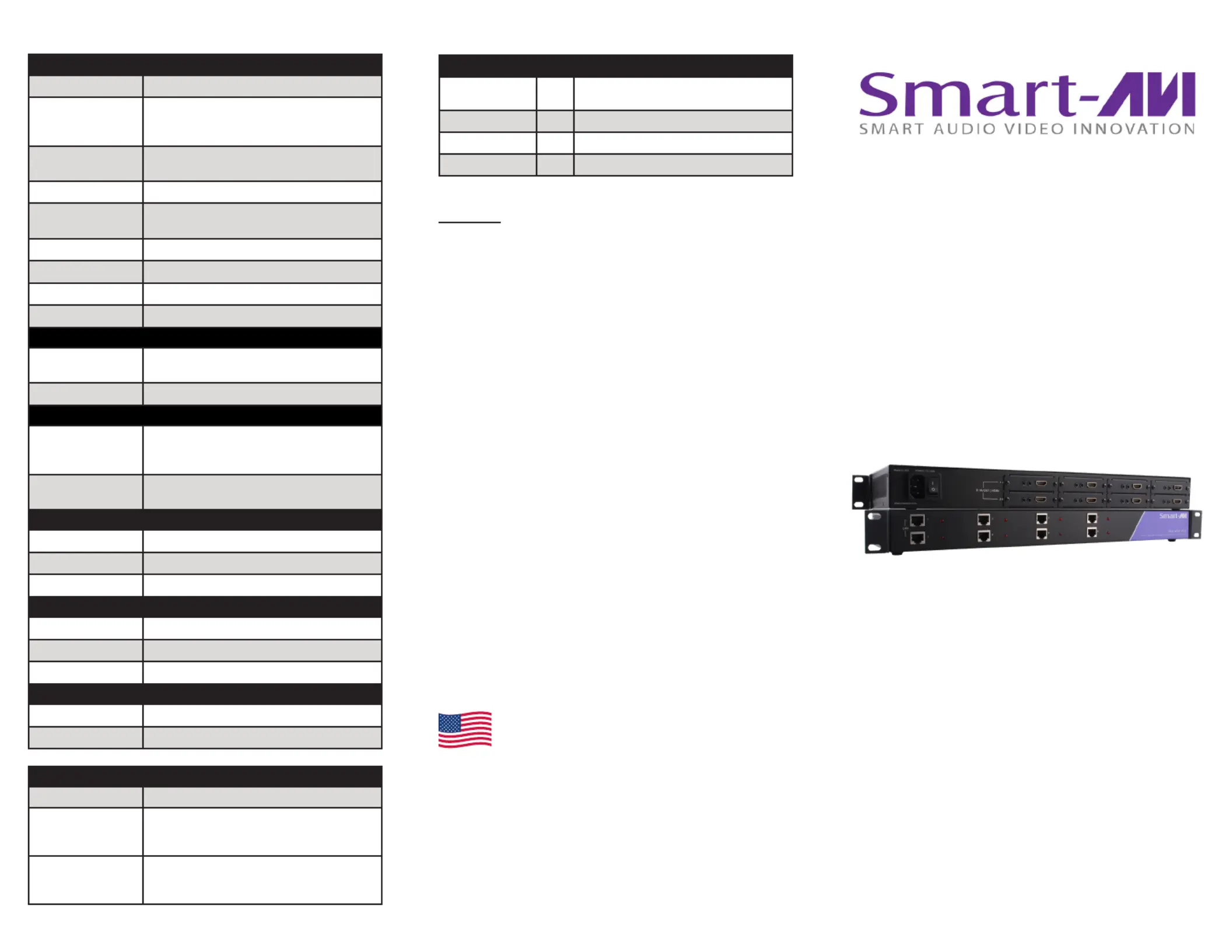

RK8-HDX-POE

Consolidate up to eight HDMI extenders

in one powered rack unit

to transmit HD signals using Cat5e/6

8-Port HDMI, IR and Power Extender

Rack Over Cat5e/6

WWW.SMARTAVI.COM

VIDEO

FormatHDMI 1.3 (HDCP Compliant)

Resolutions800x600, 1024x768, 1280x1024, 1366x768,

1920x1200, 480i, 720p, 1080i, 1080p,

4K x 2K @30Hz @24bit

Transmission

Distance

70 meters

Color Depth Deep Color 36/30/24 Bit at 1080p and 3D

Audio Format Up to PCM 8 channel, Dolby Digital TrueHD,

and DTS-HD Master Audio

IR Range38kHz, 56kHz

Video Bandwith 10.2Gbps

Input Video Signal 1.2 Volts P-P

Input DDC Signal 5 Volts (TTL)

I/O CONNECTOR (Transmitter)

Input8 x (HDMI-A) 19PIN Socket;

8 x 3.5mm Jack for IR Receiver

Output8 x RJ45 Jack

I/O CONNECTOR (Receiver)

Input1 x RJ45 Jack;

1 x 3.5mm Jack for IR Receiver;

5 x 2.5mm

Output1 x 3.5mm Jack for IR Emitter;

1 x HDMI-A 19PIN Socket

MECHANICAL - Transmitter

Dimensions17”H x 6”W x 1.7”D

Weight3.26 lbs

Power110/220V

ENVIRONMENTAL

Operating Temp.+0 to +40° C (+32° to 104° F)

Humidity10% to 85% (Non-condensing)

Storage Temp.-20° to +60°C (-4° to +140° F)

SAFETY

CerticateFCC, CE, RoHS

Power AdapterUL, CE, FCC, RoHS

ORDER INFO

Part No.Description

RK8-HDX-POE-S 8-Port HDBaseT HDMI and IR Rack Mountable

Extender Transmitters over a Single Cat5e/6

Cable. Includes: [RK8- HDX-POE and CCPWR06]

HDX-POE-RX-S HDMI and IR Receiver over a Single CAT5e/6

Cable. Includes: [HDX-POE-RX

and PS12VD2A-WLLMNT]

Technical Specications

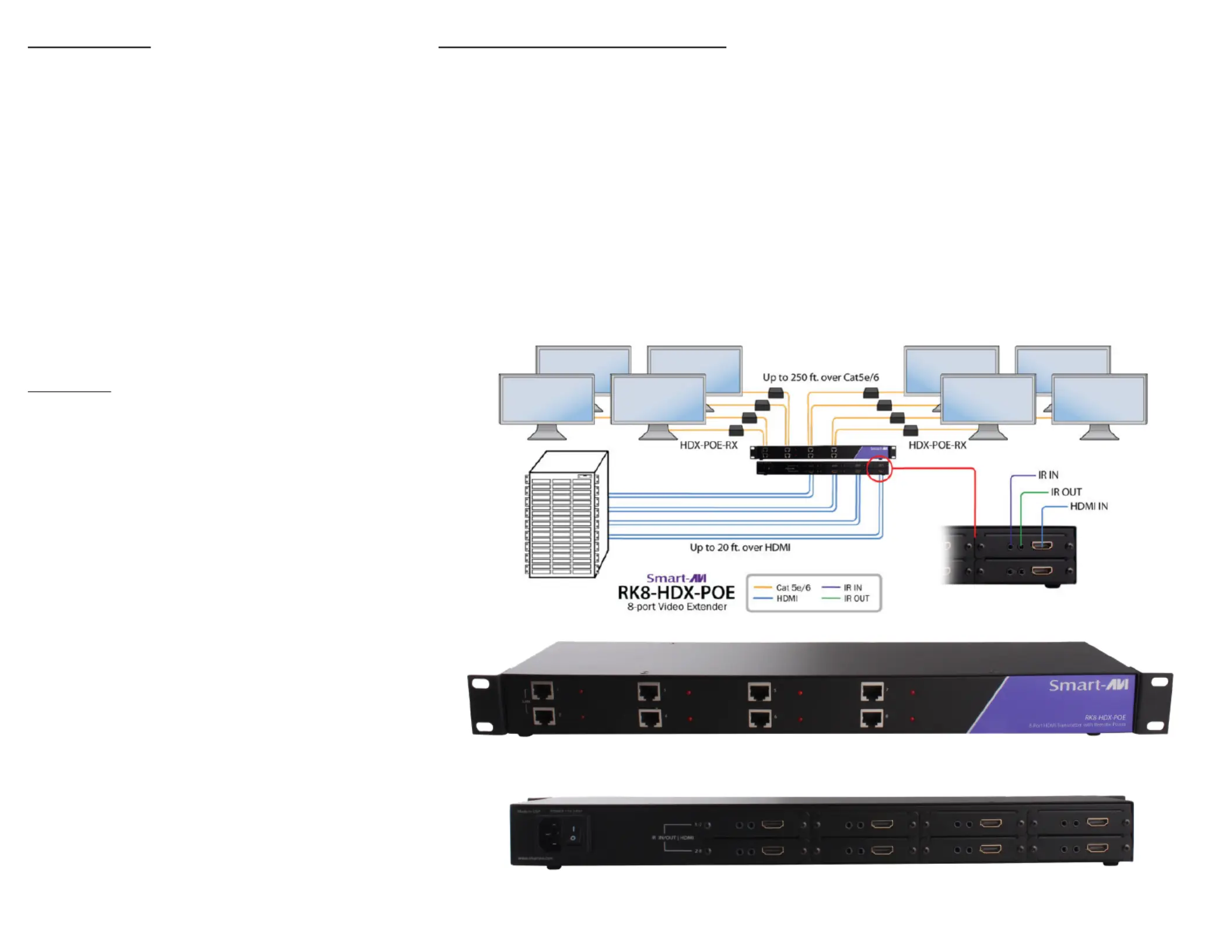

Quick Start Guide

Designed and Manufactured in the USA

Tel: 800.AVI.2131 • 818.503.6200

2455 W Cheyenne Ave, Suite 112

North Las Vegas, NV 89032

PART NO.QTYDESCRIPTION

RK8-HDX-POE-S1

8-Port HDBaseT HDMI and IR Rack

Mountable Extender Transmitters.

HDX-POE-RX-S1HDMI and IR Receiver.

Power Supply2PS12V2A-WLLMNT

1Quick Start Guide

What’s in the Box?

Notice

The information contained in this document is subject

to change without notice. SmartAVI makes no

warranty of any kind with regard to this material,

including but not limited to, implied warranties of

merchantability and tness for particular purpose.

SmartAVI will not be liable for errors contained herein

or for incidental or consequential damages in

connection with the furnishing, performance or use of

this material.

No part of this document may be photocopied,

reproduced, or translated into another language

without prior written consent from SmartAVI

Technologies, Inc.

20191024
