Seite 1/12

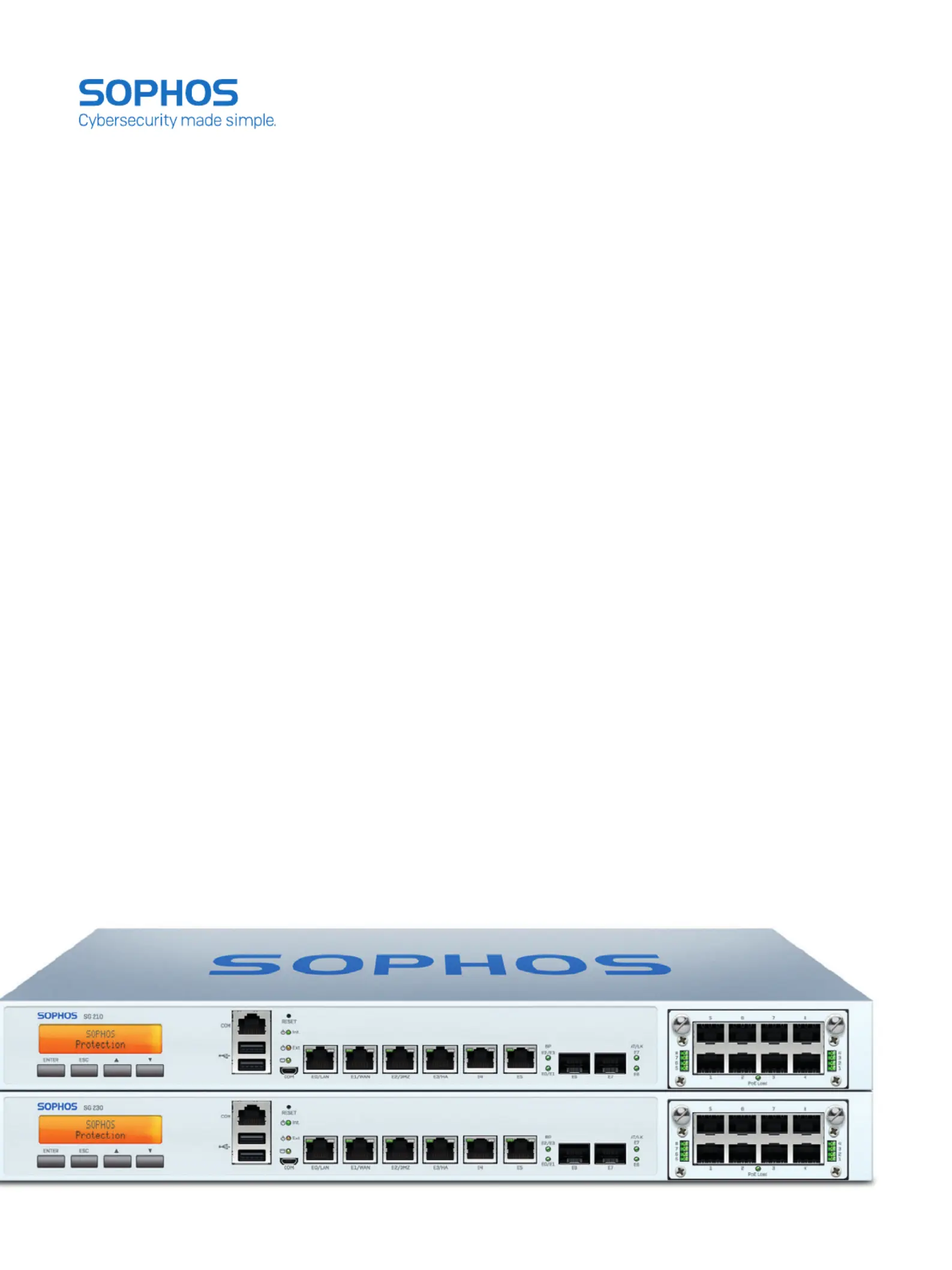

Operating Instructions

SG 210 , SG 230 Rev. 3 Rev. 2

1SG 210 Rev. 3, SG 230 Rev. 2

Operating Instructions

Foreword

We are pleased to welcome you as a new customer of our Sophos SG appliances.

To install and conﬁgure the hardware appliance you can use the following

documents:

ÌHardware Quick Start Guide: Connection to the

system peripherals in a few steps

ÌOperating Instructions: Notes on the security and

commissioning of the hardware appliance

ÌAdministration Guide: Installing and conﬁguring the software appliance

The Hardware Quick Start Guide and the Safety Instructions are also delivered

in printed form together with the hardware appliance. The instructions must be

read carefully prior to using the hardware and should be kept in a safe place.

You may download all user manuals and additional documentation from the

support webpage at: sophos.com/support

Security Symbols

The following symbol and its meaning appears in the Hardware Quick Start

Guide, Safety Instructions and in these Operating Instructions.

Caution and Important Note. If these notes are not correctly observed:

ÌThis is dangerous to life and the environment

ÌThe appliance may be damaged

ÌThe functions of the appliance will be no longer guaranteed

ÌSophos shall not be liable for damages arising from a

failure to comply with the Safety Instructions

Designed Use

The hardware appliances are developed for use in networks. The SG 210/230

models may be operated as a standalone appliance. The hardware appliance can

be used in commercial, industrial and residential environments.

The SG 210/230 models belongs to the appliance group A.

The hardware appliance must be installed pursuant to the current installation

notes. Otherwise failure-free and safe operation cannot be guaranteed. The EU

declaration of conformity is available at the following address:

Sophos Technology GmbH

Amalienbadstr. 41/Bau 52

76227 Karlsruhe

Germany

2SG 210 Rev. 3, SG 230 Rev. 2

Operating Instructions

CE Labeling, FCC and Approvals

The SG 210/230 appliances comply with FCC Class A, CE, C-Tick, VCCI and UL.

Important Note: For computer systems to remain CE and FCC compliant, only CE

and FCC compliant parts may be used. Maintaining CE and FCC compliance also

requires proper cable and cabling techniques.

Operating Elements and Connections

SG 210 Rev. 3 Rev. 2, SG 230

1 x COM

(RJ45)

2 x

USB 3.0

2 x GbE SFP

– ﬁxed

6 x GbE copper – ﬁxed.

Incl. 2 bypass pairs

(ports E0/1 and E2/3)

Navigation

for LCD

1 x expansion bay

(shown here with optional

FleXi Port module)

Micro USB

Multi-function

LCD display

SG 210/230 Back

1 x

USB 3.0

Power supply

Power switch

1 x

HDMI

Connector for optional

PoE Power Module

Connector for optional 2nd

external power supply

* The displayed front image is of SG 230 device. The SG 210 device may vary slightly.

Produktspezifikationen

Marke:	Sophos
Kategorie:	Firewall (Hardware)
Modell:	SG 230
Gewicht:	5100 g
Übertragungstechnik:	Kabelgebunden
AC Eingangsspannung:	90-264 V
AC Eingangsfrequenz:	50 - 60 Hz
Eingebautes Display:	Ja
Anzahl USB 2.0 Anschlüsse:	1
Betriebstemperatur:	0 - 40 °C
Relative Luftfeuchtigkeit in Betrieb:	10 - 90 %
Zertifizierung:	CE, FCC Class A, CB, VCCI, C-Tick, UL, CCC
Display:	LCD
Stromverbrauch (Standardbetrieb):	20 W
WAN Port:	Ethernet (RJ-45)
Temperaturbereich bei Lagerung:	-20 - 80 °C
Rack-Einbau:	Ja
Formfaktor:	1U
Anzahl Gigabit Ethernet (Kupfer) Anschlüsse:	6
Abmessungen (BxTxH):	438 x 292 x 44 mm
USB 3.2 Gen 1 (3.1 Gen 1) Anzahl der Anschlüsse vom Typ A:	2
Anzahl VGA (D-Sub) Anschlüsse:	1
Wärmeableitung:	69 BTU/h
Speichermedien Typ:	SSD
Firewall Durchsatz:	13000 Mbit/s
VPN Durchsatz:	2000 Mbit/s
Gleichzeitige Verbindungen:	4000000
Maximum firewall Verbindungen pro Sekunde:	70000
IPS/IDS Durchsatz:	3000 Mbit/s
VPN-Durchsatz:	2 Gbit/s
Firewall-Durchsatz:	13 Gbit/s
