Seite 1/1

Do not spec or install speaker near support beam, ventilation duct or

other structure that may interfere with speaker function or dispersion.

Warning Warning

SoundTube speakers must be installed by a professional audio installer/contractor. For safety and for

optimum audio performance, installer must follow all directions issued by SoundTube Entertainment.

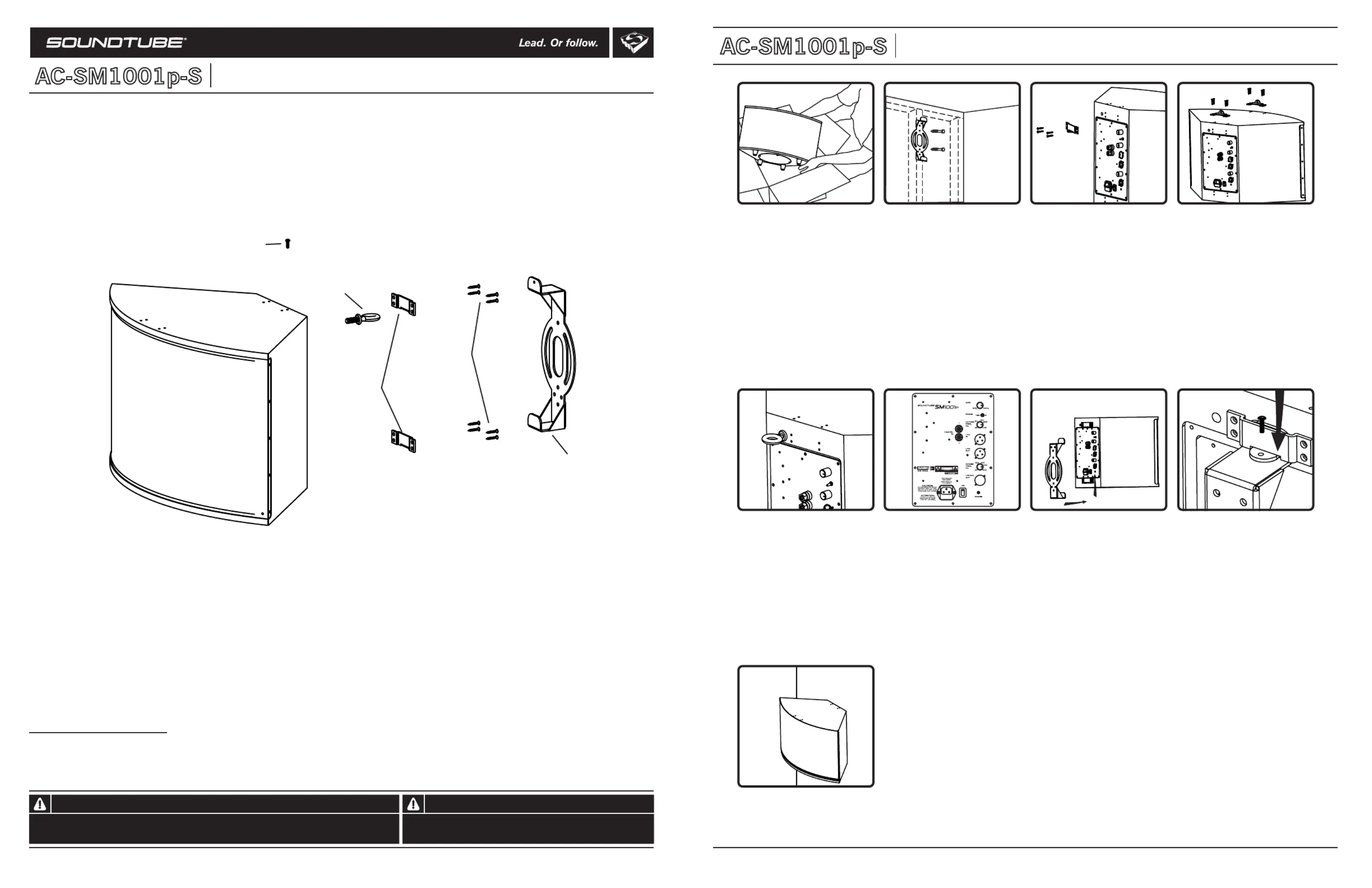

Security screw

Surface-mount bracket

Note: Speaker ships separately

Forged eyebolt

Speaker brackets

Mounting screws

Box contents: Surface-mount kit

1 Surface-mount bracket

2 Speaker brackets

8 Fasteners (1/2" wood screws)

1 Security screw

For wiring instructions, consult SM1001p installation instructions.

Alternate optional accessory is a corner mount bracket (AC-SM1001p-C).

3b. Downward aiming:

Mount speaker brackets to

top of speaker with tabs

facing front of speaker. Use

included 1/2 inch wood

screws.

5. Connect wires and set

gain and filters as described

in the SM1001p installation

instructions.

1. Unpack subwoofer and

unscrew 4 feet. Remove

screws from rubber plugs

and replace screws to fill

holes.

4. For a safety cable

attachment, screw the

forged eye bolt into the

1/4-20 inserts on the back

of the speaker. Attach

included safety cable from

forged eyebolt to secure

mounting point on

structure. Installer to supply

fastener to structure.

2. Choose a secure

mounting surface with

sufficient strength to reliably

hold the speaker.

Surface-mount bracket must

be mounted at least 3

inches below ceiling, beam

or other top structure.

Bracket accepts 1/4 inch lag

bolts (installer to supply

fasteners). Be sure

mounting tabs point up.

3a. Outward aiming: Mount

speaker brackets to back of

speaker with tabs down.

Use included 1/2 inch wood

screws.

7. Install security screw.

8. Done!

6. Slide speaker onto

pre-mounted bracket.

AC-SM1001p-S

Install Instructions For:

SM1001p Surface Mount Bracket

1.435.647.9555

| | 800.647.TUBE

www.soundtube.com

Install Instructions For:

SM1001p Surface Mount Bracket

AC-SM1001p-S

Produktspezifikationen

Marke:	SoundTube
Kategorie:	Nicht kategorisiert
Modell:	AC-SM1001p-S
Breite:	129.54 mm
Produktfarbe:	Schwarz
Höhe:	286.51 mm
Typ:	Grundplatte
Menge pro Packung:	1 Stück(e)
Kompatibilität:	SM1001
Anpassbar:	Nein
