Seite 1/2
Power External Controller LED Light Speaker
Contact closure = Green/White
Contact closure = Green
12 V trigger = Blue/White
LED control = Orange/White
LED control = Orange
Left in = White
Left in = Green
Right in = Red
Right in = Black
Power = Brown/White
Power ground = Brown
Cat 5 Wiring
All signal and control wires are located in the signal/hanging cable provided
with the FP unit speaker wires. A Cat 5 cable (blue or gray shield) contains the control and power
wires; audio wires are individual 16-gauge wires in the bundle.
Wiring Instructions

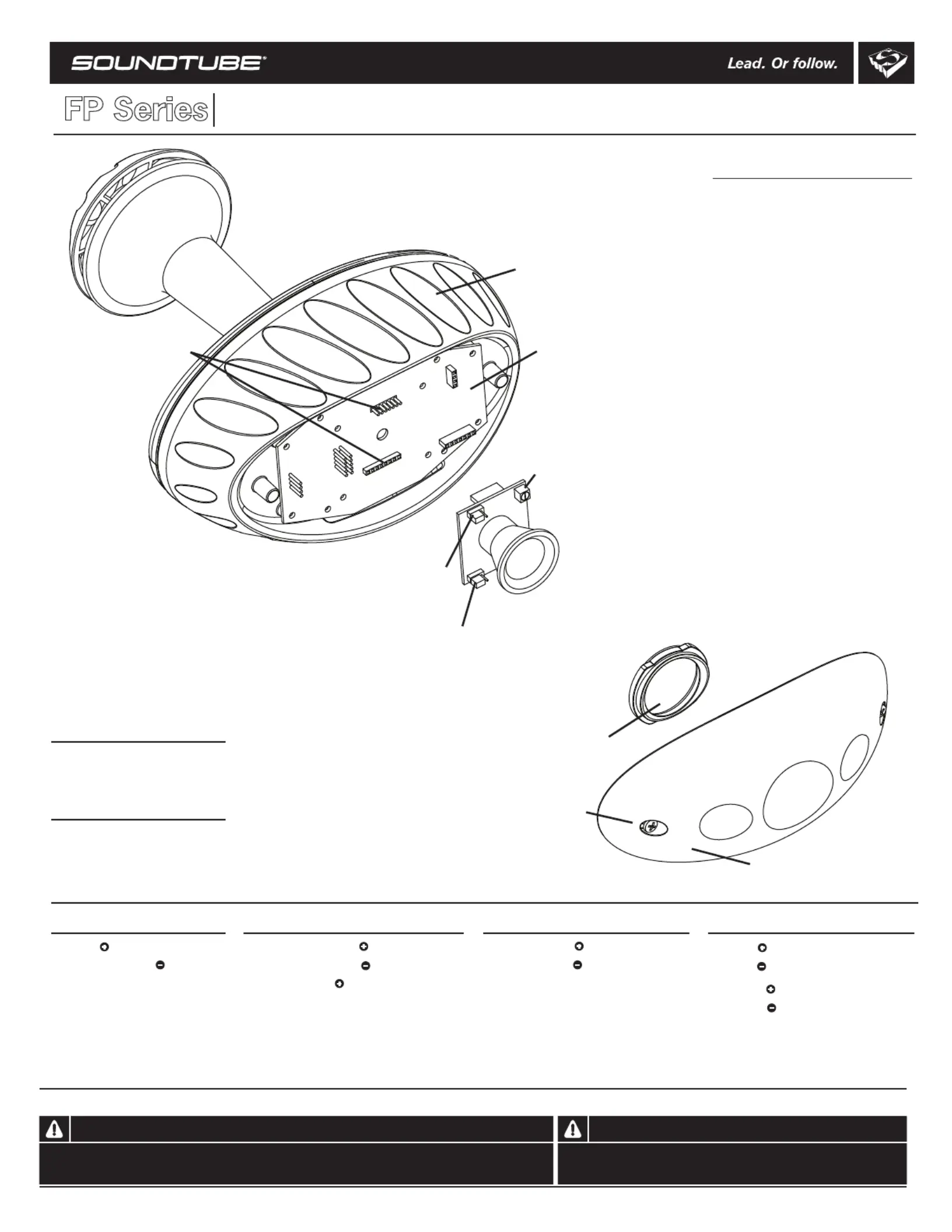

1 FP-Light module
2 Jumpers
Contents
FP pod [2]
Brightness control [6]
Pod cover [1]
Light module
Main electrical board
LED lamp baffle
(ships with light module only)
FP modules ship pre-installed
from the factory.
Other FP Series optional
modules include:
1. FP-Motion
All modules require a power source.
An optional 15-volt source is
available from SoundTube
(Model number: AC-PS-1530)
Jumper 4 (J4) external
brightness control [4]
Light connection
Jumper 2 (J2) motion
sensor control [5]
Pod cover screws [3]
FP Series
Do not spec or install speaker near support beam, ventilation duct or
other structure that may interfere with speaker function or dispersion.
Warning
© 2010 SoundTube Enterta inm t,en Inc. A llrights re rved. se PN I PNS-F -LIGHT Rev .1004.02
Warning
SoundTu s m in a pr s s r n r. s y r be peakers ust be stalled by ofes ional audio in talle /co tracto For afet and fo
optim dio performance, staller mu follow all di ection sued So ndum au in st r s is by u Tube te tai me En r n nt.
1.435.647.9555 | 800.647.TUBE www.soundtube.com
435.647.9555
| | 800.647.TUBE
www.soundtube.com
Ins ntall I stru tionc s For:
FP-Light
FP Series
Connect the power supply to
the brown/white (+) and
brown (-) wires in the CAT 5
cable.
FP-Light | Light Settings and Controls
Module Description
The LED light can operate as a
standard light fixture or can be
triggered with the FP-Motion
module. Brightness can be
controlled either internally with
an adjustment on the FP-Light
module or externally with a
global system controller. To
trigger the FP-Light with the
FP-Motion, refer to Section 3
and the FP-Motion installation
instructions.
Section 1 – Wiring The
Speaker
Connecting The External
Power Supply
The FP-Light requires an
external power supply rated
between 12 V and 18 V
(optional SoundTube
accessory: AC-PS-1530)
Section 2 – Adjusting the
Brightness
Remove The Pod Cover
Remove the pod cover [1] from
the FP pod [2] by loosening the
two captured screws [3] on
each side (Figure 1). The
screws will not come out of the
cover.
Adjust The Brightness
Internally
To manually adjust the
brightness of the light use a
small screwdriver to turn the
trim pot on the upper right
corner of the light module [6].
Turning the trim pot clockwise
will increase brightness and
counterclockwise will decrease
brightness.
Adjust The Brightness
Externally
The external brightness control
is disabled by factory default.
To enable the external
brightness control, move
Jumper 4 [4] on the upper left
corner of the FP Light module
to the enabled position over
the two right pins (Figure 2).
To adjust the brightness
externally, incorporate a
controller such as Crestron or
Lutron and connect the
positive lead [+] from the
controller to the orange/white
wire in the Cat 5, and the
negative lead [–] from the
controller to the orange wire in
the Cat 5. The Light module
accepts 0 V to 10 V DC signal
to control the brightness. To
achieve maximum
brightness, the trim pot
must be turned fully
clockwise (see previous
step).
Section 3 – Motion Sensor
Triggering
Enable The Motion Sensor
Note: To use with motion
triggering, both the FP-Light
and the FP-Motion modules
must be installed.
Since motion sensing is
disabled by factory default, the
light will be on continuously
when power is supplied. To
enable motion sensor
triggering of the light, move
Jumper 2 [5] on the lower left
corner of the FP-Light module
to the two left pins (Figure 3).
When this feature is enabled,
the light will only activate when
motion is detected. See
FP-Motion sensor instructions
for settings and controls.
Section 4 – Replacing The
Pod Cover
Replace pod cover [1] and
tighten screws [3].

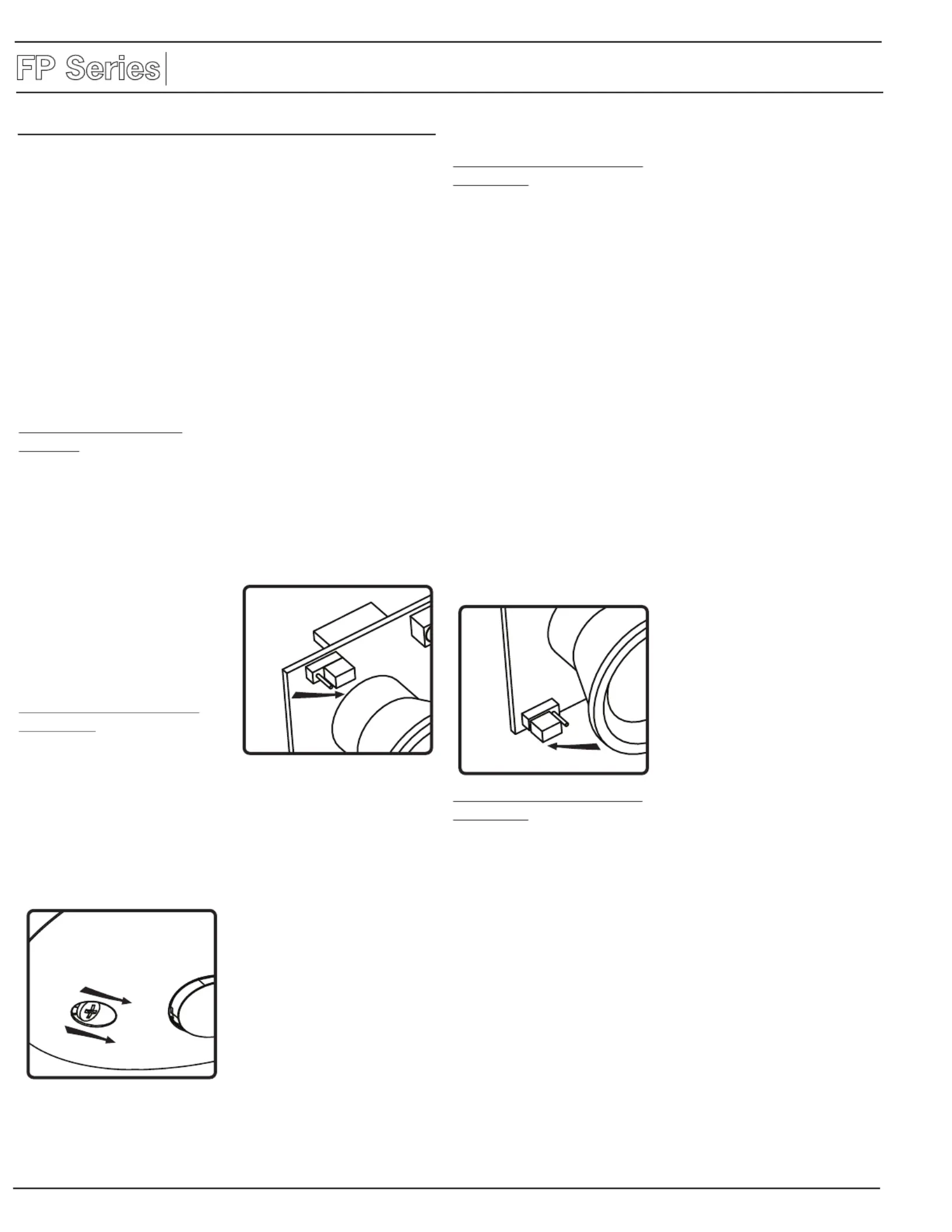

Figure 2
Figure 3
Figure 1
435.647.9555
| | 800.647.TUBE
www.soundtube.com
Ins stall Instruction For:
FP-Light
FP Series
