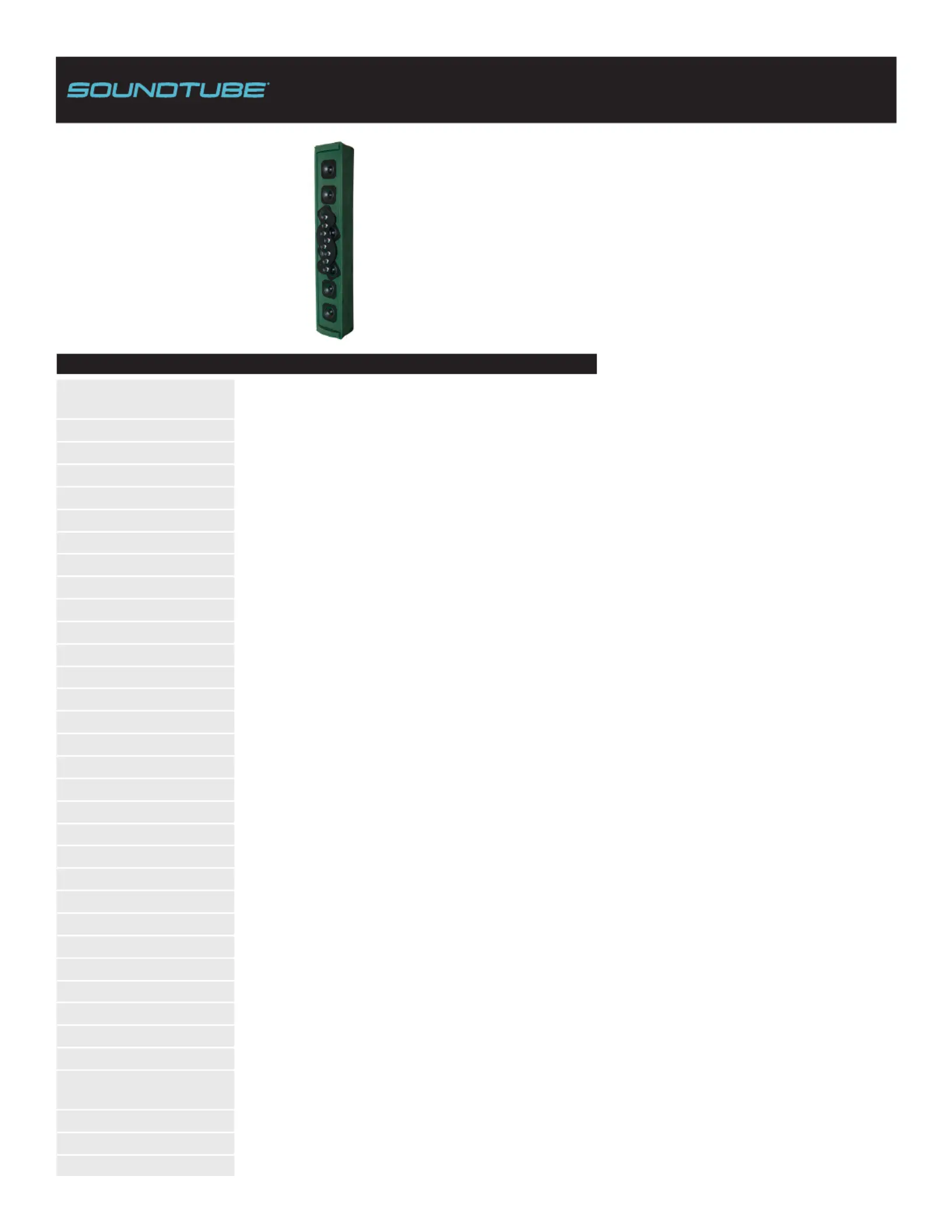

System Type
2-way full range line array (Optional 120 W transformer for
25/70.7/100 V applications)
Impedance (Rated)
1
8 Ω
Sensitivity dB @ 2.83 V/ 1 m
92.0 dB
Sensitivity dB @ 1 W/ 1 m
2
92.0 dB
Frequency Response (±3 dB)
3
100 Hz - 20 kHz
Frequency Response (±10 dB)
3
65 Hz - 22 kHz
Max. Program Power
4
300 W
Max. Continuous Power
5
150 W
Max. SPL dB @ 1 m
6
114 dB
Coverage Angle (±6 dB @ 2 kHz)
174° horizontal | 25° vertical
Coverage Angle (±6 dB @ 10 kHz)
50° horizontal | 20° vertical
Coverage Angle (Avg. 2 to 10 kHz)
180° horizontal | 50° vertical (200-10k)
Tap Selector (Optional)
5-position rotary switch with transformer bypass position
Directivity Factor (Q)
9 (Average 100 Hz - 10 kHz) | 12.1 (2 kHz)
Directivity Index (DI)
12.8 dB (Average 100 Hz - 10 kHz) | 16.2 dB (2 kHz)
Low-Frequency Driver
8 - 76 mm (3”) woofer, polypropylene
High-Frequency Driver
8 - 25.4 mm (1”) titanium dome tweeters
Crossover Frequency
2.4 kHz
Network Type: Low-Pass
12 dB/OCT
Network Type: High-Pass
18 dB/OCT
Enclosure Material
Roto-molded polyethylene plastic
Grille
Painted coated stainless steel
Inputs
Weatherproof SpeakOn
Colors
Green, Black, or White
Height
949.3 mm | 37.37”
Width
172.7 mm | 6.8”
Depth
148.5 mm | 5.85”
Depth (Including Bracket)
223.5 mm | 8.8”
Weight
7.80 kg | 17.2 lbs
Shipping Weight
8.5 kg | 18.7 lbs
Included Accessories
Mounting plate and mounting bolts, SpeakOn connector and safety
cable
Optional Accessories
120 W transformer and tap switch
Packaging
1 per box
Certications
CE, RoHS
Description
The SoundTube XT-Spyke is not a typical line array
column loudspeaker. It is an advanced LAPS (Line
Array-Point Source) 2-way design that provides
a very short near-eld extent and robust far-eld
performance. Frequency tapering of low and high
frequency pass bands allows the XT-Spyke to
maintain a more consistent ratio of array height
to radiated wavelength, ensuring a stable vertical
beamwidth that out-performs many other single box
line arrays. Featuring eight 3” woofers and eight 1”
high frequency drivers for extremely smooth high
frequency response, the XT-Spyke achieves superb
coverage in an enclosure measuring only 37.6” x
6.80” x 5.50”.
Features
• Passive, xed length, column line array with 2-way
design.
• Eight 3” (76 mm) polypropylene woofers and eight
1” (25.4 mm) titanium dome tweeter.
• Optional 120 Watt transformer for 25/70.7/100
Volt applications
• Line Array - Point Source (LAPS) technology
provides short, near-eld extent and robust, far-
eld performance
• UV-, scratch-, chlorine- and weather-resistant with
professional-grade components for long-lasting
performance and durability.
• Painted stainless steel grille - custom paintable.
• Available in green, black or white nish.
• Flexible mounting options include surface-mount
and pole-mount.
• Weatherproof SpeakOn connectors allow for fast
connections and easy daisy chaining.
• Included accessories: Stainless steel mounting
plate, mounting bolts and safety cable.
1
Impedance listed per IEC 60268-5 with a minimum less than
80% the nominal impedance
2
1 W/1 M sensitivity determined using nominal impedance
3
Frequency response measured in half or full space as dictated
by speaker mounting conguration
4
Max program power is 3 dB above max continuous power
5
Continuous power rating, EIA-426-B test
6
Max output based on max continuous power
XT-SPYKE PRODUCT SPECIFICATIONS
XT-Spyke
Outdoor Line Array Speaker
Performance specications of a typical production unit shall be as follows:
usable frequency response shall extend from 58 Hz - 22 kHz (±10 dB).
Measured sensitivity (2.83 V / 1 m) shall be 92 dB. The speaker shall have
a rated impedance of 8 Ω. Rated power handling shall be 150 W and
maximum continuous output at 1 meter shall be 114 dB.
The low frequency drivers shall include a polypropylene cone and surround.
They shall use a die-cast aluminum basket and a ferrite motor structure. The
high frequency drivers shall be titanium dome tweeters.
Mounting points for wall-mount, pole-mount and spyke-mount shall be
provided. Input connectors shall include Neutrik SpeakOn.
The enclosure shall be constructed of roto-molded polyethylene plastic
with metal ¼” x 20 threaded inserts mounting points and a stainless steel
grille. The enclosure and grille shall be available in green, black or white.
A mounting bracket with mounting hardware and safety cable attachment
point shall be included.
The system shall be the SoundTube XT-Spyke line array.
SoundTube
®
by MSE Audio
®
13720 W. 109th St.
Lenexa, KS 66215
Phone: 913.663.5600
Fax: 913.663.3200
Toll Free: 855.663.5600
www.mseaudio.com
All SoundTube speakers come with a 5-year limited warranty and 3-year
warranty on all electronics.
Applications
Designed for outdoor use in large public spaces, the XT-Spyke is idea for
PA and sound reinforcement application. Its near-eld to far-eld transition
occurs at only 3 meters (about 10’) from the speaker, maintaining a constant
directivity of 91° x 50° throughout the coverage area. The XT-Spyke was
designed for use in transportation platforms, airports, houses of worship,
auditoriums and other public gathering spaces.
Patented Technologies
SoundTube Entertainment and the MSE Audio Group constantly develop
new technologies which enhance audio product performance. SoundTube
Entertainment innovations are protected by multiple U.S. and international
patents, which explicitly cover SoundTube dome, enclosure and dispersion
technologies. The MSE Audio Group actively defends its patents in order to
protect SoundTube resellers and end-users.
Technical Data and Specification Tools
SoundTube Entertainment strives to provide complete and effective technical
information and data to dealers, engineers and designers. All data is
available from SoundTube Entertainment or at www.soundtube.com.
Technical data and downloads include:
• EASE
™
data - 3-D polar plots.
• EASE
™
Address - 2-D modeling for distributed systems
• AutoDesk
®
Revit
®
software
• Tech Sheets - technical information and architectural specs for system
engineers
• SoundTubeSPEC
™
- Proprietary speaker placement software
Independent Data Acquisition and Verification
All data for SoundTube speakers is independently collected from and veried
by NWAA Labs (www.nwaalabs.com) using their proprietary MACH testing
system. All data is collected and analyzed according to ASTM, ISO and AES
standards using EASERA, TEF and MLSSA. Full balloon data including both
phase and magnitude is compiled into a variety of formats including EASE
4.x, GLL and CLF.
Architectural Specifications
The loudspeaker shall be a single-cabinet, 2-way column line array with
eight 3” (76 mm) woofers and eight 1” (25 mm) high-frequency drivers.
XT-Spyke
Outdoor Line Array Speaker
Transformer Taps
70.7 V 100 V 25 VOutput Output Output
120 W 120 W 15 W113 dB 113 dB 104 dB
60 W 60 W 8 W110 dB 110 dB 101 dB
30 W 30 W 4 W107 dB 107 dB 98 dB
15 W 15 W 2 W104 dB 104 dB 95 dB
8 W 101 dB

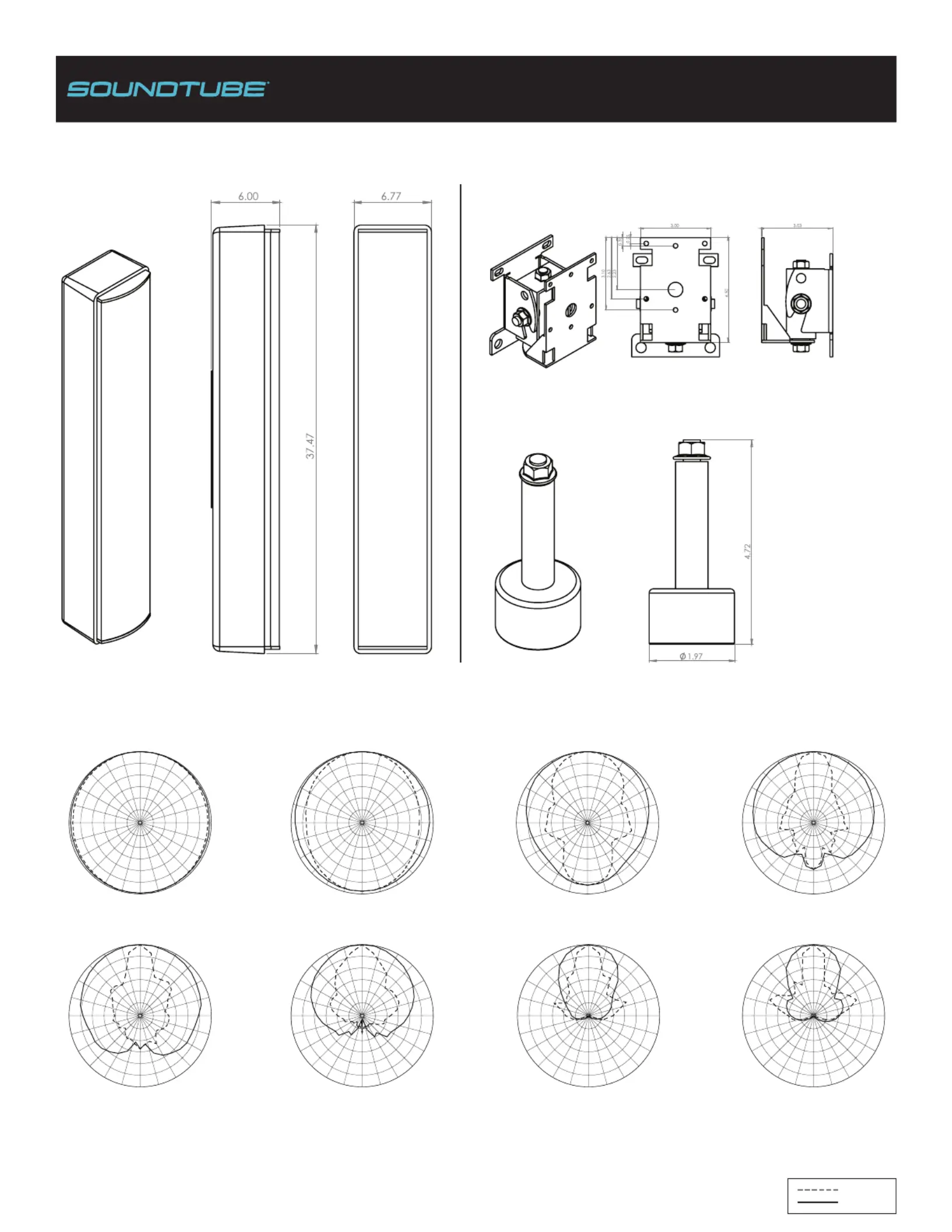

Mechanical Drawings
Plots
XT-Spyke
Outdoor Line Array Speaker
Technical data, EASE
™
plots, SoundTubeSPEC
™
software and product downloads available at www.soundtube.com
Wall Mount Bracket
Pole Mount Adapter
10,000 Hz
8,000 Hz4,000 Hz2,000 Hz
1,000 Hz
500 Hz250 Hz
125 Hz
-30°
-60°
-90°
-120°
-150°
+30°
+60°
+90°
+120°
+150°
0°
+/-180°
0- 12 -24- 36
-6 -18- 30
-30°
-60°
-90°
-120°
-150°
+30°
+60°
+90°
+120°
+150°
0°
+/-180°
0- 12 -24- 36
-6 -18- 30
-30°
-60°
-90°
-120°
-150°
+30°
+60°
+90°
+120°
+150°
0°
+/-180°
0- 12 -24- 36
-6 -18- 30
-30°
-60°
-90°
-120°
-150°
+30°
+60°
+90°
+120°
+150°
0°
+/-180°
0- 12 -24- 36
-6 -18- 30
-30°
-60°
-90°
-120°
-150°
+30°
+60°
+90°
+120°
+150°
0°
+/-180°
0- 12 -24- 36
-6 -18- 30
-30°
-60°
-90°
-120°
-150°
+30°
+60°
+90°
+120°
+150°
0°
+/-180°
0- 12 -24- 36
-6 -18- 30
-30°
-60°
-90°
-120°
-150°
+30°
+60°
+90°
+120°
+150°
0°
+/-180°
0- 12 -24- 36
-6 -18- 30
-30°
-60°
-90°
-120°
-150°
+30°
+60°
+90°
+120°
+150°
0°
+/-180°
0- 12 -24- 36
-6 -18- 30
Horizontal
Vertical
