SPEAKMAN SE-4360
CART ASSEMBLY INSTALLATION INSTRUCTIONS
Note- Holds up to 500 lbs.

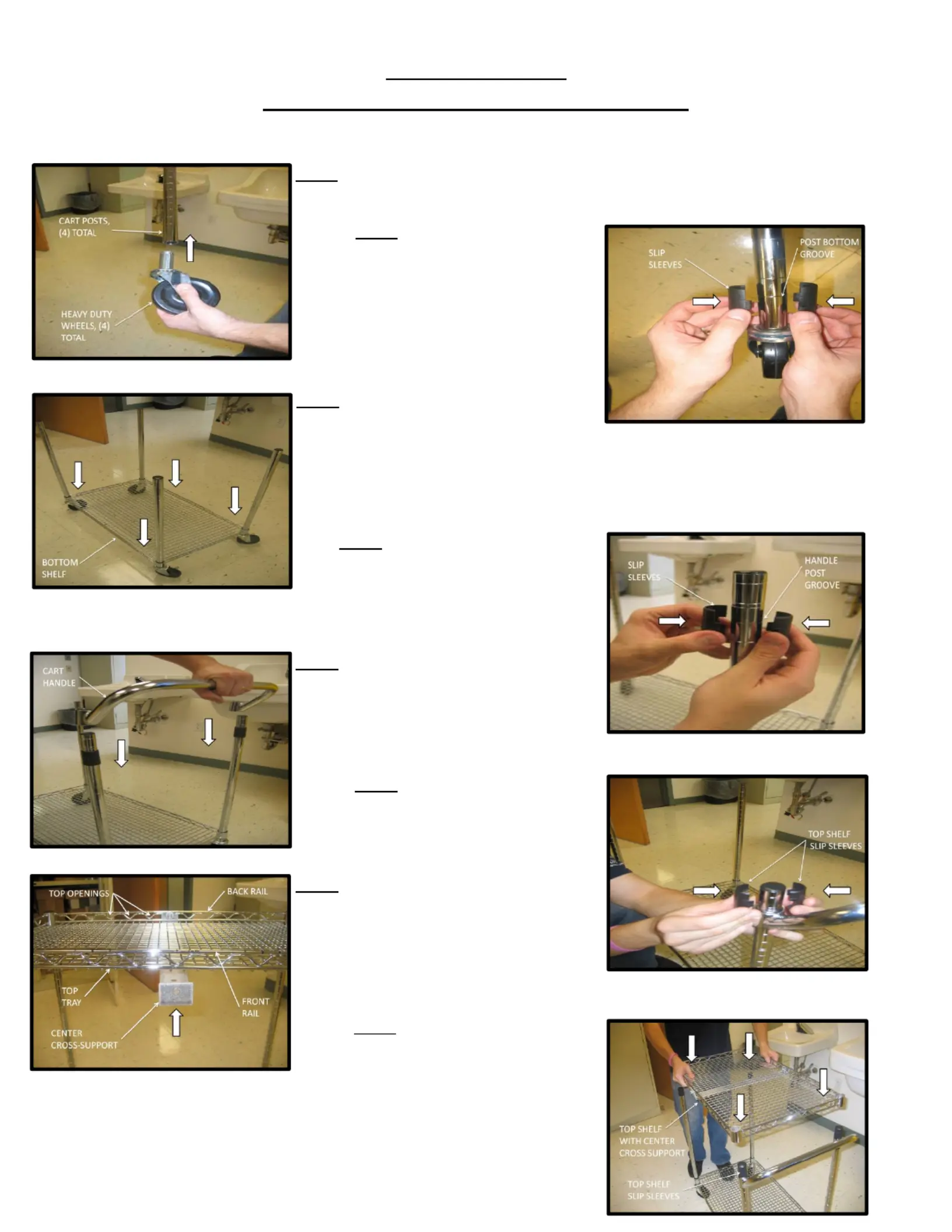

STEP 1 – INSERT THE WHEELS INTO THE BOTTOM
OF ALL FOUR (4) POSTS.
STEP 2 – FASTEN A PAIR OF SLIP SLEEVES
AROUND THE GROOVE AT THE BOTTOM OF
EACH OF THE FOUR (4) POSTS.
STEP 3 – SLIDE THE BOTTOM SHELF OVER THE
TOP OF ALL FOUR (4) POSTS UNTIL IT RESTS
MAKE SURE THE TWO (2) LOCKABLE WHEELS
ARE ON THE SAME SIDE OF THE SHELF. TIP: IF
NECESSARY, USE A RUBBER MALLET TO FURTHER
SECURE THE SHELF.
STEP 4
- DETERMINE THE HEIGHT AND SIDE
TO PLACE THE HANDLE BAR. FASTEN A PAIR
OF SLIP SLEEVES AROUND THE GROOVE
CHOSEN FOR THE HANDLE ON TWO (2) OF
THE FOUR (4) POSTS.
STEP 5 – SLIDE THE HANDLE BAR OVER THE
TWO (2) POSTS UNTIL IT RESTS SNUGLY ON
T
HE SLIP SLEEVES. TIP: IF NECESSARY, USE
A RUBBER MALLET TO FURTHER SECURE THE
HANDLE.
STEP 6 – FASTEN SLIP SLEEVES ALONG THE
TOP GROOVE OF EACH OF THE FOUR (4)
POSTS.
STEP 7 – USING TWO (2) 3/8” X 1” LONG
BOLTS, FOUR (4) FLAT WASHERS, TWO (2)
LOCK WASHERS, AND TWO (2) NUTS,
ATTACH THE CENTER CROSS SUPPORT TO THE TOP
SHELF. TIP: USE THE SIXTH TOP OPENING IN THE
FRONT/BACK RAILS OF THE TOP SHELF.
STEP 8 –
SLIDE THE TOP SHELF OVER THE
TOP OF THE FOUR (4) POSTS UNTIL IT RESTS
SNUGLY ON THE SLIP SLEEVES. TIP: IF
NECESSARY, USE A RUBBER MALLET TO
FURTHER SECURE THE HANDLE.
THE CART ASSEMBLY IS NOW COMPLETE. FOR MOUNTING THE EYEWASH
UNIT, SEE BACK SIDE OF THIS SHEET.
SPEAKMAN SE-4360
EYEWASH MOUNTING INSTALLATION INSTRUCTIONS

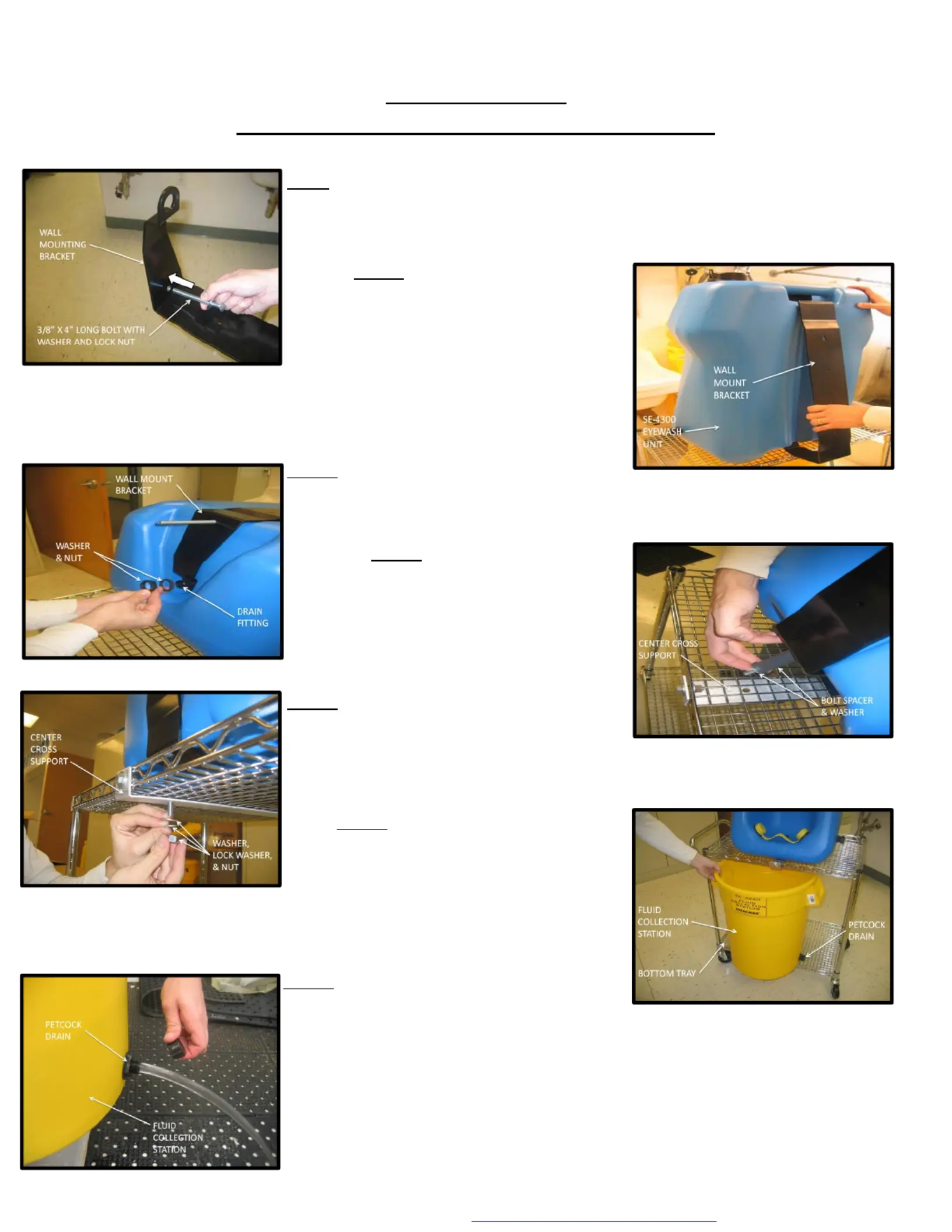

STEP 9 – PLACE A LOCK WASHER AND WASHER AROUND
THE 3/8” X 4” LONG BOLT AND SLIDE IT THROUGH THE
HOLE AT THE BOTTOM OF THE EYEWASH WALL MOUNTING
BRACKET.
STEP 10 –
ATTACH THE WALL MOUNT BRACKET
TO THE EYEWASH UNIT BY FIRST LATCHING
THE UPPER HANDLE PORTION OF THE TANK TO
THE UPPER HOOK OF THE WALL BRACKET.
POSITION THE BOTTOM PORTION OF THE TANK
ONTO THE WALL BRACKET SO THE DRAIN
FITTING CAN BE INSERTED THROUGH THE DRAIN
HOLE OF THE TANK AND THE HOLE IN THE WALL
BRACKET SIMULTANEOUSLY.
STEP 11 – LOCK THE DRAIN FITTING INTO PLACE
BY ASSEMBLING WASHER AND NUT TO
UNDERSIDE OF DRAIN FITTING.
STEP 12 – S
LIDE BOLT SPACER AND WASHER
OVER BOLT. SLIP BOLT THROUGH HOLE IN
CENTER CROSS SUPPORT.
STEP 13 –
USING A FLAT WASHER,
LOCK WASHER, AND NUT, SECURE THE SE-4300
EYEWASH UNIT TO THE CENTER CROSS SUPPORT
AND TOP SHELF OF THE SAFETY CART.
STEP 14 – PLACE THE FLUID COLLECTION STATION
ON THE BOTTOM SHELF OF THE CART TO COLLECT
WATER DISPENSED FROM THE DRAIN FITTING
ONCE THE UNIT HAS BEEN ACTIVATED. TIP: FOR
TANK FILLING, OPERATION, VISUAL INSPECTION,
AND MAINTENANCE INSTRUCTIONS, SEE SE-4300
INSTALLATION INSTRUCTION SHEET.
STEP 15 - USE THE PETCOCK DRAIN ON THE SIDE
OF THE COLLECTION STATION TO DRAIN
WATER AFTER EACH USE.
PART NO. 92-3173-R2
