AP2PLR Manual
Scan for manual and Software downloads
Point to Point Long Range 5.8 GHz
Wireless Access With Dipswitch
Powered By POE
www.specotech.com | 800.645.5516
Manual | Model AP2PLR
2

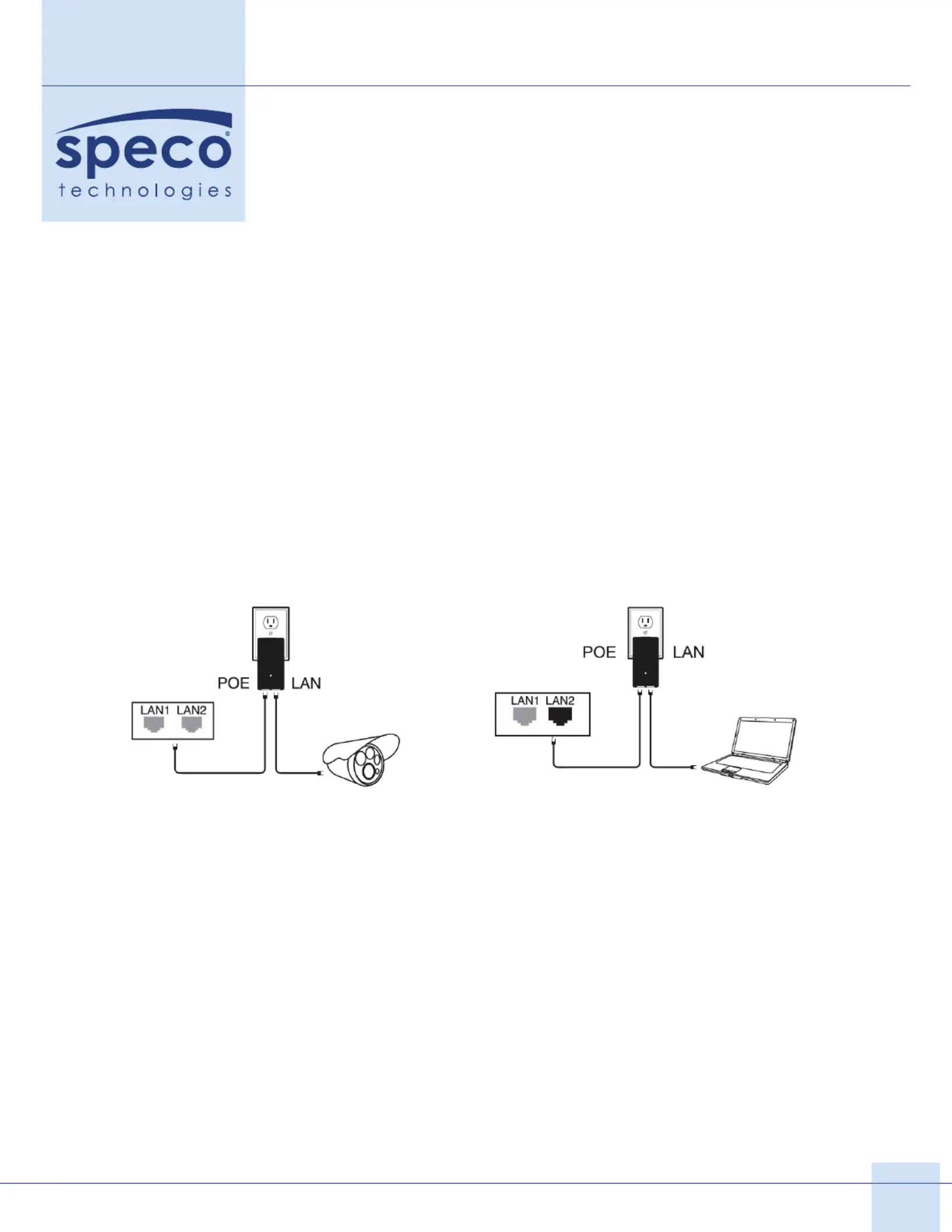

Connecting Diagram
POE Port Connect with LAN1 or LAN2 port on AP
POE LAN Connect with PC, Camera, Switch or NVR
• Both RJ45 ports(black and yellow) on AP are LAN connections.
• If you want to enter web page, you need manually bound IP address of PC.
• The PoE power adapter has 3 inputs. One is for the AC cord, and two are for networking.
• Please note the PoE adapter and power cord are not designed for outdoor use and should be installed
in a location protected from the elements.
The bottom of the adapter has two RJ45 connections. One marked POE and one marked LAN.
Using one Cats cable. connect one end to “LAN” and the other end to your camera. recorder. PC. etc.
www.specotech.com | 800.645.5516
3

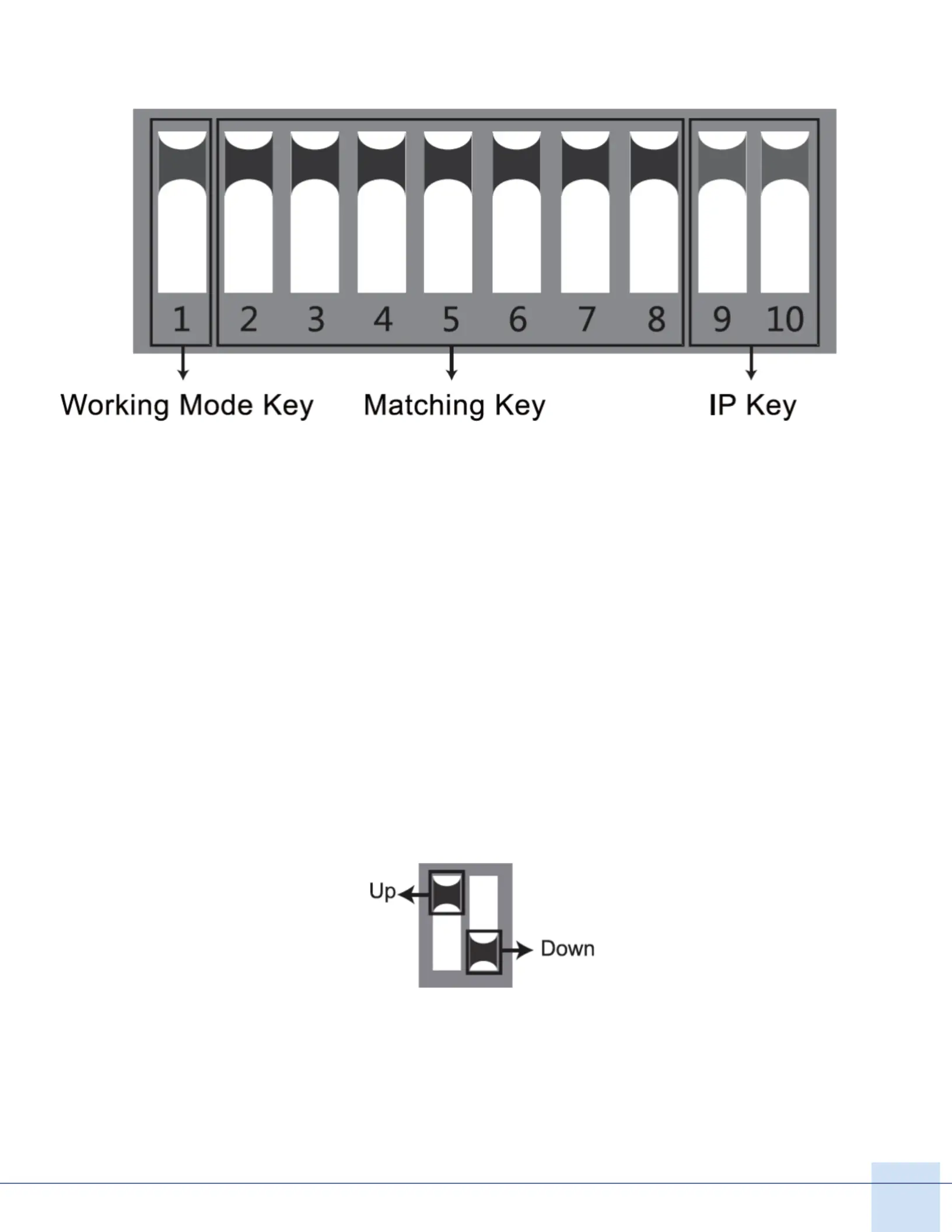

DIP Device Instructions
Button 1
Changes the mode of the device. UP is access point (AP) mode for use with your recorder, PC, etc.. DOWN is
for use with your camera.
Button 2 through 8
Are for matching AP devices together. There are 128 various combinations that can be made from the 7 keys,
which corresponds to 128 dierent SSIDs and 128 dierent segments. The Pages 8-15 below show all possible
combinations.
Button 9 & 10
Are for point to multi-point functionality. To use up to 4 cameras with one recorder, configure the DIP
switches as follows:
0n the recorder/PC/Switch side, switches 9 and 10 should
remain up.
0n the camera side, select one of 4 configurations for
switches 9 and 10.
• Camera 1: 9 Down and 10 Down
• Camera 2: 9 Down and 10 Up
• Camera 3: 9 Up and 10 Down
• Camera 4: 9 Up and 10 Up
You cannot duplicate the switch settings between Cameras
for switches 9 & 10 or you will experience interference, thus
the max of 4 points.
Remarks:
• Restart your AP after finishing
DIP settings.
• The SSID of DIP type AP defaults
is not broadcast. password has been
set up and can be customized.
• 3. Make sure the IP address of
the camera is dierent from AP
