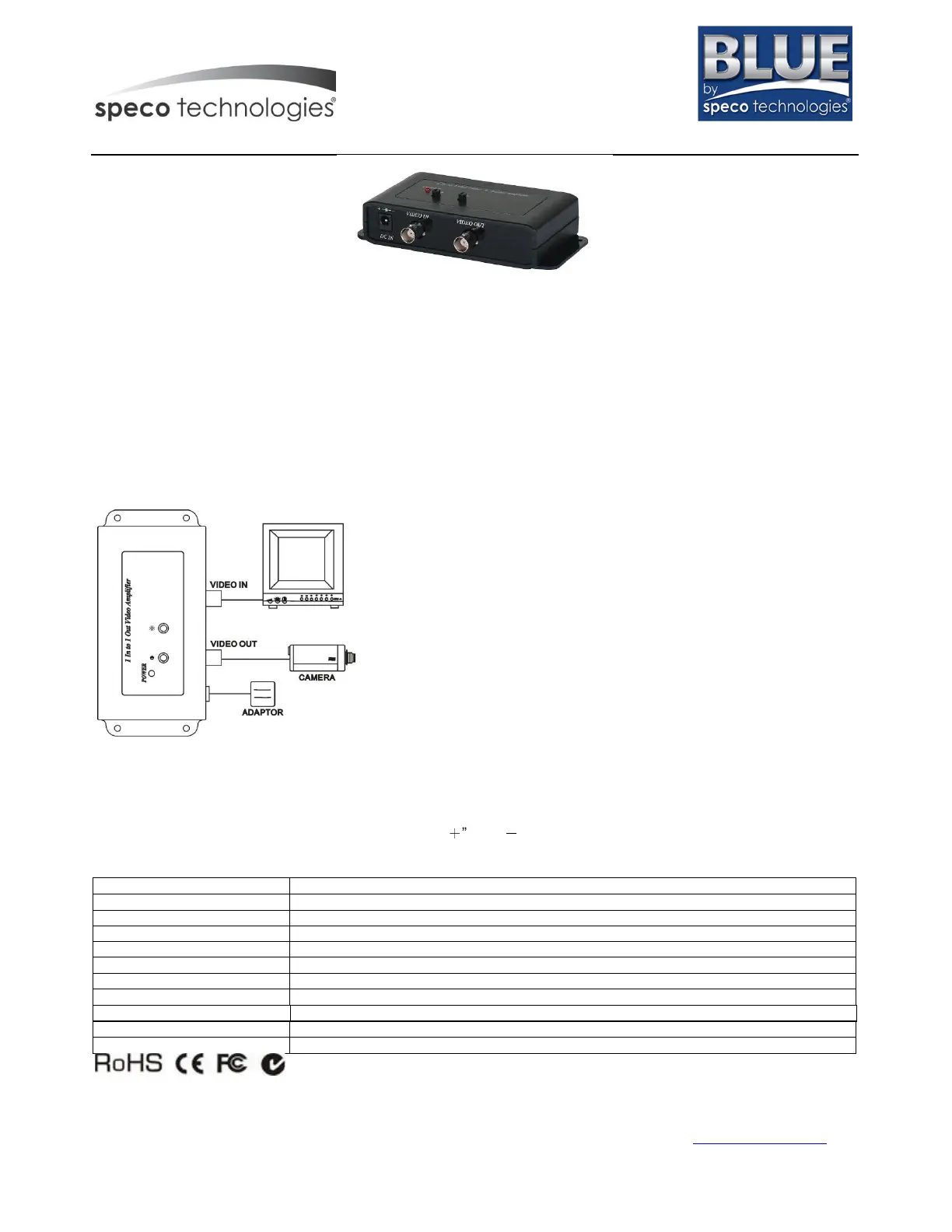

– Coaxial Standard Definition Video Distributor/Amplifier, 1 in 1 out

Speco Technologies’ VIDAMP amplifier is designed for long-range video transmission of Standard Definition Video up

to 3280’ over RG59 coaxial cable. The VIDAMP is suitable for long distances, different floors in a building or through

different electrical fields.

VIDAMP – 1 Input 1 Output Video Amplifier

HF compensation and wide bandwidth, video gain compensation amplification.

10dB adjustable image gain and sharpness and Brightness adjustment.

Transmission range: 3280’ (RG59 coaxial cable)

Red LED: power on/off.

For use with video cameras, multiplexers, VCRs, DVRs, etc.

12VDC power supply included.

Installation View:

`

Troubleshooting:

1. The stated transmission distance assumes no image processors (e.g. Quad, Multiplexer, DVR) are being used. The

range could be reduced up to 658’ (200M) through use of additional hardware.

2. For no video signal, please confirm power LED is lit and power source is connected.

3. If the video signal is not normal, please confirm the “

＋

” and “

－

” polarity of cables.

Specifications:

ITEM NO. VIDAMP

Video Input / Output 1 x BNC input, 1 x BNC output

Video Input Level 0.8~1.2Vp-p, 75 Ohms

Video Output Level 1Vp-p (Standard), 75 Ohms

Video Bandwidth 10hz - 10MHz

Transmission Range 3280’

Power Supply DC12V / 500mA

Power Consumption 100mA

Temperature Operation: 32°F to 131°F, Storage: -4°F to 185°F, Humidity: up to 95%

Dimensions mm 138 x 76.2 x 32

Weight g 100

Speco Technologies is constantly developing and improving products.

We reserve the right to modify product design and specifications without notice and without incurring any obligation.

Speco Technologies ● 200 New Highway ● Amityville ● NY ● 11701 ● www.specotech.com

Rev. 04/02/20
