Quick-Start Guide
Manual Revision: May 16, 2024 9:53 AM
To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.
Product IDs
1B-WALL-MOUNT-SHELF / 2B-WALL-MOUNT-SHELF
Component Function
1Glass Shelf • Place or other media equipmentA/V Accessories
• Allows along the Height Adjustment Wall Bracket
2Side Covers
• Decorative panels with to help with cable Grooves
management
• Attach directly onto the Wall Bracket
3End Caps
• Placed at the and of the Top Bottom Side Covers
• Small can be broken-o to pass-trough cables for the Tabs
mounted equipment
Product Information
For the latest manuals, product information, technical specications, and declarations
of conformance, please visit:
www.StarTech.com/1B-WALL-MOUNT-SHELF
www.StarTech.com/2B-WALL-MOUNT-SHELF
Requirements
• Phillips Head Screwdriver
• Electric Drill and 5/32in [4mm] or 5/16in [8mm] Drill Bits (Optional)
• Electronic Stud Finder (Optional)
Wall-Mount Floating Shelf for A/V Accessories
• Spirit/Bubble Level (Optional)
• Pencil (Optional)
Package Contents
Product ID 1B-WALL-MOUNT-SHELF 2B-WALL-MOUNT-SHELF
Glass Shelf ( )A1 2
Support Brackets ( )B1 2
Wall Bracket ( )C1 1
Side Covers ( )D2 4
M4x6mm Screws ( )E2 4
M5x14mm Screws ( )F2 4
M6x8mm Screws ( )G4 8
Wall Mounting Screws ( )H3 4
Wall Anchors ( )I3 4
Endcaps ( )J2 2
Mounting Plate, Large ( )K1 2
Mounting Plate, Small ( )L1 2
Quick-Start Guide 1 1
Warnings!
• StarTech.com Ltd. is not responsible for any property damage and/or personal injury
resulting from the installation procedures outlined in this technical document.
• Read the entire manual and ensure the instructions are fully understood before
assembling and/or using this product.
• This product is designed to be installed on wooden studded, solid concrete, or
cinder block walls only.
• Before adding equipment to this product, ensure this product has been properly
mounted.
• Never operate this product if parts are missing or damaged.
• The mounting hardware included with this product might not be adequate for some
wall structures. If lacking the necessary expertise to wall mount this product, contact
a construction professional to install the wall mount or to provide specic mounting
instructions for the wall structure.
• Ensure the weight of the equipment does not exceed the weight capacity of this
product. If the weight capacity is exceeded, personal injury or damage to the
*1B-WALL-MOUNT-SHELF shown. Product may vary from image
2
3
1
equipment are possibilities. These products can support the following weight:
up to 7kg (15.4lb).
• Ensure the type of wall structure and mounting hardware will properly support
the mounted equipment. Failure to do so might result in personal injury and/or
equipment damage. The wall structure should be capable of supporting at least four
times the weight of the mounted equipment.

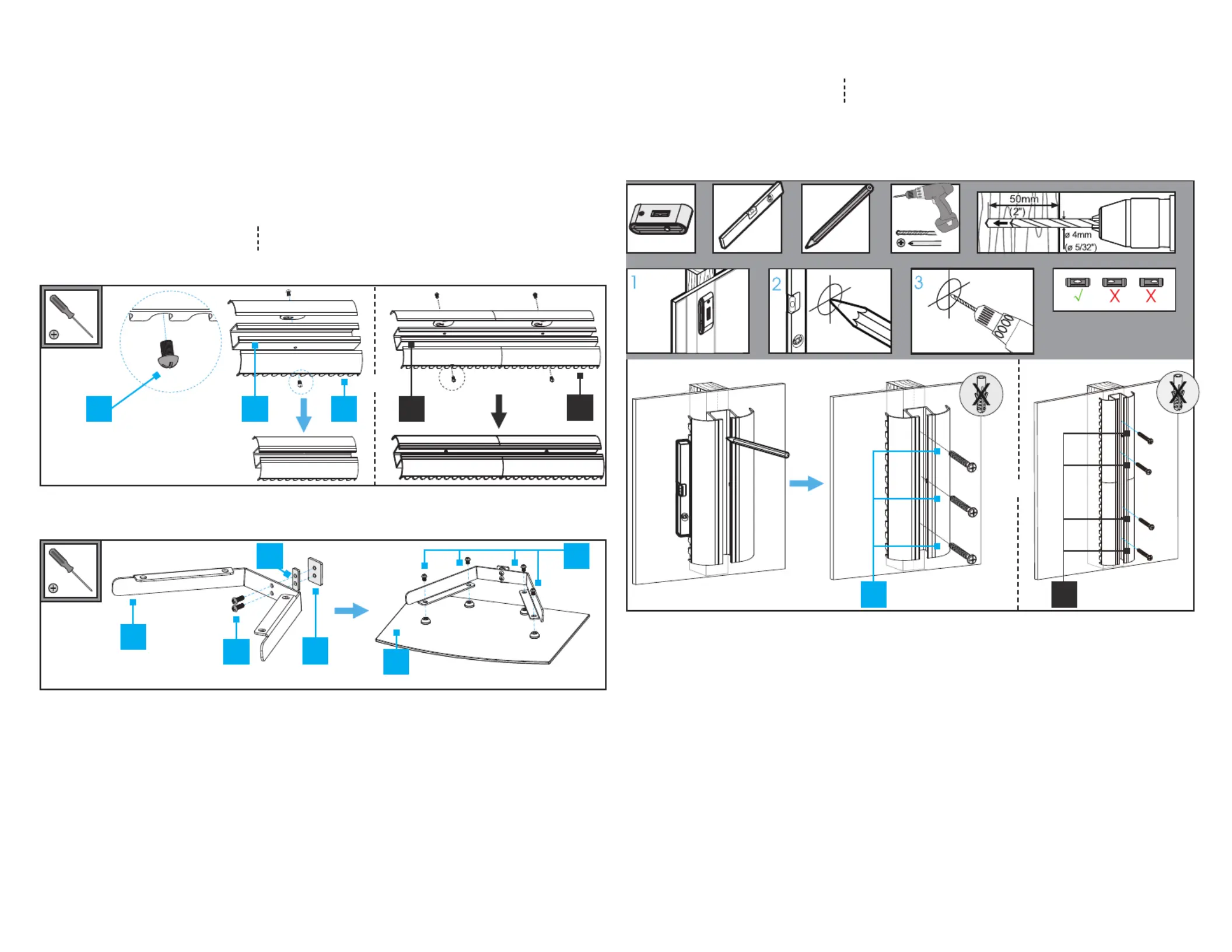

Installation
Assembly
1B-WALL-MOUNT-SHELF (left) 2B-WALL-MOUNT-SHELF (right)
1
2
Wall Mounting
1B-WALL-MOUNT-SHELF (left) )2B-WALL-MOUNT-SHELF (right)
Wooden Stud Wall or Concrete/Cinder Block Wall
1
Wooden Stud Wall
H
Or
E D D
C C
Or
BF
L
K
G
A
Repeat p2-x2 for 2B-WALL-MOUNT-SHELF
H
Concrete/Cinder Block Wall

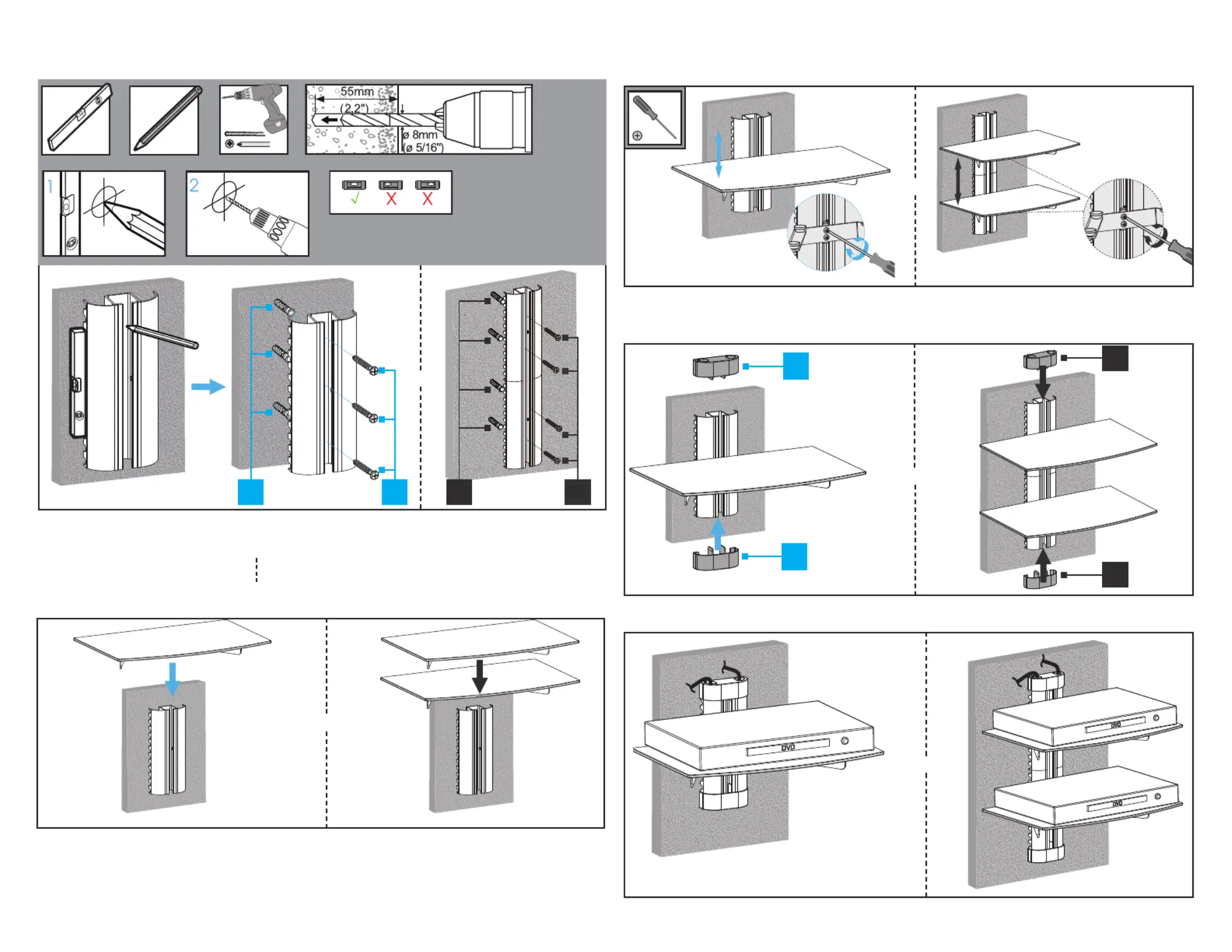

Shelf Mounting
1B-WALL-MOUNT-SHELF (left) 2B-WALL-MOUNT-SHELF (right)
1
2
3
4
J
J
Or
Or
Or
I H I
Or
H
Or
J
J
