Quick-Start Guide

To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.

Manual Revision: January 26, 2021

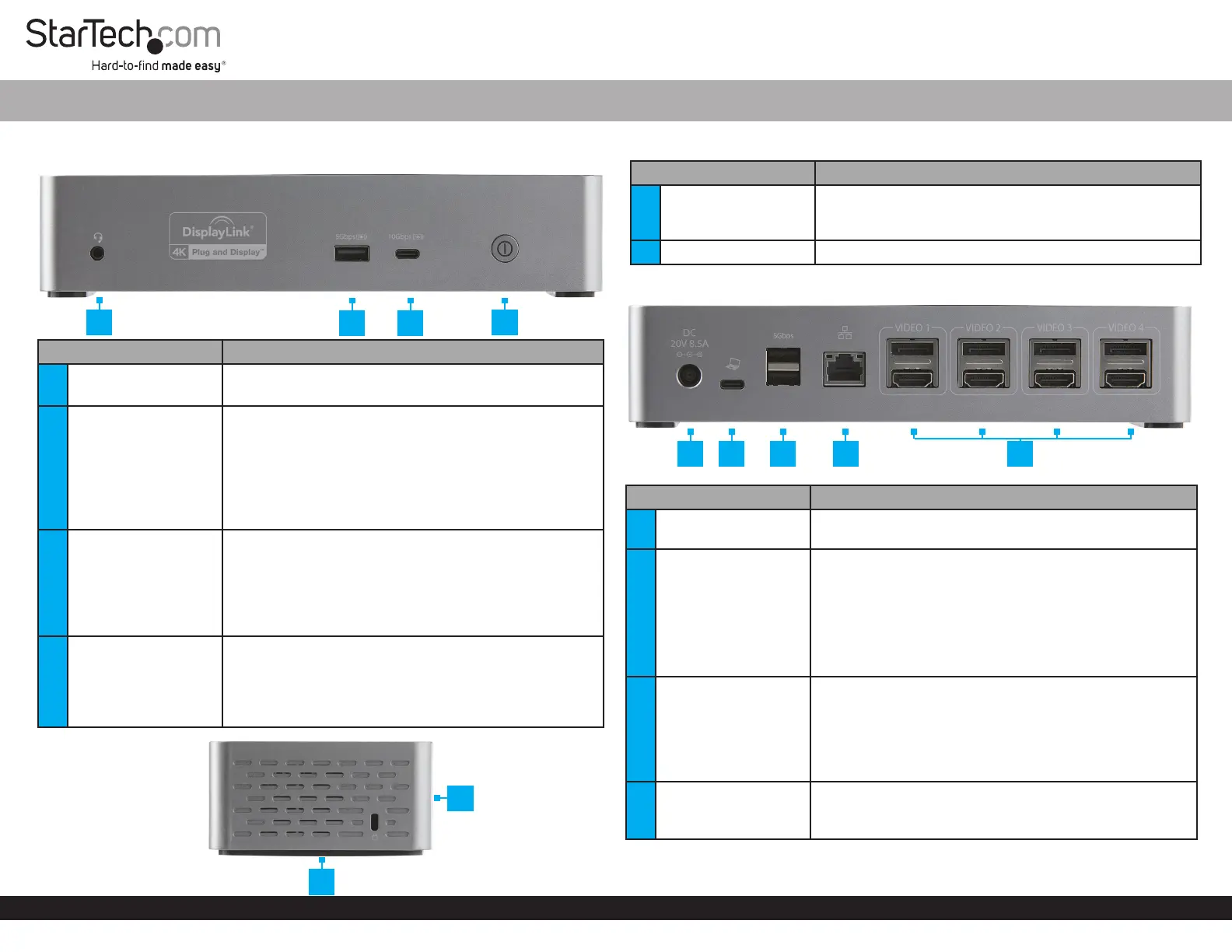

Product Diagram (DK31C4DPPD and DK31C4DPPDUE)

Front View

PortSpecications and Installation

13.5mm Audio Port

• Connect an Audio Device

• 4 Position Audio Jack for Headset use

2USB-A Charging Port

• SuperSpeed USB 5Gbps (USB 3.2 Gen 1)

• Supports USB BC 1.2

• Supports Apple Charging of up to 2.4A

• Connect the Docking Station to a SuperSpeed USB

5Gbps Peripheral or Storage Device (e.g. ash drive),

using a SuperSpeed USB 5Gbps (USB 3.2

Gen 1) Cable

3USB-C Charging Port

• SuperSpeed USB 10Gbps (USB 3.2 Gen 2)

• Supports charging of up to 3A 5V

• Connect the Docking Station to a SuperSpeed USB

10Gbps Peripheral or Storage Device (e.g. ash

drive), using a SuperSpeed USB-C 10Gbps (USB 3.2

Gen 2) Cable

4Power Button

• Powered ON by default

• Solid White LED indicates the Docking Station is

receiving power and is powered ON

• Press and release the Power Button to power ON the

Docking Station

Side View

USB-C™ Quad-4K Docking Station - DisplayPort and HDMI - 100W PD

PortSpecications and Installation

5Mounting Holes

• (Optional) Mount the Docking Station, using

appropriately sized Mounting Plate Assembly (sold

separately)

6Lock Slot• Secure the Docking Station to a stationary object

Rear View

PortSpecications and Installation

7DC 20V Port

• Connect the Docking Station to a Power Source,

using the Universal Power Adapter

8USB-C Host Port

• SuperSpeed USB 10Gbps (USB 3.2 Gen 2)

• Charge the Host Device while using the Docking

Station

• USB Power Deliver (PD) 5/9/12/15/20V

• Connect the Docking Station to a to a Laptop, using

the SuperSpeed USB-C 10Gbps (USB 3.2

Gen 2) Host Cable

9USB-A Device Ports

• SuperSpeed USB 5Gbps (USB 3.2 Gen 1)

• Maximum 0.9A for downstream charging

• Connect the Docking Station to two SuperSpeed

USB 5Gbps Peripherals and/or Storage Devices (e.g.

ash drives), using a SuperSpeed USB 5Gbps (USB 3.2

Gen 1) Cable

10RJ45 Port

• 10/100/1000 Mbps

• Connect the Docking Station to a Network Device,

using a Network Cable

1

23

41

11

7

10

98

6

5

*Actual product may vary from photos

*Actual product may vary from photos

*Actual product may vary from photos
