Quick-Start Guide

To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.

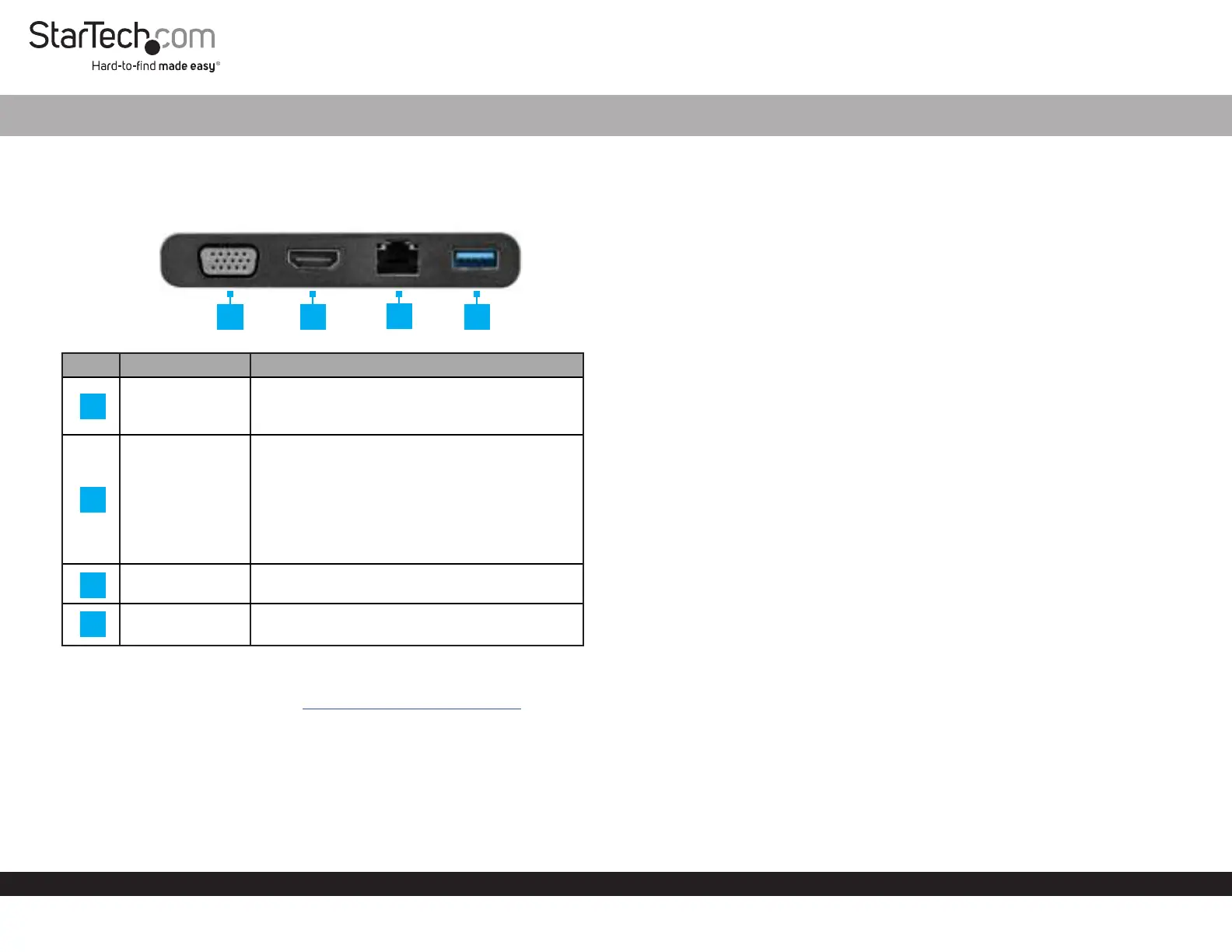

Product Diagram (DKT30CHVCM)

Front View

PortFunction

VGA Port

• Connect a VGA Video Display Device to the

Host Computer.

• Max resolution 1920x1200@60Hz.

HDMI Port

• Connect an HDMI Video Display Device to

the Host Computer.

• Max resolution 4096 x 2160p @ 24Hz or 3860 x

2160p @ 30Hz.

Note: The Multiport Adapter is a single video

display adapter. You can connect either an

HDMI Display or a VGA Display.

RJ45 Port

• Connect a Network Device to the Host

Computer.

USB-A Port

• Connect a USB Device to the Multiport

Adapter (Flash Drive, Mouse, etc.).

Requirements

For the latest requirements, please visit

www.startech.com/DKT30CHVCM.

USB-C Multiport Adapter with HDMI | VGA

1

Connecting the Multiport Adapter

Note:The Multiport Adapter is a single video display adapter. You can connect

either an HDMI Display or a VGA Display. If you connect a Display to both the

HDMI Port and VGA Port only the Display connected to the HDMI Port will function

correctly.

VGA Port

The VGA Port is used to connect the Multiport Adapter to a VGA Device.

1. Connect a VGA Cable to the VGA Port on the Multiport Adapter.

2. Connect the other end of the VGA Cable to the VGA Port on a Video Display

Device and (if applicable) tighten the two screws on either side on the VGA

Connector.

HDMI Port

The HDMI Port is used to connect the Multiport Adapter to an HDMI Device.

1. Connect an HDMI Cable to the HDMI Port on the Multiport Adapter.

2. Connect the other end of the HDMI Cable to an HDMI In Port on a Video Display

Device.

RJ45 Port

The RJ45 Port is used to connect a Network Device to the Multiport Adapter.

1. Connect a CAT5e/CAT6 Cable to the RJ45 Port on the Multiport Adapter.

2. Connect the other end of the CAT5e/CAT6 cable to an RJ45 Port on a compatible

Network Device.

USB-A Port

The USB-A Port can be used to connect a USB storage device (e.g. Flash Drive) or other

USB peripheral device (e.g. Keyboard, Mouse, etc.).

• Connect a USB-A Connector/Device to the USB-A Port on the Multiport Adapter.

2

4

3

1

2

4

3
