Quick-Start Guide

To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.

Manual Revision: January 14, 2020 10:02 AM

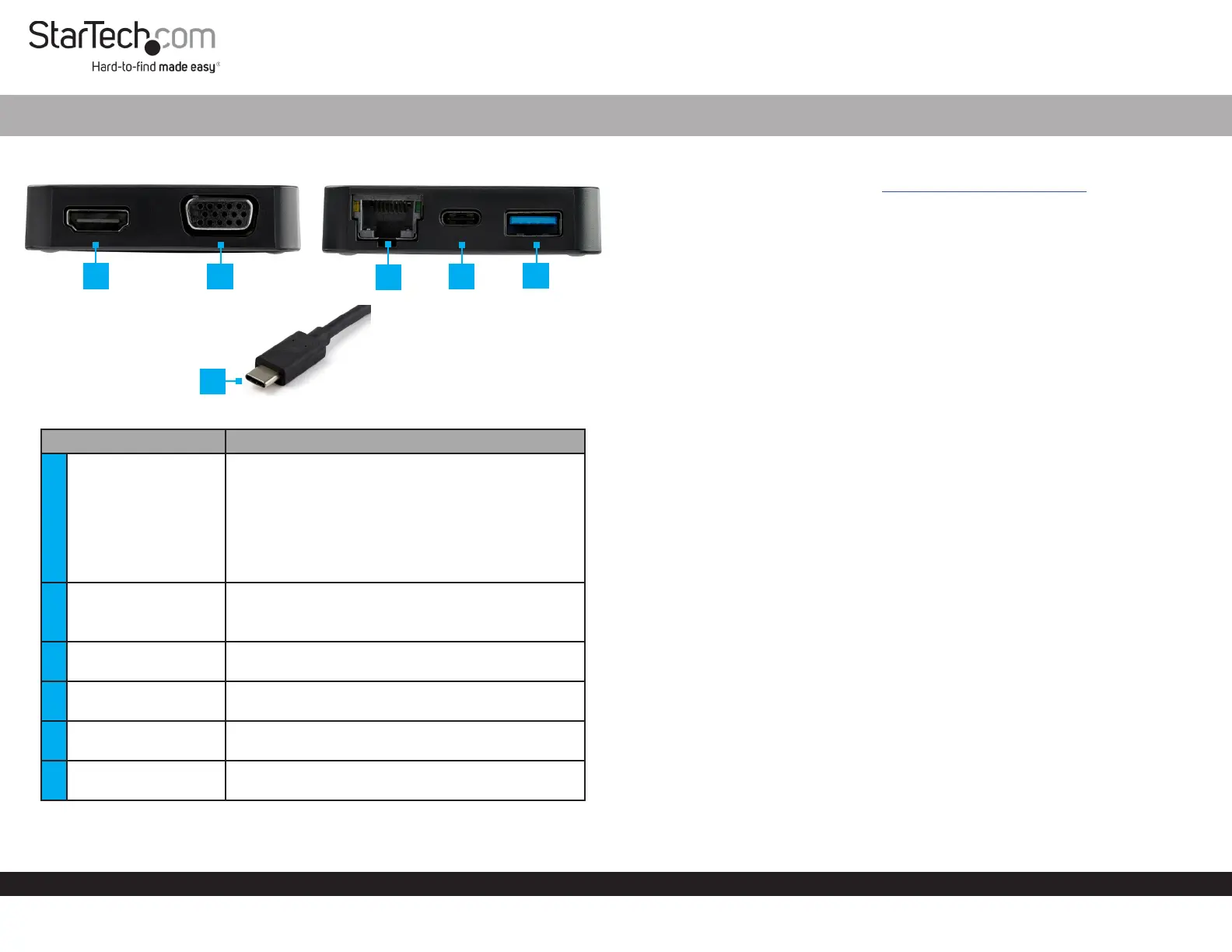

Product Diagram (DKT31CHVL)

ComponentFunction

1HDMI Port

• Connect a HDMI Display Device to the Multiport

Adapter.

• Maximum Video Resolution = 3840 x 2160 /30Hz

(4k UltraHD)

Note: Only one video output port can be used at a

time (HDMI or VGA). If two displays are connected,

the HDMI port takes priority and VGA is disabled.

2VGA Port

• Connect a Display Device to the Multiport

Adapter.

• Maximum Video Resolution = 1920 x 1080 /60Hz

3RJ45 Port

• Connect the Multiport Adapter to a Network

Device.

4USB-C Port

• Connect a USB Peripheral to the Multiport

Adapter (ash drive, keyboard, etc.).

5USB-A Port

• Connect a USB Peripheral to the Multiport

Adapter (mouse, keyboard, etc.).

6USB-C Connector

• Connects the Multiport Adapter to a USB-C Port

on a Host Computer.

USB-C™ 10Gbps Multiport Adapter | 4K HDMI or VGA | USB-C and USB-A | Extended Cable

Requirements

For the latest requirements, please visit www.startech.com/DKT31CHVL

Host

• Host Computer that is DP Alt Mode compatible

Cables

• CAT5e/6 Cable

• HDMI Cable

• VGA Cable

Display

• Display Device that is HDMI or VGA compatible

Connecting the Multiport Adapter

1. Connect an HDMI Cable (sold separately) to the HDMI Port on the Multiport

Adapter and the other end to an HDMI port on a Display Device.

- or -

2. Connect a VGA Cable (sold separately) to the VGA Port on the Multiport Adapter

and the other end to a VGA port on a Display Device.

Notes: Only one video output port can be used at a time (HDMI or VGA). If two displays

are connected, the HDMI port takes priority.

The Host Computer must support DP Alt Mode in order to connect a Display Device

to the Multiport Adapter.

3. Connect a Peripheral Device to the USB-C Port on the Multiport Adapter (e.g.

keyboard, ash drive, etc.).

4. Connect a Cat5e/6 Cable (sold separately) to the RJ45 Port on the Multiport

Adapter and the other end to a Network Device.

5. Connect the Multiport Adapter’s built-in USB-C Cable to a USB-C port on a Host

Computer.

Powering the Multiport Adapter

The Multiport Adapter is bus-powered (powered by the Host Computer’s USB-C

port) and does not require or support a separate power adapter.

1

2

3

4

5

6
