ET1000SM40LC

Gigabit Single Mode Fiber Media Converter

LC - 40 km

Installation Guide

Packaging Contents

1 x ET1000SM40LC media converter•

1 x Power Adapter•

1 x Installation Guide•

System Requirements

1000Base network infrastructure•

Single Mode fiber cable•

Installation

Connect the fiber network cable to the LC connector on 1.

the fiber media converter. Using UTP Ethernet cable,

connect the cable to the RJ45 jack.

Set the Auto/Force switch on the media converter, to 2.

turn auto negotiate on or off. If set to Force, set the

Duplex switch (full/half) according to the specifications

of your networking equipment.

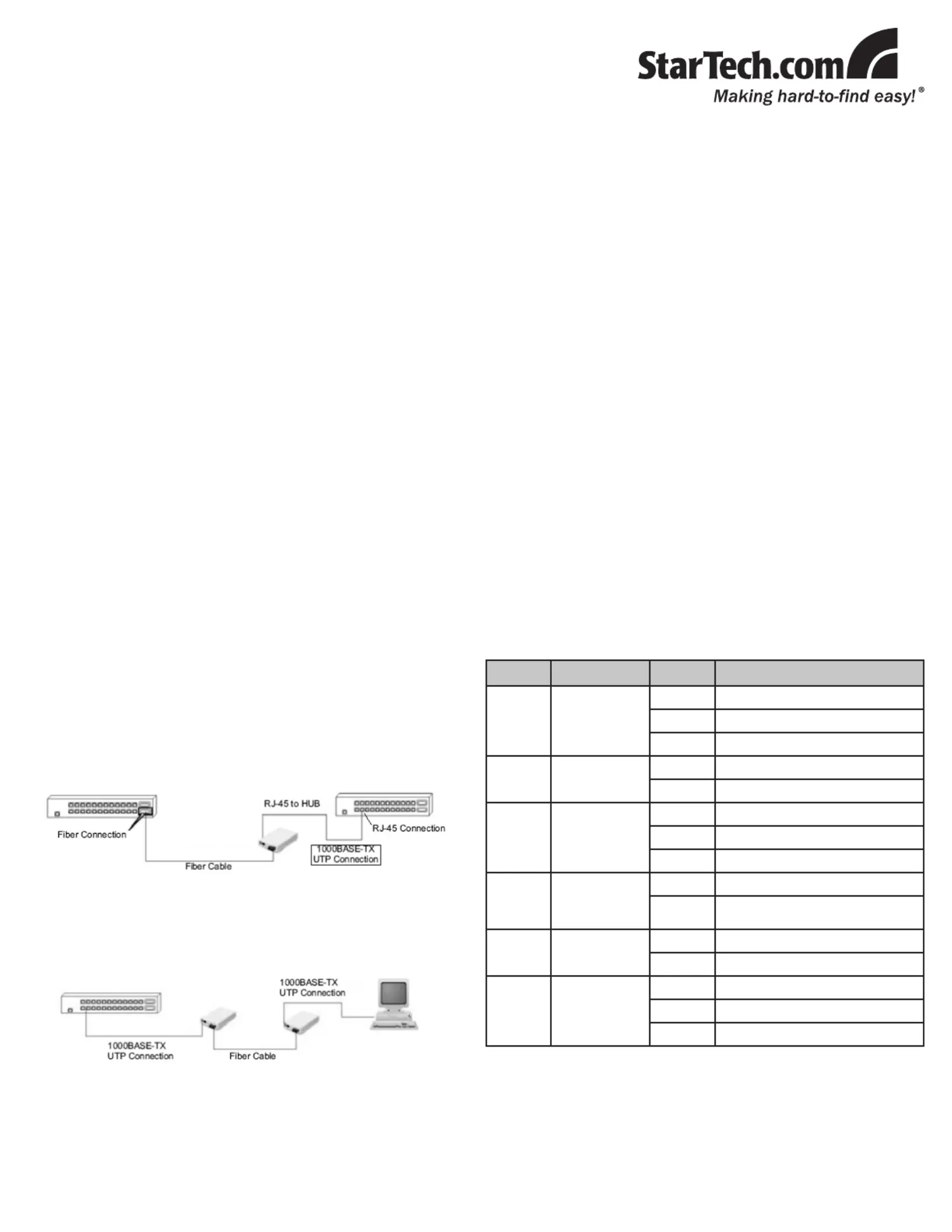

The following example illustrates the connection 3.

scheme when connecting from a 1000Base-TX port of

a hub/switch to a 1000Base-SX/LX port of another hub/

switch, through the fiber media converter:

The following example illustrates the connection 4.

scheme when connecting from a 1000Base-TX port on

a hub/switch to a 1000BASE-TX Network Interface Card

(NIC) in a computer through the fiber media converter:

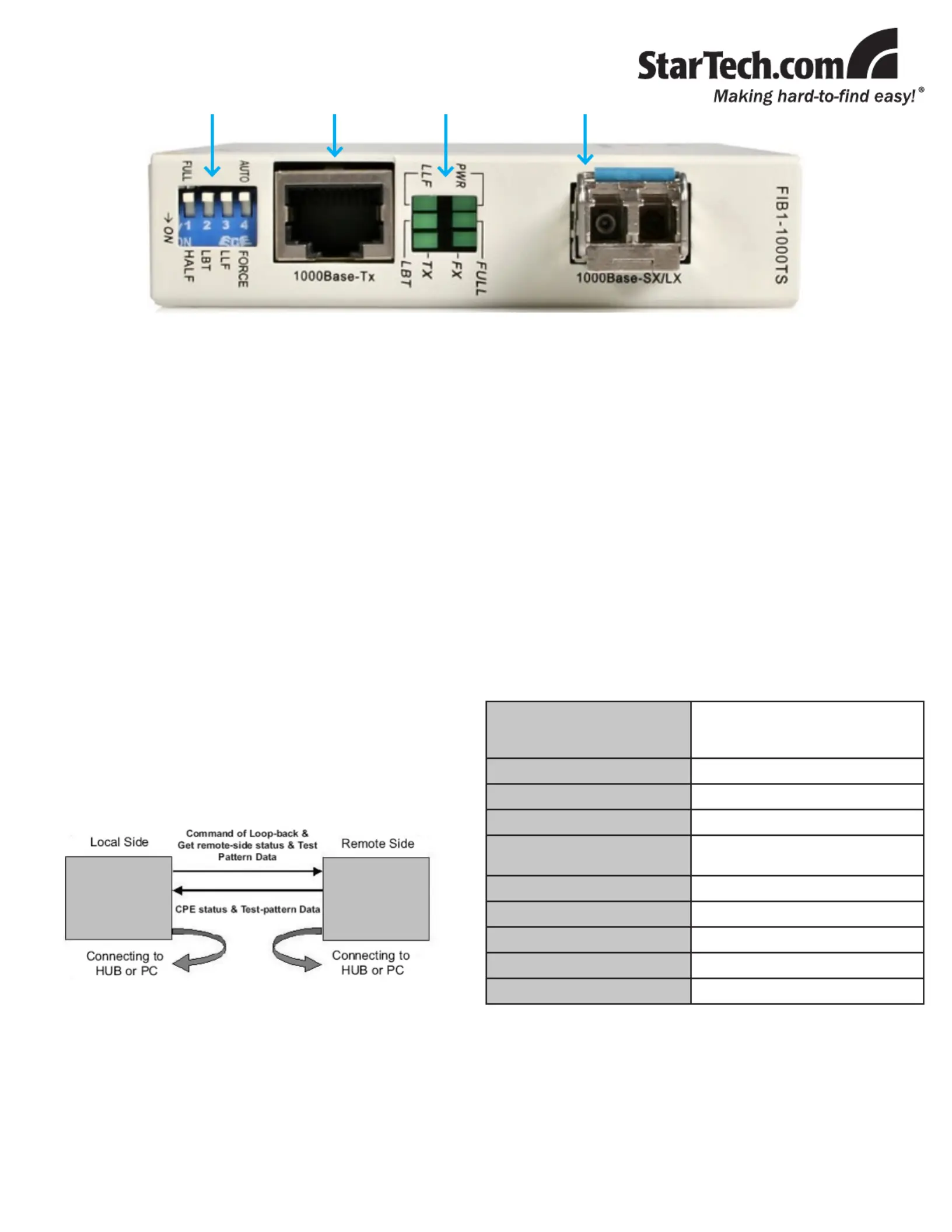

DIP Switch Conguration

Full/ Half:

The Fiber and UTP Duplex will be configured in Full

duplex or Half duplex.

This switch includes an “Auto Reset” function so the *

power-reset is not necessary when any modification is

made here.

LBT:

Loop-back test and get remote side status :

(OFF = Not Active, ON = Active).

If the local side loop-back test is active, then LEDs *

(except PWR) will all blink rapidly and refresh to display

the remote side status.

LLF:

Link Loss Forwarding (OFF = Not active, On = Active)

Auto/Force:

Auto negotiate duplex mode, or force Full/Half via DIP

switches.

LED Conguration

LEDNameStatusDescription

PWRPower

ONUnit is powered

OFFUnit is not powered

BlinkLBT mode enabled

FullDuplex Mode

ONFiber side Full Duplex Mode

OFFHalf Duplex Mode

FXFiber Link

ONFiber link is detected

OFFFiber link is not detected

BlinkFiber activity

LBT

Loop-back

Test/Get CPE

status

BlinkMode enabled

OFFMode disabled

LLF

Link Loss

Forwarding

ONMode enabled

OFFMode disabled

TXEthernet Link

ONUTP link is detected

OFFUTP link is not detected

BlinkUTP activity
