Instruction Manual

DE: Bedienungsanleitung - de.startech.com

FR: Guide de l'utilisateur - fr.startech.com

ES: Guía del usuario - es.startech.com

IT: Guida per l'uso - it.startech.com

NL: Gebruiksaanwijzing - nl.startech.com

PT: Guia do usuário - pt.startech.com

Manual Revision: 06/17/2016

For the most up-to-date information, please visit: www.startech.com

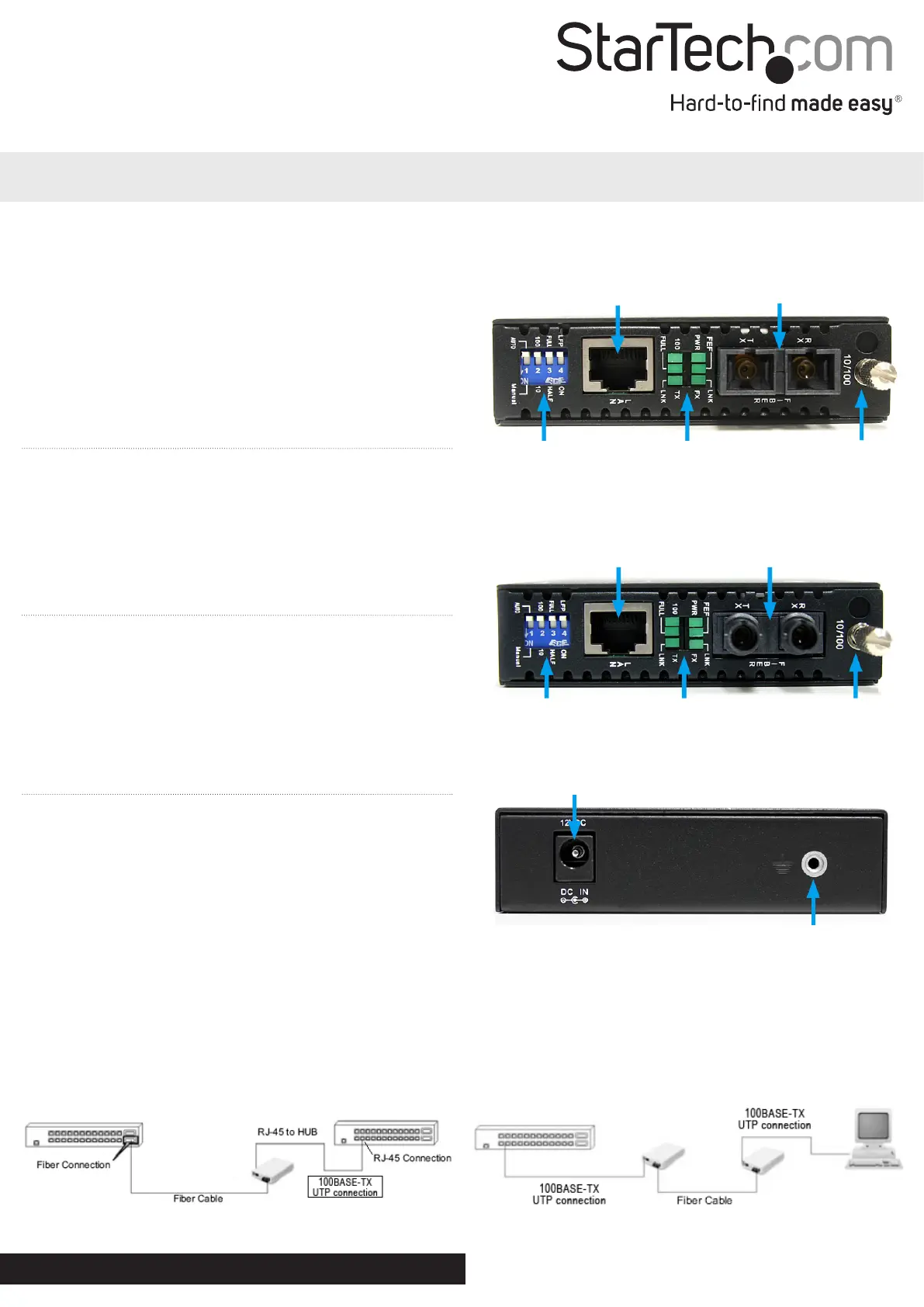

ET90110SC2 / ET90110ST2

10/100 Mbps Ethernet to Multi Mode SC/ST Fiber Media Converter - 2 km

Packaging Contents

• 1 x Fiber Media Converter

• 1 x Universal Power Adapter

• 4 x Power Adapter Plug (NA/ UK/ EU/AU)

• 1 x Grounding Screw

• 1 x Instruction Manual

System Requirements

• 10BASE-T or 100Base-TX compatible Ethernet network equipment

• RJ45 terminated UTP Cat5 or better Ethernet cable

• 100BASE-FX compatible ber optic network equipment

• SC or ST terminated multi mode ber optic cable

• Available AC electrical outlet

Installation

1. Make sure the DIP switches are set appropriately for your network

conguration (see “DIP Switch Settings“ section for details).

2. Connect the ber optic network cable from a computer/switch/

media converter to the SC/ST connector on the media converter.

NOTE: When connecting the ber cable, make sure to connect the

Tx (transmit) terminal on one end, with the Rx (receive) terminal on

the other end.

3. Connect a UTP Ethernet cable, from a computer/switch to the

RJ45 jack on the media converter.

4. Connect the power adapter to the media converter.

5. The following example illustrates the connection scheme when

connecting from a 10BASE-T or 100BASE-TX Ethernet port of

a hub/switch to a 100BASE-FX port of another hub/switch,

through the ber media converter:

6. The following example illustrates the connection scheme when

connecting from a 100BASE-TX Ethernet port on a hub/switch

to a 100BASE-TX Ethernet Network Interface Card (NIC) in a

computer through the ber media converter:

ET90110SC2

ET90110ST2

*actual product may vary from photos

RJ45 Ethernet

connector

SC Duplex ber

connector

DIP SwitchesLED indicatorsCard Release

Thumbscrew

DIP SwitchesLED indicatorsCard Release

Thumbscrew

RJ45 Ethernet

connector

SC Duplex ber

connector

DC Power connector

Ground Point (optional)

Rear View (ET90110SC2/ET90110ST2)
