Instruction Manual

DE: Bedienungsanleitung - de.startech.com

FR: Guide de l'utilisateur - fr.startech.com

ES: Guía del usuario - es.startech.com

IT: Guida per l'uso - it.startech.com

NL: Gebruiksaanwijzing - nl.startech.com

PT: Guia do usuário - pt.startech.com

Manual Revision: 02/02/2021

For the most up-to-date information, please visit: www.startech.com

MCM110SC2 / MCM110SC2GB / MCM110SC2EU

MCM110ST2 / MCM110ST2GB / MCM110ST2EU

10/100 Ethernet to Multi Mode Fiber Media Converter SC/ST 2km

Packaging Contents

• Fiber/Ethernet media converter

• Power Adapter

• Instruction Manual

System Requirements

• 10/100Base-TX compatible Ethernet network

• 100Base-FX ber network

• SC/ST multi-mode ber cable

• Available AC electrical outlet

Installation

1. Connect the Ethernet cable to the Fiber Media Converter “LAN” port.

2. Connect the other end of the Ethernet cable to the router/switch/

computer NIC.

3. Connect the ber cable into the ber receptacle on the media converter.

4. Plug the provided power adapter into the media converter, and

into an available AC power outlet.

5. Connect the other end of the ber cable into the router/switch/

computer NIC/another media converter. Remember to reverse

the TX and RX leads between the two devices.

DIP Switch Settings

Switch Function StatusState

SW1 UTP Mode

Auto Auto UTP detection

Manual Use manual UTP settings

SW2* UTP Speed

100 100Mbps link speed

10 10Mbps link speed

SW3* UTP Duplex

Full Full duplex

Half Half duplex

SW4

Link Fault Pass-

through

LFP LFP mode o

ON LFP mode on

*not enabled when SW1 set to ‘Auto’

LED Indicators

LED Function StatusState

PWR

Power

Indicator

ON Converter has power

OFF

Converter has no

power

FX Link/Act

Fiber Link/

Activity

ON Fiber link OK

OFF No link detected

Flashing Receiving data

FEF Far End Fault

ON Far end link failure

OFF No failure detected

100 Mode

ON 100Mbps

OFF 10Mbps

Full Duplex Mode

ON Full duplex mode

OFF Half duplex mode

TX Link/Act

Ethernet Link/

Activity

Ethernet link

detected

OFF No link detected

Flashing Receiving data

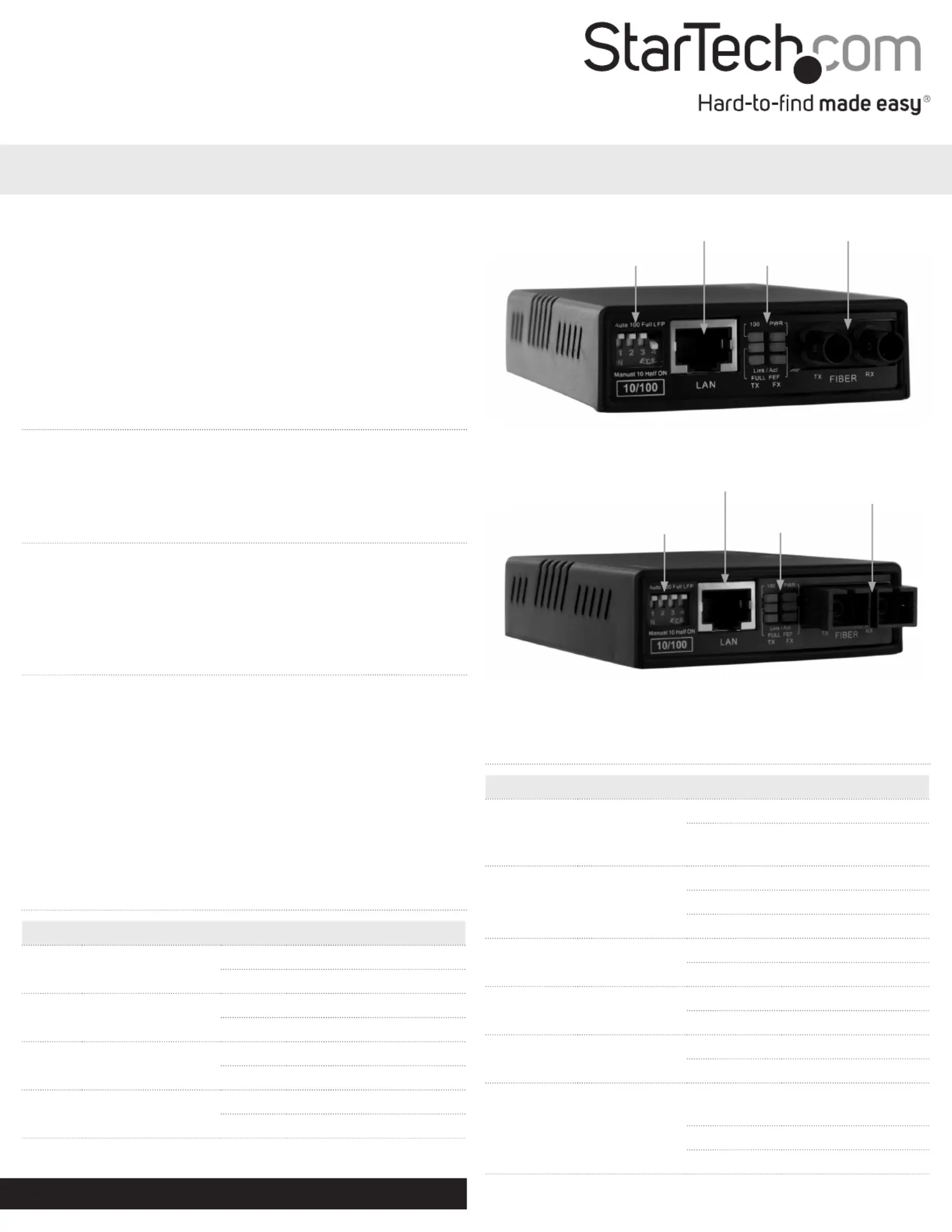

*actual product may vary from photos

DIP Switches

LED Indicators

RJ45 Ethernet

Connector

ST Fiber

Connectors

DIP Switches

LED Indicators

RJ45 Ethernet

Connector SC Fiber

Connectors

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against

harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause

harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s)

to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby acknowledges that all

trademarks, registered trademarks, service marks, and other protected names and/or symbols contained in this manual and related documents are the property of their respective holders.

Technical Support

StarTech.com’s lifetime technical support is an integral part of our commitment to provide industry-leading solutions. If you ever need help with your product, visit www.startech.com/support and access

our comprehensive selection of online tools, documentation, and downloads.

For the latest drivers/software, please visit www.startech.com/downloads

Warranty Information

This product is backed by a two year warranty.

In addition, StarTech.com warrants its products against defects in materials and workmanship for the periods noted, following the initial date of purchase. During this period, the products may be returned

for repair, or replacement with equivalent products at our discretion. The warranty covers parts and labor costs only. StarTech.com does not warrant its products from defects or damages arising from

misuse, abuse, alteration, or normal wear and tear.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their ocers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental,

consequential, or otherwise), loss of prots, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. Some states do not allow

the exclusion or limitation of incidental or consequential damages. If such laws apply, the limitations or exclusions contained in this statement may not apply to you.

Specications

MCM110SC2 MCM110ST2

Connectors

1 x RJ45 Ethernet

2 x SC Fiber

1 x Power

connector

1 x RJ45 Ethernet

2 x ST Fiber

1 x Power

connector

LEDs

Power, Fiber Link/Activity, Ethernet Link/

Activity, 10/100, Full/Half Duplex, FEF

Fiber Type Multi-Mode (62.5 or 50/125 micron)

Optical Wavelength 1310nm

Maximum Distance 2 km

Transmission

Standards

IEEE802.3 10BASE-T, IEEE802.3u

100BASE-TX, l00BASE-FX

Duplex Modes

Full/Half Duplex (Ethernet)

Full Duplex (Fiber)

Power Adapter

12VDC, 200mA, center positive,

type M plug

Enclosure Material Plastic

Operating

Temperature

0°C ~ 50°C (32°F ~ 122°F)

Storage Temperature -10°C ~ 70°C (14°F ~ 158°F)

Humidity 10% ~ 90% RH

Dimensions 95.0mm x 7

Weight 90.5

Produktspezifikationen

Marke:	StarTech.com
Kategorie:	Media Player
Modell:	MCM110ST2
Breite:	75 mm
Tiefe:	95 mm
Gewicht:	82 g
AC-Netzadapter:	Ja
Übertragungstechnik:	Kabelgebunden
Höhe:	20 mm
Betriebstemperatur:	0 - 50 °C
Relative Luftfeuchtigkeit in Betrieb:	10 - 90 %
Verpackungsbreite:	145 mm
Verpackungstiefe:	175 mm
Verpackungshöhe:	61 mm
Paketgewicht:	273 g
Netzstandard:	IEEE 802.3, IEEE 802.3u
Zertifizierung:	CE, FCC, TAA, REACH
Stromverbrauch (Standardbetrieb):	2.4 W
Power over Ethernet (PoE):	Nein
Anzahl Ethernet-LAN-Anschlüsse (RJ-45):	1
Betriebsanleitung:	Ja
Gehäusematerial:	Kunststoff
Maximale Datenübertragungsrate:	100 Mbit/s
Ethernet LAN Datentransferraten:	10, 100 Mbit/s
Eingebaut:	Nein
LED-Anzeigen:	Ja
Temperaturbereich bei Lagerung:	-10 - 70 °C
Stromstecker-Typ:	Typ M
Mittlere Betriebsdauer zwischen Ausfällen (MTBF):	65000 h
Ausgangsstrom:	0.2 A
Ausgangsspannung:	12 V
Eingangsspannung:	100 - 240 V
Nachhaltigkeitszertifikate:	RoHS
Maximal mögliche Übertragungsstrecke:	2000 m
Wellenlänge:	1310 nm
Datenübertragungsrate:	100 Mbit/s
Optischer Kabelverbinder:	ST
Duplex-System:	Full, Half
Link-Budget:	11 dB
Sensitivität:	-31 dBmW
Converter Eingangsschnittstelle:	10Base-T, 100BASE-FX, 100Base-TX
Wellenlängen-Multiplex-Technik (WDM):	Nein
