Instruction manual

DE: Bedienungsanleitung - de.startech.com

FR: Guide de l'utilisateur - fr.startech.com

ES: Guía del usuario - es.startech.com

IT: Guida per l'uso - it.startech.com

NL: Gebruiksaanwijzing - nl.startech.com

PT: Guia do usuário - pt.startech.com

Manual Revision: 09/01/2015

For the latest information, technical specications, and support for

this product, please visit www.startech.com/MCM1110SFP.

Packaging contents

• 1x ber media converter with open SFP slot

• 1x universal power adapter (NA/EU/UK/AU)

System requirements

• MSA-compliant Gigabit SFP module (Mini-GBIC)

• 10/100/1000 Mbps Ethernet network equipment

• RJ45 terminated UTP Cat5e or better Ethernet cable

• Terminated ber-optic cable (dependent on the SFP transceiver

module used)

• AC electrical outlet

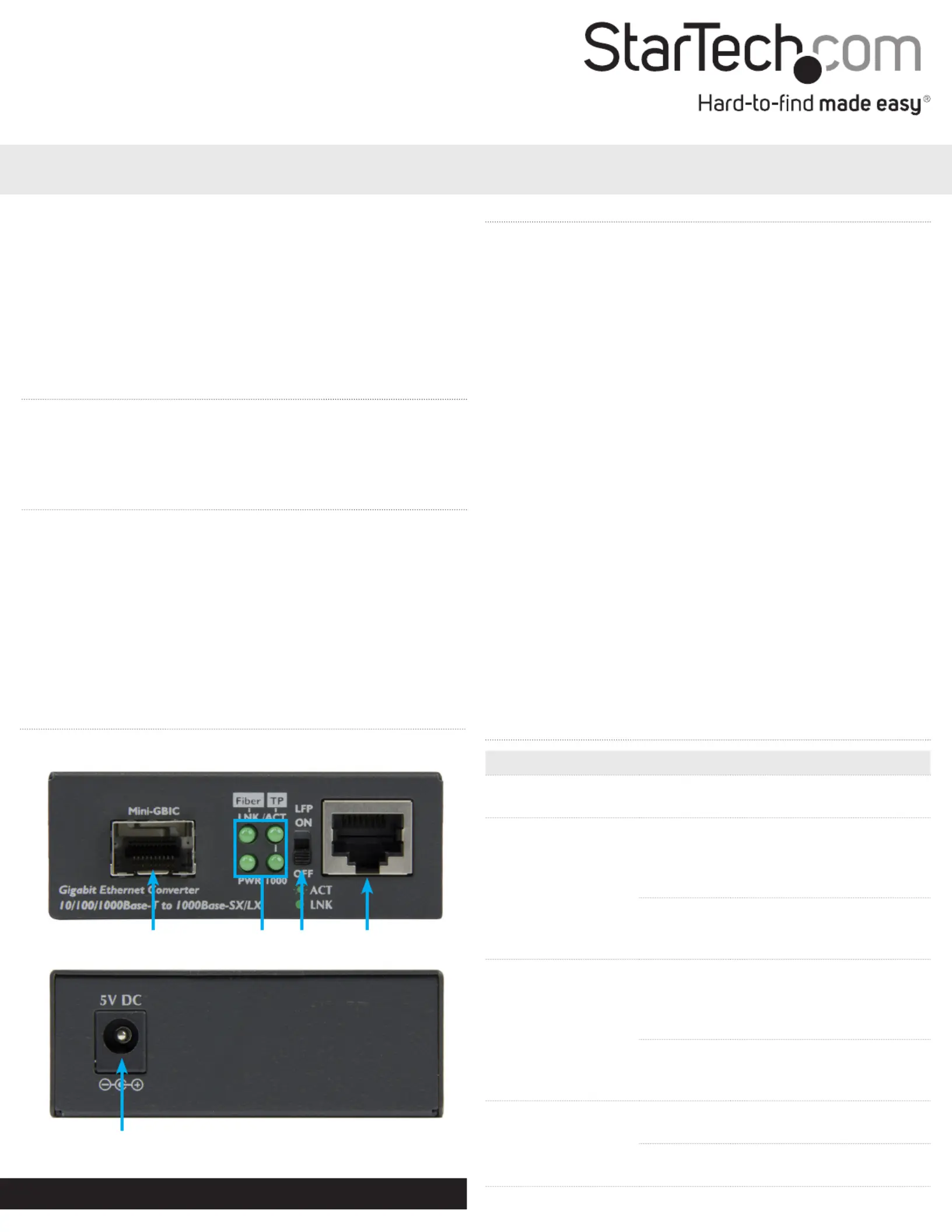

Product diagram

Front view

Rear view

MCM1110SFP

Gigabit Ethernet Fiber Media Converter with Open SFP Slot

LEDs

LFP DIP

switch

SFP slot

RJ45

port

DC input port

Install the media converter

1. Turn o the networking equipment that will be connected to the

media converter.

2. Remove the dust cover and insert a Gigabit MSA-compliant SFP

module into media converter’s SFP slot. The SFP transceiver used

should depend on your ber network infrastructure.

Note: The media converter can only be used with Gigabit SFP

modules and will not support 10/100Mbps modules.

3. Connect a duplex ber-optic cable from the media converter’s

SFP module to your ber network device.

The TX and RX connectors must be paired at both ends of the

connection. For example TX to RX, and RX to TX.

4. Connect an RJ45 Cat 5e/6 Ethernet cable from the media

converter’s RJ45 port to your 10/100/1000Mbps network device.

5. Select the appropriate regional clip for your region and connect

the power adapter to an AC electrical outlet.

6. Connect the power adapter to the media converter’s DC input.

The LED (power) should light up solid.PWR

7. Turn the networking equipment from step #1 back on. The Fiber

and LEDs should light up solid when all cables and TP LNK/ACT

devices are properly connected.

Note: Check the link budget of your SFP modules, as well as the

module’s intended wiring distance. SFP modules are designed to

transmit signals over large distances. If the physical wiring distance

is too short, the transmitting optical signal (laser) may be too strong

and damage the receiving SFP module. An in-line optical attenuator

may be required to protect them from damage.

LED indicators

LEDStatusIndication

PWR (Green)Solid

The media converter is

powered on

Fiber LNK/ACT

(Green)

Solid

A ber link between the

media converter and ber

network equipment is

established

Flashing

The ber port is actively

sending or receiving data

(activity)

TP LNK/ACT (Green)

Solid

An RJ45 Ethernet link

between the media

converter and RJ45 network

equipment is established

Flashing

The RJ45 port is actively

sending or receiving data

(activity)

TP 1000 (Green)

Solid

A Gigabit (1000Mbps) link on

the RJ45 port is established

O

The RJ45 port is running at

10/100Mbps speeds
