Quick-Start Guide
To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.
Manual Revision: September 3, 2021 3:41 PM

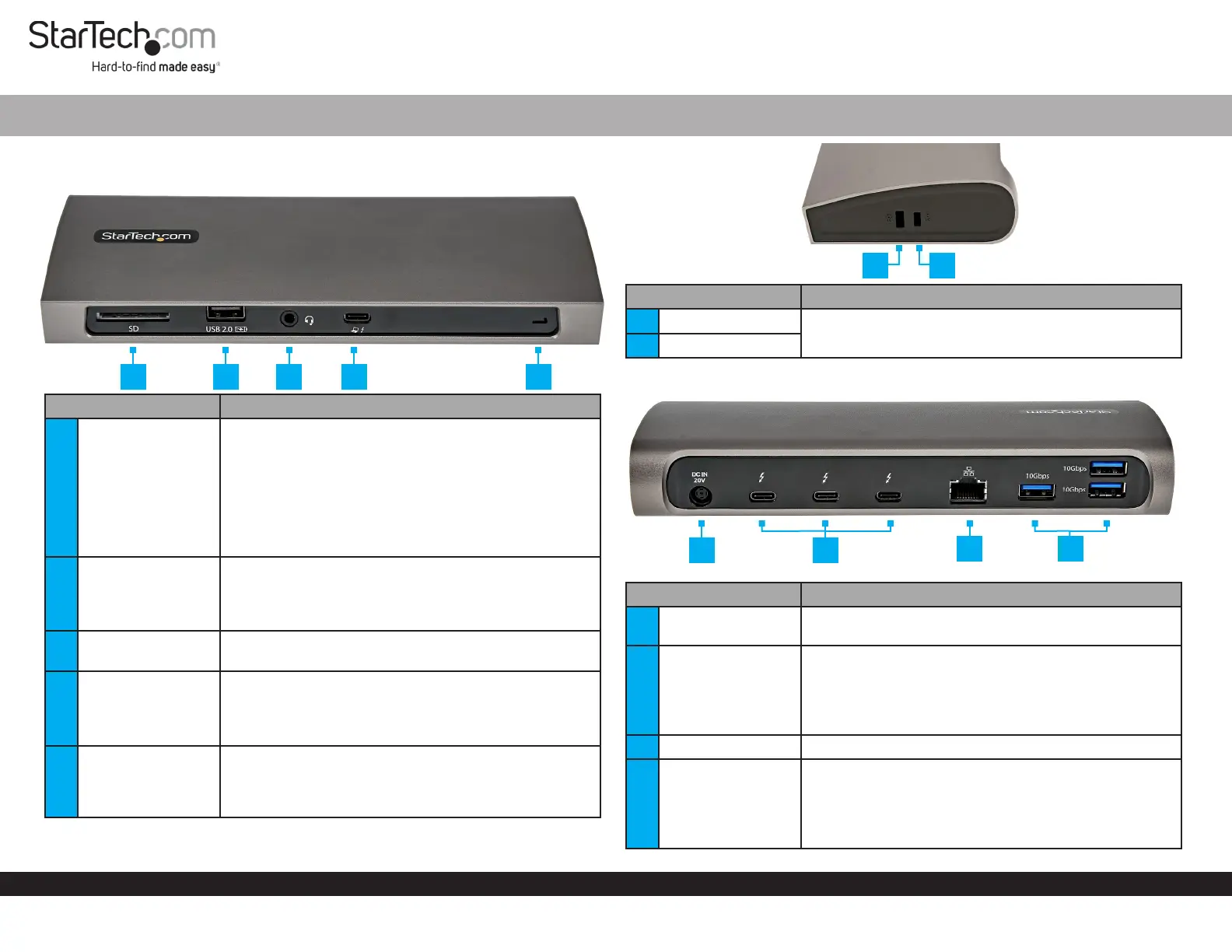

Product Diagram (TB4CDOCK / TB4CDOCKUE)
Front
PortFunction
1
SD Card Slot
• Secure Digital (SD) 4.0 UHS-II, SD 3.0, 2.0, 1.1, and 1.0
compatibility
• Push an SD Card, label side up, into the SD Card Slot until it
clicks into place
Note: The Host Computer’s Operating System (OS) will
automatically detect the SD Card and install the required
driver software.
• Push then pull the SD Card to remove
2
USB-A Charge Port
• USB 2.0 (480 Mbps)
• BC 1.2 Maximum 7.5W (5V/1.5A) power output
• Connect a USB-A Peripheral and/or Storage Devices (e.g.
ash drives), using USB Cables
3
3.5mm Audio Port
• Connect an Audio Device
• 4 Position TRRS Audio Jack for Headset use
4
Thunderbolt 4 Host
Port
• Thunderbolt 4
• Connect/charge the Host Computer
Note: A maximum of 96 watts of Power Delivery is
available for the Host Computer.
5
Power LED Indicator
• Solid White LED indicates the Docking Station is receiving
power and is powered ON
• Solid Green LED indicates the Docking Station is
connected to a Host Computer
Thunderbolt 4 / USB4™ Docking Station - Dual 4K 60Hz Display - Single 5K/8K - Up to 96W Power Delivery
Side
PortFunction
6
Lock Slot
• Lock the Docking Station to a secure stationary object
7
Nano Lock Slot
Rear
PortFunction
8
DC 20V Port
• Connect the Universal Power Adapter to power the
Docking Station
9
Thunderbolt 4
Device Ports (x3)
• Thunderbolt 4
• Supports Thunderbolt 4, Thunderbolt 3, USB-C devices and
up to two 4K monitors or a single 5K/8K monitor
• Supports DisplayPort and HDMI monitors (adapters sold
separately)
10
RJ45 Port• Connect to a 10/100/1000Mbps Network Device
11
USB-A Ports (x3)
• SuperSpeed USB 10Gbps (USB 3.2 Gen 2)
• Supports charging of up to 5V/0.9A per port
• Connect up to 3 SuperSpeed USB 10Gbps Peripherals
and/or Storage Devices (e.g. ash drive), using a
SuperSpeed USB-A 10Gbps (USB 3.2 Gen 2) Cable
12345
6
7
8
10
9
11
