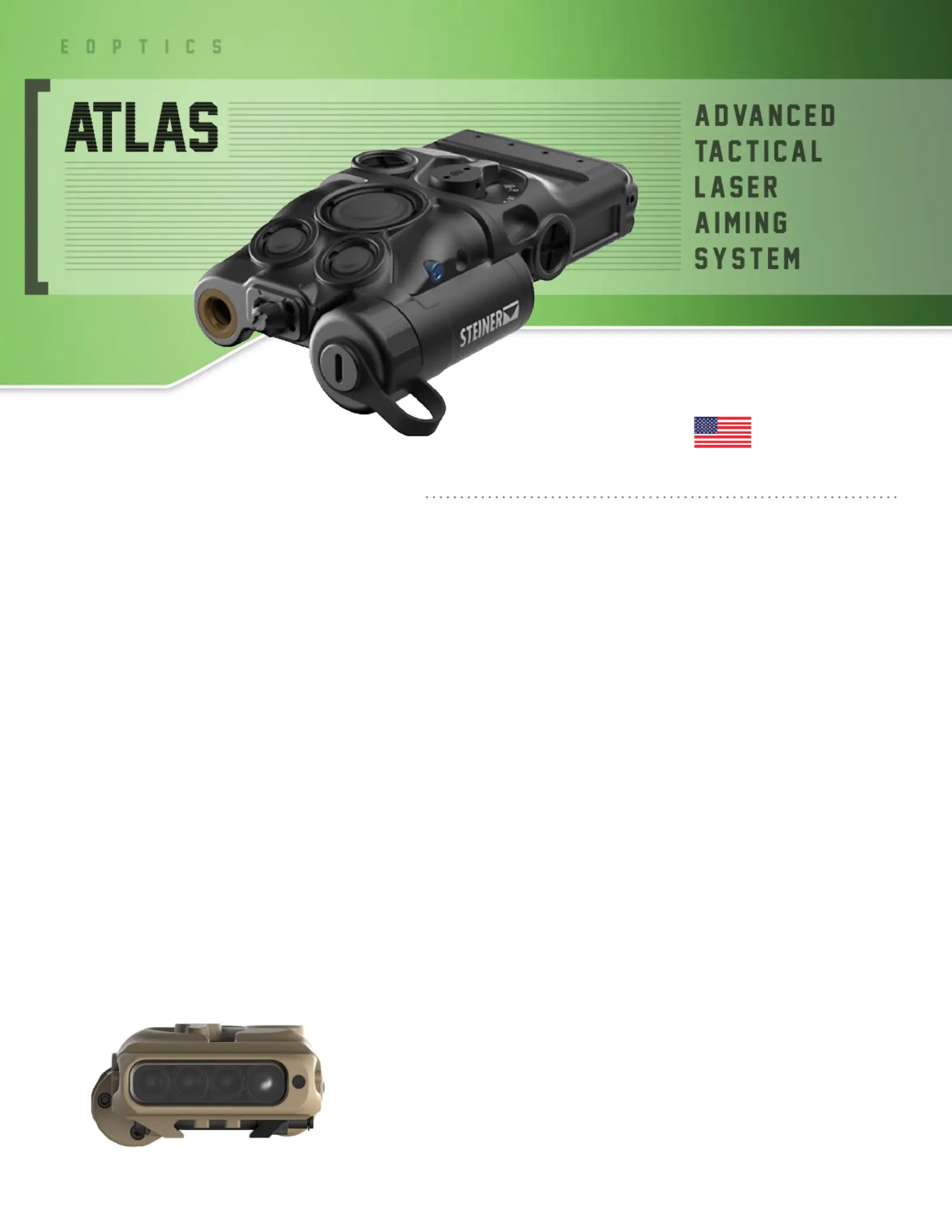

ATLAS EMITTERS
• VISIBLE (VIS) LASER POINTER
• NEAR INFRARED (NIR) LASER POINTER
• LONG-RANGE NIR (VCSEL)
LASER ILLUMINATOR
• MID-RANGE NIR LED ILLUMINATOR
• SHORT-RANGE NIR LED ILLUMINATOR
OVERALL FEATURES
LASER POINTERS & ILLUMINATORS FOR REAL TIME
MISSION REQUIREMENTS
• Co-aligned visible laser pointer, near infrared laser pointer and
long-range near infrared illuminator with a single set of adjusters
for easy zeroing and co-alignment retention
• Pointer beam divergence of 0.5mrad for ultra-long-range target
engagement
• Ultra-wide 40° – 50° Fixed LED NIR illuminator beam divergence
for CQB operations
• Medium range 10° – 15° LED NIR illuminator beam
• Long range 2° – 3° VSCEL Illuminator beam with Minimum Speckle
EXCEPTIONAL ERGONOMICS
• Low-profile integrated mount ensures a low height above the rail for
seamless use with standard optics
• 5-position mode switch and 3 tactile buttons within fingertip range
• All controls optimized around the operator
• True ambidextrous controls, centered for left or right-handed operation
with prominent positioning for use with gloved hands
• Durable magnesium-alloy metal body ensures light weight
Available in black and
flat dark earth.
ADVANCED TACTICAL LASER
AIMING SYSTEM (ATLAS)
EMITTERS 5
3 POWER OUTPUTS HIGH/MED/LOW
1 CLICK ILLUMINATOR ADJUSTMENT
BEST-IN-CLASS ERGONOMICS
Proudly designed, machined
and assembled in the USA.
GENERAL SPECIFICATIONS
BEAM
DIVERGENCE
WAVE-
LENGTH
POWER
OUTPUT
LASER
TYPE
NEW
ATLAS Advanced Tactical Laser Aiming System
SPECIFICATIONS
UNITED STATES
Steiner eOptics, Inc.
3475 Newmark Drive
Miamisburg, OH 45342
WW W. S T EI N E R- D E F EN S E .CO M
Specifications subject to change without notice.
Rev. 6
300712(E)-G01 300712(E)-G02 300712(E)-G03 300712(E)-G04 300712(E)-G-05 300712(E)-G06 300712(E)-G-07
Visible Laser Red class 3R Red class IIIb Red class IIIb Green class 3R Green class IIIb Green class 3R Red class 3R
IR Laser Pointer IR - class IIIb IR - class IIIb IR - class IIIb IR - class IIIb IR - class IIIb IR - class 1 IR - class 1
IR Laser Illuminator IR - class IIIb IR - class IIIb IR - class IIIb IR - class IIIb IR - class IIIb IR - class 3R IR - class 3R
Visible Red Laser <5 mW <5 0mW <8 0mW - - - <5 mW
Visible Green Laser - - - <5 mW <5 0mW <5 mW -
IR Laser Pointer <50 mW <50 mW <50 mW <50 mW <50 mW <0.7 mW <0.7 mW
IR Laser Illuminator <50 mW <50 mW <100 mW <50 mW <100 mW <4 mW <4 mW
IR LED Illuminators
White Light
<200 mW
-
<200 mW
-
<200 mW
-
<200 mW
-
<200 mW
-
<200 mW
-
<200 mW
-
Visible Red Laser 635 nm 635 nm 635 nm - - - 635 nm
Visible Green Laser - - - 520 nm 520 nm 520 nm -
IR Laser Pointer 835 nm 835 nm 835 nm 835 nm 835 nm 835 nm 835 nm
IR Laser Illuminator 835 nm 835 nm 835 nm 835 nm 835 nm 835 nm 835 nm
Visible Laser 0.5+/-0.3 mRad 0.5+/-0.3 mRad 0.5+/-0.3 mRad 0.5+/-0.3 mRad 0.5+/-0.3 mRad 0.5+/-0.3 mRad 0.5+/-0.3 mRad
IR Laser Pointer 0.5+/-0.3 mRad 0.5+/-0.3 mRad 0.5+/-0.3 mRad 0.5+/-0.3 mRad 0.5+/-0.3 mRad 0.5+/-0.3 mRad 0.5+/-0.3 mRad
IR Laser Illuminator 45 mRad 45 mRad 45 mRad 45 mRad 45 mRad 45 mRad 45 mRad
White Light - - - - - - -
Temperature -40°C to +65°C -40°C to +65°C -40°C to +65°C -40°C to +65°C -40°C to +65°C -40°C to +65°C -40°C to +65°C
Battery CR123A CR123A CR123A CR123A CR123A CR123A CR123A
Battery Life (Mode
Dependent)
>3 hours >3 hours >3 hours >3 hours >3 hours >3 hours >3 hours
Material Magnesium Alloy Magnesium Alloy Magnesium Alloy Magnesium Alloy Magnesium Alloy Magnesium Alloy Magnesium Alloy
Color Black (FDE) Black (FDE) Black (FDE) Black (FDE) Black (FDE) Black (FDE) Black (FDE)
Weight (with Battery) <200 g (<7 oz.) <200 g (<7 oz.) <200 g (<7 oz.) <200 g (<7 oz.) <200 g (<7 oz.) <200 g (<7 oz.) <200 g (<7 oz.)
Dimensions (LxWxH) 114 x 62 x 34mm
(4.5 x 2.5 x 1.4 in.)
114 x 62 x 34mm
(4.5 x 2.5 x 1.4 in.)
114 x 62 x 34mm
(4.5 x 2.5 x 1.4 in.)
114 x 62 x 34mm
(4.5 x 2.5 x 1.4 in.)
114 x 62 x 34mm
(4.5 x 2.5 x 1.4 in.)
114 x 62 x 34mm
(4.5 x 2.5 x 1.4 in.)
114 x 62 x 34mm
(4.5 x 2.5 x 1.4 in.)
Waterproof 20m for 2 hours 20m for 2 hours 20m for 2 hours 20m for 2 hours 20m for 2 hours 20m for 2 hours 20m for 2 hours
Mount Integrated
Bolt-Mount for MIL-
STD-1913 Rail
Integrated
Bolt-Mount for MIL-
STD-1913 Rail
Integrated
Bolt-Mount for MIL-
STD-1913 Rail
Integrated
Bolt-Mount for MIL-
STD-1913 Rail
Integrated
Bolt-Mount for MIL-
STD-1913 Rail
Integrated
Bolt-Mount for MIL-
STD-1913 Rail
Integrated
Bolt-Mount for MIL-
STD-1913 Rail
Windage & Elevation
Adjustment
Yes Yes Yes Yes Yes Yes Yes
Activation 3 Buttons: fore/
on, power selector,
illuminator selector
3 Switches: safety
interlock, output
selector, remote
3 Buttons: fore/
on, power selector,
illuminator selector
3 Switches: safety
interlock, output
selector, remote
3 Buttons: fore/
on, power selector,
illuminator selector
3 Switches: safety
interlock, output
selector, remote
3 Buttons: fore/
on, power selector,
illuminator selector
3 Switches: safety
interlock, output
selector, remote
3 Buttons: fore/
on, power selector,
illuminator selector
3 Switches: safety
interlock, output
selector, remote
3 Buttons: fore/
on, power selector,
illuminator selector
3 Switches: safety
interlock, output
selector, remote
3 Buttons: fore/
on, power selector,
illuminator selector
3 Switches: safety
interlock, output
selector, remote
Remote Cable Optional Optional Optional Optional Optional Optional Optional
Warranty 2-Year 2-Year 2-Year 2-Year 2-Year 2-Year 2-Year
