Seite 1/43
PN 54171

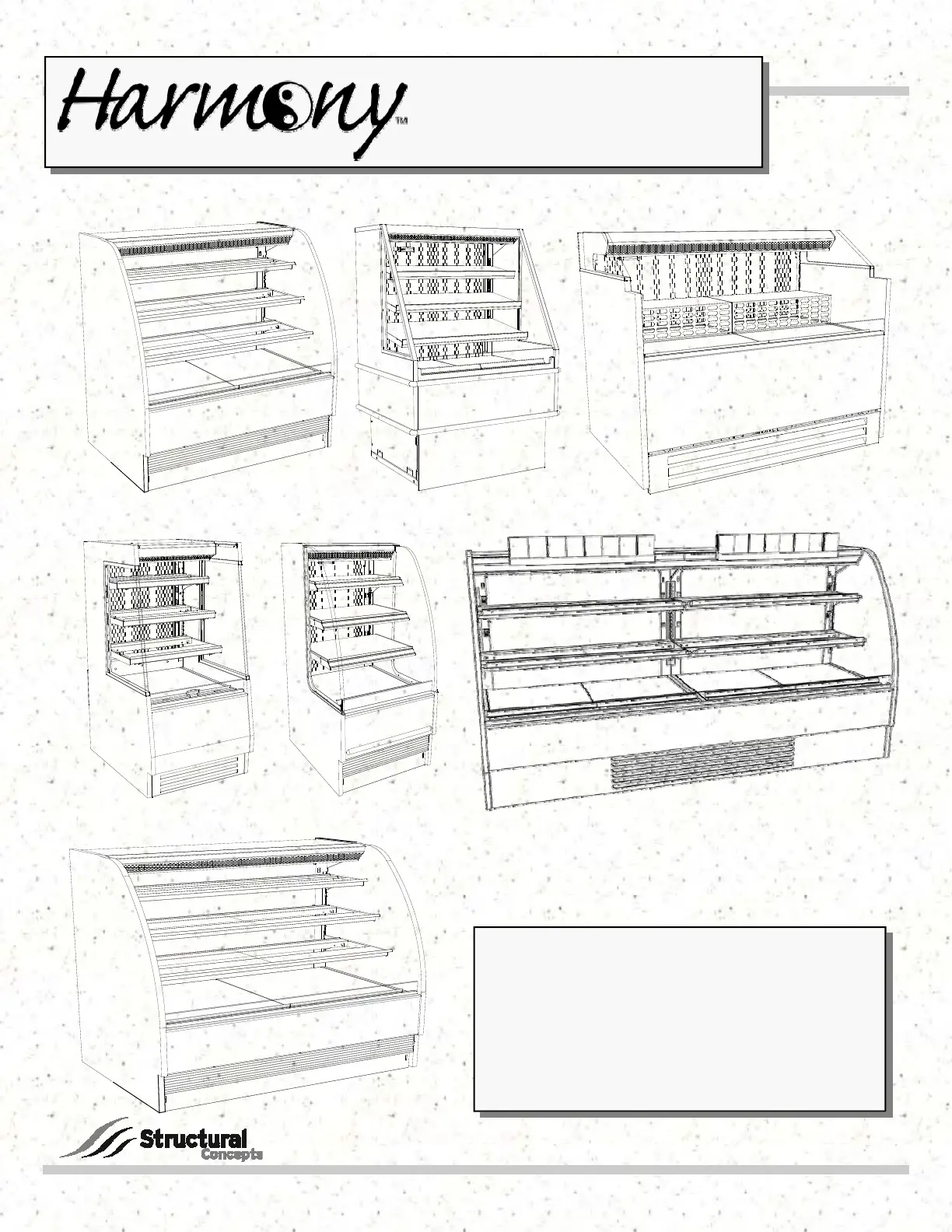

33” DEEP SELF-SERVICE REFRIGERATED BAKERY MERCHANDISER
READ AND SAVE THESE INSTRUCTIONS
Rev R Date: 2.11.2014
I:\Oper Manuals - PUB\Harmony\HMOXX53R_5194_5194R_5163_5749_54171.pub
INSTALLATION AND
OPERATING MANUAL
>>> Model HMO2653R (26 7/8”L* x 34 3/4”D x 52 3/4”H**)
>>> Model HMO2653R.5194 (26 7/8”L* x 34 3/4”D x 52 3/4”H**)
>>> Model HMO3953R (38 7/8”L* x 32 1/8”D x 52 3/4”H**)
>>> Model HMO3953R.5749 (38 7/8”L* x 32 1/8”D x 58 3/8”H**)
>>> Model HMO5153R (50 7/8”L* x 32 1/8”D x 52 3/4”H**)
>>> Model HMO5153R.5163 (50 7/8”L* x 32 1/8”D x 41 3/4”H**)
>>> Model HMO6353R (62 11/16”L* x 32 1/8”D x 52 5/8”H**)
>>> Model HMO7553R (75 1/4”L* x 32 1/8”D x 52 5/8”H**)
>>> Model HMO9653R.5914E (99 1/2”L* x 34 1/8”D x 52 5/8”H**)
*Includes 1” End Panels
**Includes Levelers at 1 1/4” Below Base Frame
888 E. Porter Road · Muskegon, MI 49441 Phone: 231.798.8888 Fax: 231.798.4960 www.structuralconcepts.com
HMO2653R
HMO5153R
HMO2653R.5194
HMO5153R.5163
(Shown With Risers)
HMO7553R
HMO3953R.5749
HMO9653R.5914E
(Shown With Optional Recipe
Card Holders)
2
TABLE OF CONTENTS
SHIPMENT CONDITION / DAMAGE DISCOVERED AT DELIVERY or UNCRATING / SHORTAGES
OVERVIEW / TYPE / COMPLIANCE / WARNINGS / PRECAUTIONS / WIRING / PLUGS .…………..
CASE REMOVAL FROM SKID (LEVELERS OR CASTERS) ……………………………………………..
INSTALLATION - CAULKING AND BOLTING UNITS TOGETHER ……………………………………...
INSTALLATION, CONT’D - MODEL HMO3953R.5749 ONLY: LINE-UP WITH MODEL DP812R.5748
INSTALLATION, CONT’D - MODEL HMO3953R.5749 ONLY: GENERAL LAYOUT ……………..
INSTALLATION, CONT’D - MODEL HMO3953R.5749 ONLY: DRAIN & CONDENSATE PACKAGE ..
INSTALLATION, CONT’D - CONNECTIONS/CONTROLLER/LOCK/MAIN POWER SWITCH ………..
INSTALLATION, CONT’D - ELECTRICAL CONNECTIONS / EVAPORATOR FAN AREA …………….
DRAIN, HOSE AND BRACKET PLACEMENT ILLUSTRATIONS …………………………………….…...
POSITIONING & ALIGNING CASE / ADJUSTING LEVELERS / FRAME SUPPORT RAILS .………...
ADJUSTING TOE-KICK / REMOVING FRONT GRILLE …………………………………………………...
REAR FILTER / GRILLE / PANEL ACCESS / COMPRESSOR PAN SHIPMENT SCREWS ..………...
START-UP AND OPERATION ..….…………...…...…..………………………...………….……..…………
START-UP AND OPERATION, CONTINUED: NIGHT AIR CURTAIN OPERATING INSTRUCTIONS
SOLID REAR DOOR (MODEL HMO2653R.5194) ...………………………………………………………..
REAR DOOR WITH PERFORATED PLEXIGLAS® PLENUM (MODEL HMO2653R) ..………………...
REAR SLIDING DOOR W/ADJOINED PERFORATED PLEXI® PLENUM (MODEL HMO3953R) ...….
SECURITY GRID INFORMATION …………………………………………………………………………....
NIGHT AIR CURTAIN (OPTIONAL) OPERATING INSTRUCTIONS ……………………………………..
MAINTENANCE FUNDAMENTALS - SHELF ASSEMBLY REMOVAL / FLUORESCENT LIGHTS …..
MAINTENANCE FUNDAMENTALS, CONTINUED - LED LIGHT FIXTURES ………………….………..
MAINTENANCE: REFRIGERATION PACKAGE ILLUSTRATION (MODEL HMO2653R.5194) …........
GENERAL CLEANING (TO BE PERFORMED BY STORE PERSONNEL) …………………...……...….
CLEANING SCHEDULE - STAINLESS STEEL (TO BE PERFORMED BY STORE PERSONNEL) ….
TROUBLESHOOTING (TO BE PERFORMED BY TRAINED SERVICE PROVIDERS ONLY) …….....
GENERAL CLEANING (TO BE PERFORMED BY TRAINED SERVICE PROVIDERS ONLY) …….....
TROUBLESHOOTING (TO BE PERFORMED BY TRAINED SERVICE PROVIDERS ONLY) ……….
TROUBLESHOOTING - CONDENSING SYSTEM (TO BE PERFORMED BY TRAINED SERVICE
PROVIDERS ONLY) ……………………………………………………………………………….…..
TROUBLESHOOTING - EVAPORATOR SYSTEM (TO BE PERFORMED BY TRAINED SERVICE
PROVIDERS ONLY) …….………………………………………………………………………….....
PREVENTIVE MAINTENANCE (TO BE PERFORMED BY TRAINED SERVICE PROVIDERS ONLY)
PREVENTIVE MAINTENANCE OF HONEYCOMB AIR DIFFUSERS (TO BE PERFORMED BY
TRAINED SERVICE PROVIDERS ONLY) …...……………………………………………………..
SERIAL LABEL INFORMATION & LOCATION …..……………………………………………………...….
CAREL® CONTROLLER - PROGRAMMING THE INSTRUMENT….…………………………….……....
CAREL® CONTROLLER - USER INTERFACE, SUMMARY TABLES OF ALARMS & SIGNALS …….
CAREL® CONTROLLER - Summary Table of Operating Parameters (After Programming Key) ……..
TECHNICAL SERVICE CONTACT INFORMATION & WARRANTY INFORMATION ..……….………..
3
4-5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22-23
24
25
26
27
28
29
30
31
32-34
35
36
37
38
39
40
41
42
43
