S

UPERMICR

R

ContaCtnformatIonI

MNL-1486-QRG R. 1.00ev

•www.supermicro.com(Email:support@supermicro.com)

•Manuals:http://www.supermicro.com/support/manuals

•Drivers&Utilities:ftp://ftp.supermicro.com

•Safety:http://www.supermicro.com/about/policies/safety_information.cfm

© 2013 Supermicro Computer Inc. All rights reserved. Reproduction of this document whether in part or in whole is strictly prohibited without Supermicro's written

consent. All Trademarks are property of their respective entities. All information provided is deemed accurate at the time of printing; however, it is not guaranteed.

P C - BaCkageontentsulk

X10sle-f/Hf

Q r g uICkeferenCeuIder. 1.00ev

•One(1)QuickReferenceGuide

LED Indicators

Connectors

DIMM Memory Installation

Jumpers, Connectors and LED Indicators

Memory Support

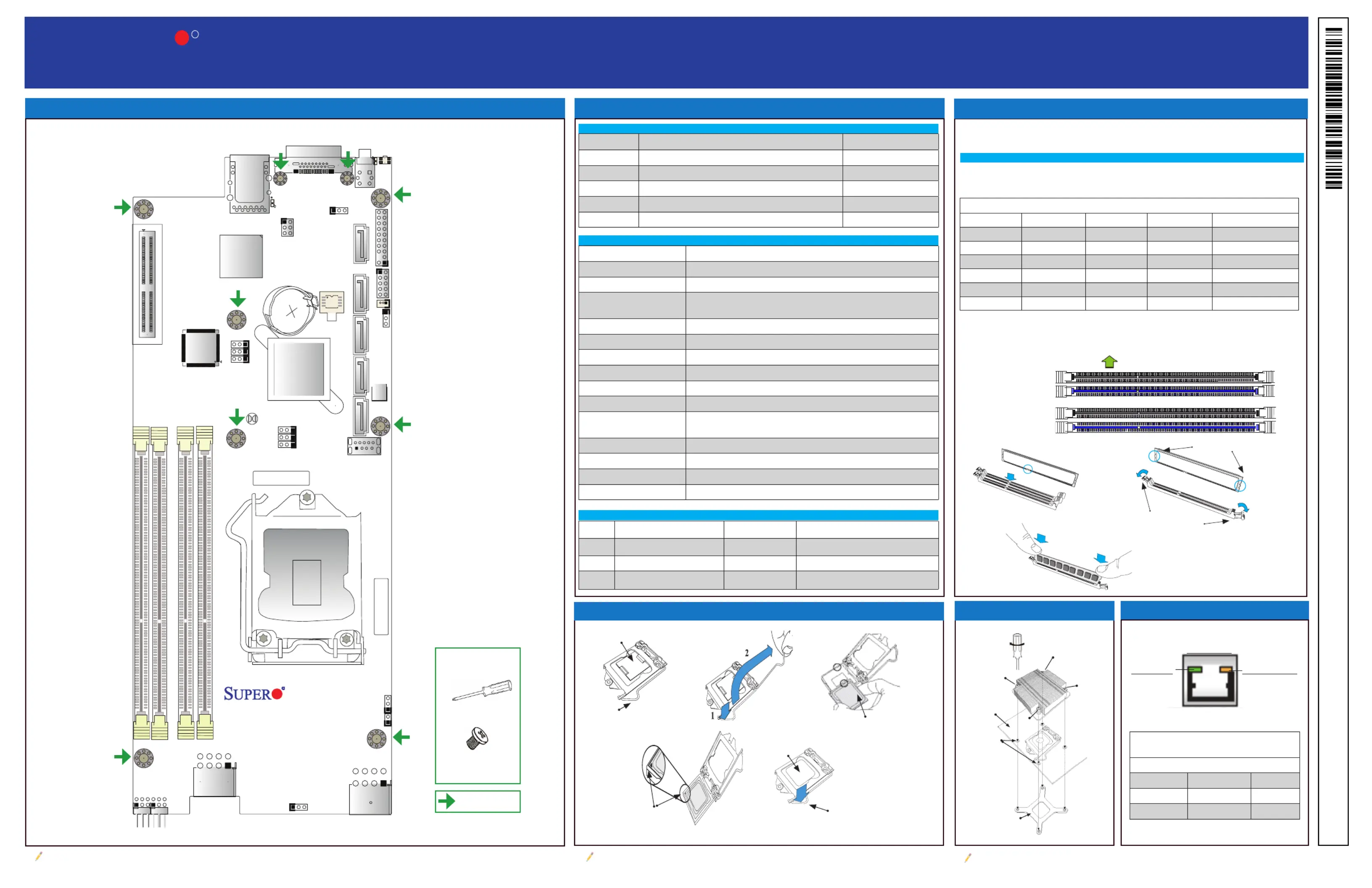

Motherboard Layout and Features

Jumpers

Note: Graphics shown in this quick reference guide are for illustration only. Your components may or may not look exactly the same as drawings shown in this guide.

Note: Refer to Chapter 1 of the User Manual for detailed information on jumpers, connectors,

and LED indicators.

Note: Refer to Chapter 2 of the User Manual for detailed information on memory support and CPU/

motherboard installation instructions.

= mounting hole

I-SATA4

JSD1JTPM1

JBR1

JPV1

JWD1

JPB1

JPME2

JPME1

J19

JPG1

J18

J22

JBT1

SW1

LED5

LED6

JKVM1

JUIDB1

JPWR2

I-SATA1I-SATA0I-SATA3I-SATA2

JP16

JP1

JP18

JP17

BAR CODE

MAC CODE

Battery

USB3.0-0

IPMI_LAN

UID

MICRO-LPCI-E 3.0 X8P

X10SLE-F/HF

Rev. 1.00

PWR

DIMMB2

DIMMB1

DIMMA2

DIMMA1

CPU

BIOS

PCH

BMC

AST2400

Intel LP

C226/C224

JumperDescriptionDefault

JBT1CMOS Clear(See Chpt. 2)

JPG1VGA EnablePins 1-2 (Enabled)

JPME1ME RecoveryPins 1-2 (Normal)

JPME2Manufacture Mode SelectPins 1-2 (Normal)

JWD1Watch Dog Timer EnablePins 1-2 (RST)

ConnectorDescription

BatteryOnboard Battery

IPMI_LANIPMI_Dedicated LAN

JKVM1USB (x2)/VGA (Monitor)/COM (UART) Connector for Remote Console

Redirection or Remote Network Interface

JP16Power Output for Hard Disk Drive (12V and 5V)

JP17Motherboard Interface to PDB

JP18Motherboard Interface to PDB

JPWR2SMC-Proprietary Power Connector

JSD1SATA DOM (Device_On_Module) Power Connector

JTPM1Trusted Platform Module/Port 80 Connector

I-SATA0 - I-SATA4(Intel PCH) Serial ATA Ports 0-4 (I-SATA0-3: SATA 3.0 Ports, I-SATA4:

SATA 2.0 Port)

Micro-LP PCI-E SlotSMC-Proprietary Micro Low-Prole (LP) PCI-Express 3.0 x8 Slot

SW1Power Switch/LED Indicator

UIDUnit Identier (UID) Button (JUIDB)

USB2, USB3 (3.0)Internal Type A USB 3.0

The X10SLE-F/-HF supports up to 32GB of Unbuffered (UDIMM) DDR3 ECC

1600/1333/1066 MHz VLP (Very Low Prole) memory in 4 slots.

Memory Population Guidelines

Please follow the table below when populating the X10SLE-F/HF.

Recommended Population (Balanced)

DIMMA2DIMMB2DIMMA1DIMMB1Total System Memory

2GB DIMM2GB DIMM4GB

2GB DIMM2GB DIMM2GB DIMM2GB DIMM8GB

4GB DIMM4GB DIMM8GB

4GB DIMM4GB DIMM4GB DIMM4GB DIMM16GB

8GB DIMM8GB DIMM16GB

8GB DIMM8GB DIMM8GB DIMM8GB DIMM32GB

Insert the desired number of DIMMs into the memory slots, starting with DIMMA2

(Channel A, Slot 2). For the system to work properly, please use the memory

modules of the same type and speed in the same motherboard.

Channel A Slot 1

Channel A Slot 2

(Blue Slot)

Channel B Slot 1

Channel B Slot 2

(Blue Slot)

Towards the CPU

Notches

Release Tabs

Press both notches

straight down into

the memory slot.

Linkivi LEDActty LED

IPMI LAN

IPMI LAN Link LED (Left) &

Activity LED (Right)

Color/State Denition

Link (Left)Green: Solid100 Mbps

Amber: Solid1000 Mbps

Activity (Right)Yellow BlinkingActive

Tools Needed:

Screwdriver

Phillips screws (9)

CPU Installation

CPU Properly

Installed

Load Lever Locked

into Place

Load Lever

Load Plate

Pin 1

North Center Edge

Heatsink Installation

Screw#1

Screw#2

Screw#3

Screw#4

Motherboard

Mounting Holes

Heatsink Bracket

IPMI LAN Port LED

LEDDescriptionColor/StateStatus

LE5BMC Heartbeat LEDGreen: BlinkingBMC Functions Normally

LED5Power Fail/Fan Fail/OverheatRed: OnPower Fail, Fan Fail or Overheating

LED6UID LEDBlue: OnUnit Identied
