INSTRUCTIONS FOR THE

INSTALLATION

MODELO: SVEC3BF

SVE3BF

SVEC4BF

SVE5B1

SVEC5BF

SVEC3W

SVEC2BF

SVEC1BF

SVE4BW3

SVE4B3

SVEC4RN1

User’s instructions

Igniting the burners

In these models the knob controls both ignition and the safety

device. Proceed as follows to ignite the burners:

1) Turn the chosen knob.

2) Keep the knob strongly pressed in for 3/4 seconds to permit

the spark to light the gas

that exits from the flametamer and to permit the thermocouple

to heat up.

3) Release the knob after about 3/4 seconds and adjust the

flame as desired, rotating

the knob anti-clockwise. Repeat points 1 and 2 if the flame

does not remain on.

Using the burners

For greater efficiency and less gas consumption use pots and

pans with the right diameters for the burners. Avoid having flames

extending out from underneath the pans (refer to the table)

Table of recommended pans

Burner Ø Pan diameter in cm

Auxiliary

Semi rapid

Rapid

Triple ring

from dia. 8 to dia. 14

from dia. 14 to dia. 20

from dia. 20 to dia. 28

Above dia. 26

Automatic safety valves

This safety device automatically closes the gas valve if the

inconvenience caused by failure to comply with this rule.

CLEANING AND MAINTENANCE

GENERAL

Cleaning and maintenance should be carried out with the

appliance cold especially when cleaning the enamelled parts.

Avoid leaving alkaline or acid substances(lemon juice,vinegar

etc.)on the surfaces.

Avoid using acid or chlorine-based cleaning products.

ENAMELLED PARTS

All of the enamelled parts must be washed only with a sponge

and soapy water or with non-abrasive products.

BURNERS AND GRIDS

These parts can be removed and cleaned with appropriate

products.

After cleaning ,the burners and their flame distributors must be

well dried and correctly replaced.

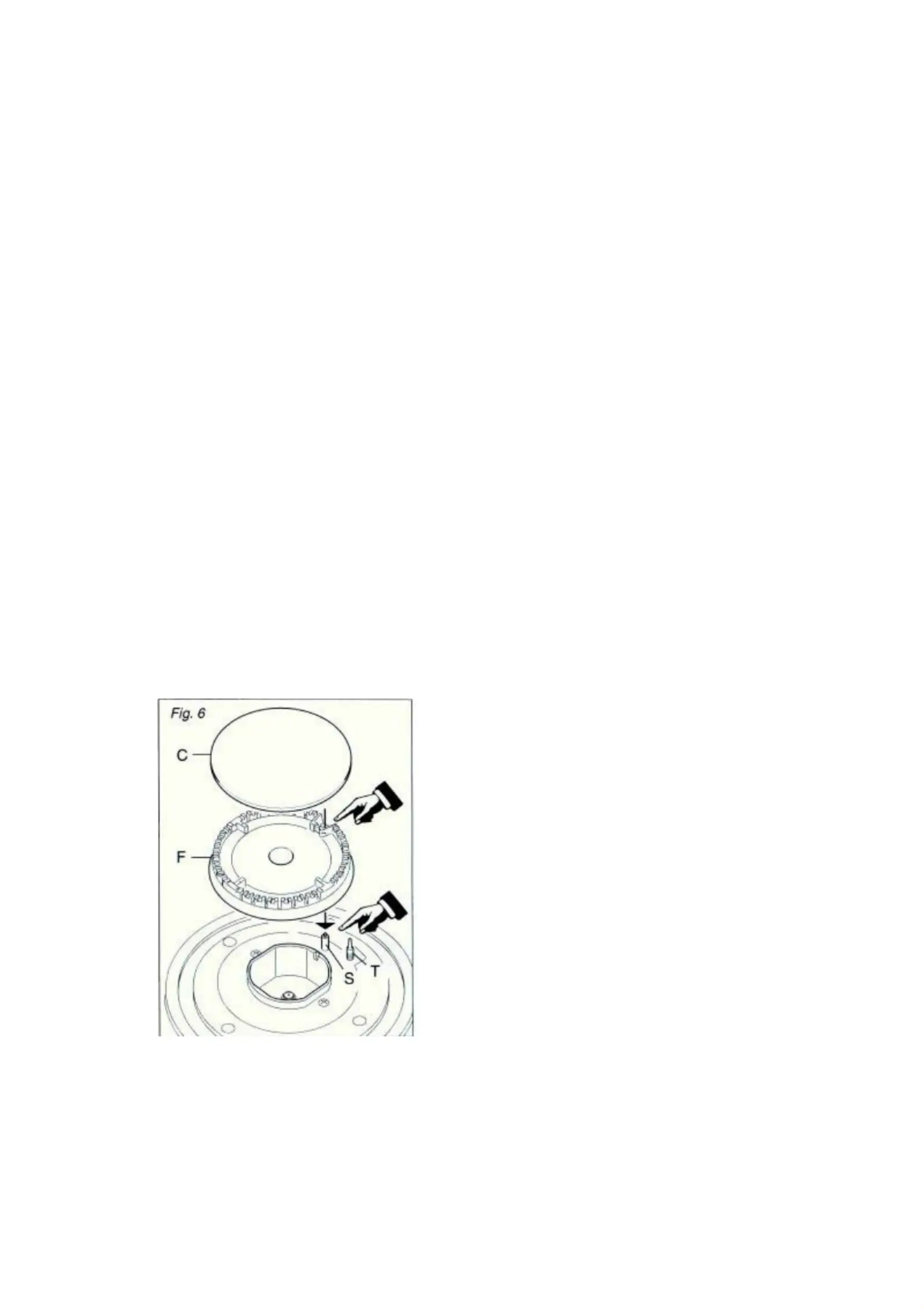

It is very important to check that the burner flame distributor F

and the cap C has been correctly positioned ( fig. 6) -failure to do

so can cause serious problems.

Check that the electrode S is always clean to ensure trouble-free

sparking.

Check that the probe T is always clean to ensure correct

operation of the safety valves ( for models with safety device ).

Both the probe and ignition plug must be very carefully cleaned

GAS TAPS

Periodic lubrication of the gas taps must be carried out by

specialist personnel only.

In the event of operating faults in the gas taps, call the Service

Department.
