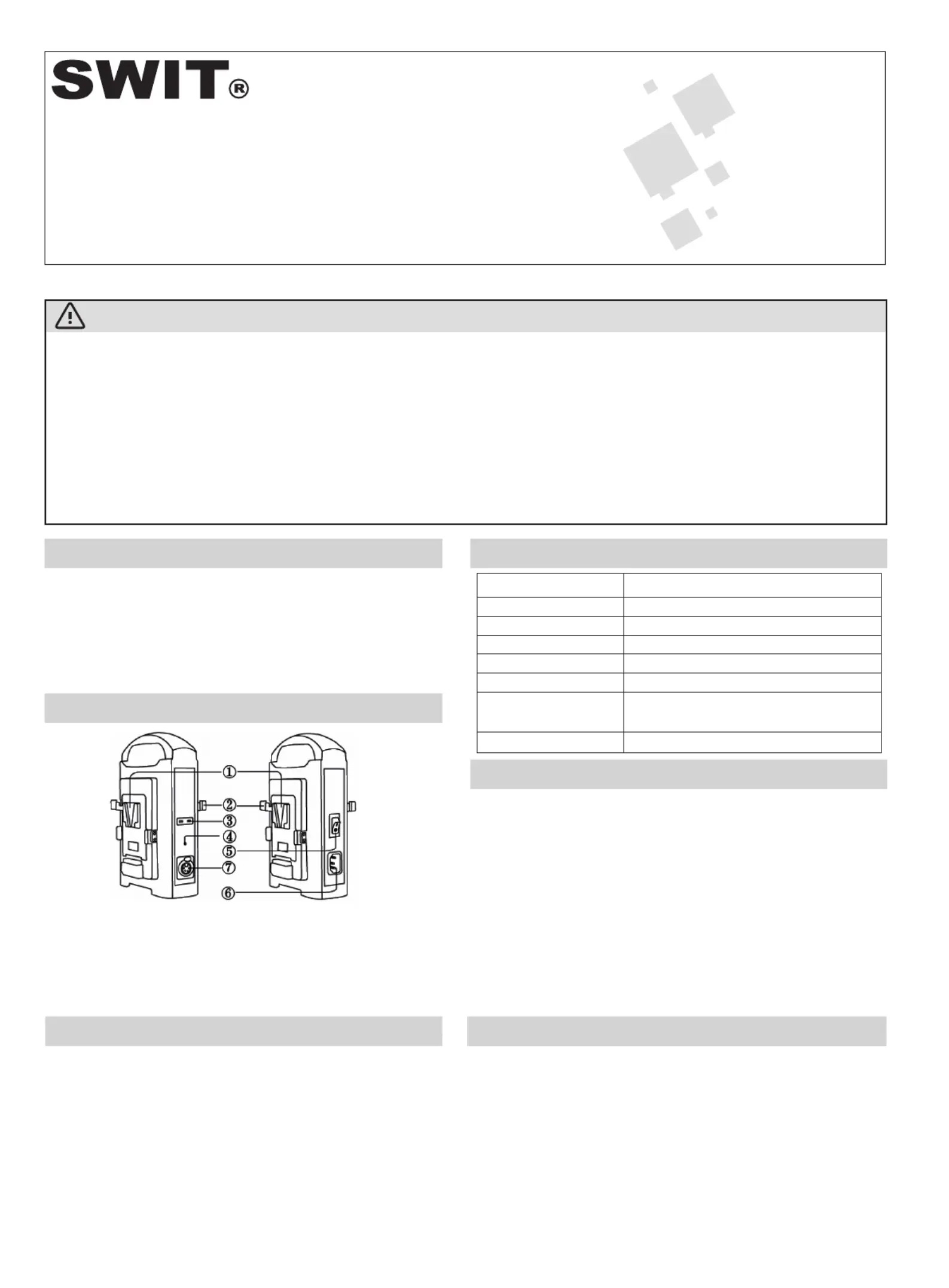

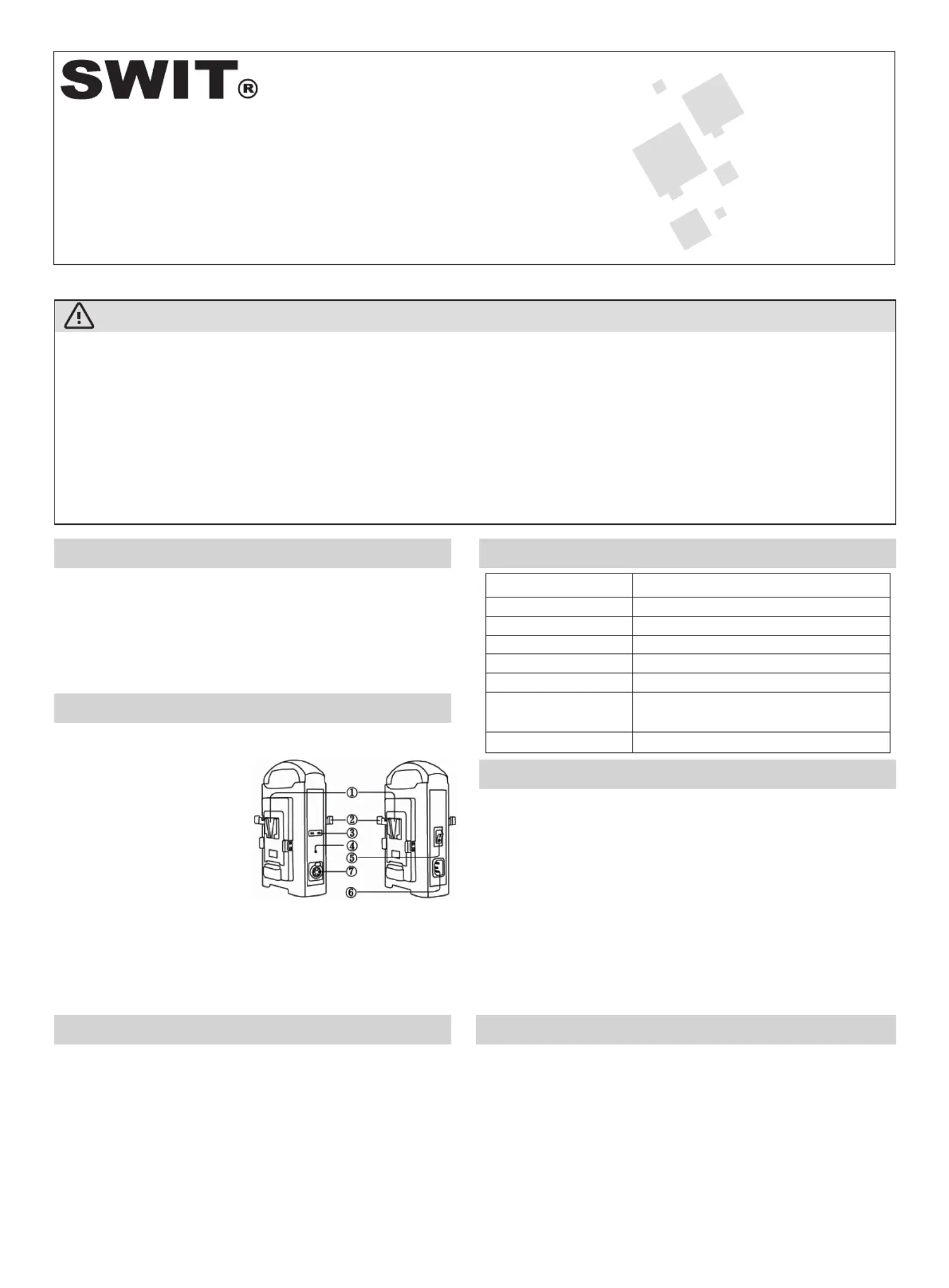

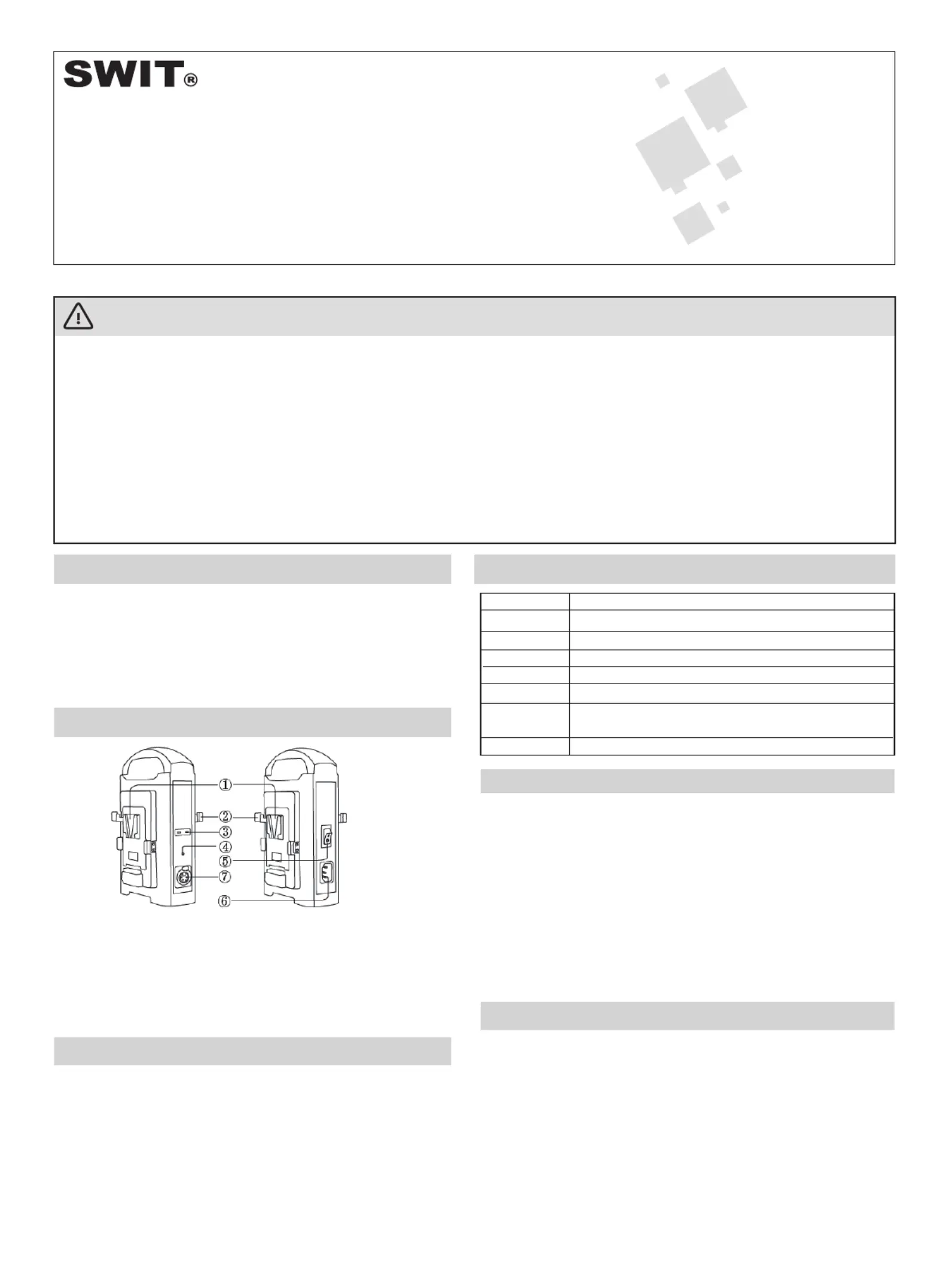

Seite 1/3

Features

Product appearance

Charging Adapting output

Specifications

Compatible Batteries

Lithium Battery Charger

S-3822A/S

Ver:B

Tel:+86-25-85805753

Fax:+86-25-85805296

http://www.swit.cc

E-mail: contact@swit.cc

USER MANUAL

S W I T E l e c t r o n i c s Co . , LT D.

Congratulations on your purchase of this product. Please read this user manual carefully.

Warning

◆

Never expose the battery charger to rain or moisture.

Never attempt to open the battery charger, please contact the

local agent if have problems.

Never use metal or other conductors to touch the inside of the

battery charger.

Never short-circuit the battery charger terminals.

Please make sure the voltage range is fit for the battery charger.

Please use the power adapter provided by the manufacturer in

order to avoid damage.

Never use the battery charger if it is already damaged.

◆

Only limited to charge specified battery(ies), it may cause danger if

charge other battery(ies) due to incompatibility problem.

Only work in the temperature between 0 -45℃ ℃

Keep the terminals clean and ensure the reliable connection.

It is normal phenomenon that the battery charger may become warm in use.

Please unplug the power lead if the battery charger is not used for a

long time.

Do not cover the cooling vent.

Please do not put the battery charger in unstable place, it may fall and

cause serious damage.

Store the battery charger in cool, dry and clean place.

Caution

1. 2-channel independent charging and controlling system, capable

of 3A charging two batteries simultaneously.

2. One channel AC-DC adaptor output via 4-pin XLR, maximum

power output reaches 90W.

3. LED lights indicate the real-time working status.

Two charging channels are independent channels and can charge

simultaneously.

1. Connect with power lead, turn on the power switch

2. Mount battery(ies) onto the charging channel(s), and it starts to

charge the mounted battery(ies) simultaneously. The LED light(s)

of the related charging channel(s) will indicate like these：

Red: the battery capacity is below 100%

Green: fully charged

Red ﬂash: the charging may have problem

3. When full charged, press battery release button and take out

the battery(ies).

The S-3822A/S oﬀers one channel 4-pin XLR adapting output.

1. Connect with power lead, turn on the power switch, and the

adapting LED indicator will light on.

2. Connect the adapting output to power consuming equipment;

Note:

1. When adapting output, please make sure the voltage and power of

the power consuming equipment meet the requirement (15V, 6A).

2. S-3822A/S does not support charging and adapting output at the

same time. If channel(s) are inserted with battery(ies) during

charging, there will be no DC output. When no battery is mounted,

there will be adapting output.

①

Charging channel (V-mount/Gold mount)

②Battery release button

③Charging LED indicator

④Adapting LED indicator

Input

Power

Charging Output

Adapting Output

Working Temperature

Working Humidity

100 240VA, 50/60Hz～

138W(Max)

DC 16.8V, 3A(Max )×2

DC 15V, 6A(Max)

0 +45℃～℃

10% 90%～

228mm×140mm×86mm(S-3822A)

228mm×140mm×102mm(S-3822S)

Appx 1.0kg

Weight

Dimension

S-3822A: SWIT Gold mount battery (Including: S-8083A, 8082A,

8192A, 8152A, 8113A, 8183A, 8110A, 8180A, D-8111A, 8150A, 8161A,

PB-S220A, S-98A. Capacity: 80Wh-240Wh, Vmax: 16.9V, Ichr: 3A-6A)

S-3822S: SWIT V-mount battery (Including: S-8083S, 8082S, 8192S,

8152S, 8113S, 8183S, 8110S, 8180S, D-8111S, 8150S, 8161A, 8320S,

8340S, 8360S, PB-S220S, S-98S. Capacity: 80Wh-240Wh, Vmax: 16.9V,

Ichr: 3A-6A)

SONY V-mount battery (Including: BP-GL95, GL65, L60S,

IL75, L40A, L90A, L60A）

⑤ Power switch

⑥ Power input socket

⑦ 4-PIN XLR DC output socket

Produktspezifikationen

Marke:	SWIT
Kategorie:	Ladegerät
Modell:	S-3602C
Breite:	136 mm
Tiefe:	110 mm
Gewicht:	360 g
Produktfarbe:	Schwarz
Höhe:	47 mm
Energiequelle:	AC
Menge pro Packung:	1 Stück(e)
LED-Anzeigen:	Ladend
Anzahl unterstützter Akkus/Batterien:	2
Ausgangsstrom:	3.5 A
Ausgangsspannung:	8.4 V
Akkus/Batterien enthalten:	Nein
Eingangsspannung:	100 - 240 V
Kompatible Produkte:	SWIT S-8845, S-8945; Canon BP-945, BP-970G
Geeignet für:	Batterie für Digitalkamera
Eingangsfrequenz:	50/60 Hz
Kompatible Akku-/Batteriegrößen:	Nein
Ladestrom:	2 A
Kompatible Akku-/Batterie-Technologien:	Lithium-Ion (Li-Ion)
Ladespannung:	8.4 V
