C12SKW Stacking Kit Installation Instructions
Compatible Washers & DryersC1208FLW + C1208DRW：
Plse read the following installation instructions carefully
before installing the stacking kit
Please select the stacking position and leave enough space
This manual only covers the installation of the C1208FLW Washer +
C1208DRW Dryer Stacking kit.
for the installation of water inlet pipe, drainage pipe, power cord, etc.
Meanwhile, sufficient clearance shall be left on the back of the machine to
ensure that the drainage pipe is connected smoothly without bending.
Before stacking the dryer, please adjust the feet of the washing
The slide out shelf has a maximum load weight of 10kg. Please do not
exceed this weight.
machine to make it level.

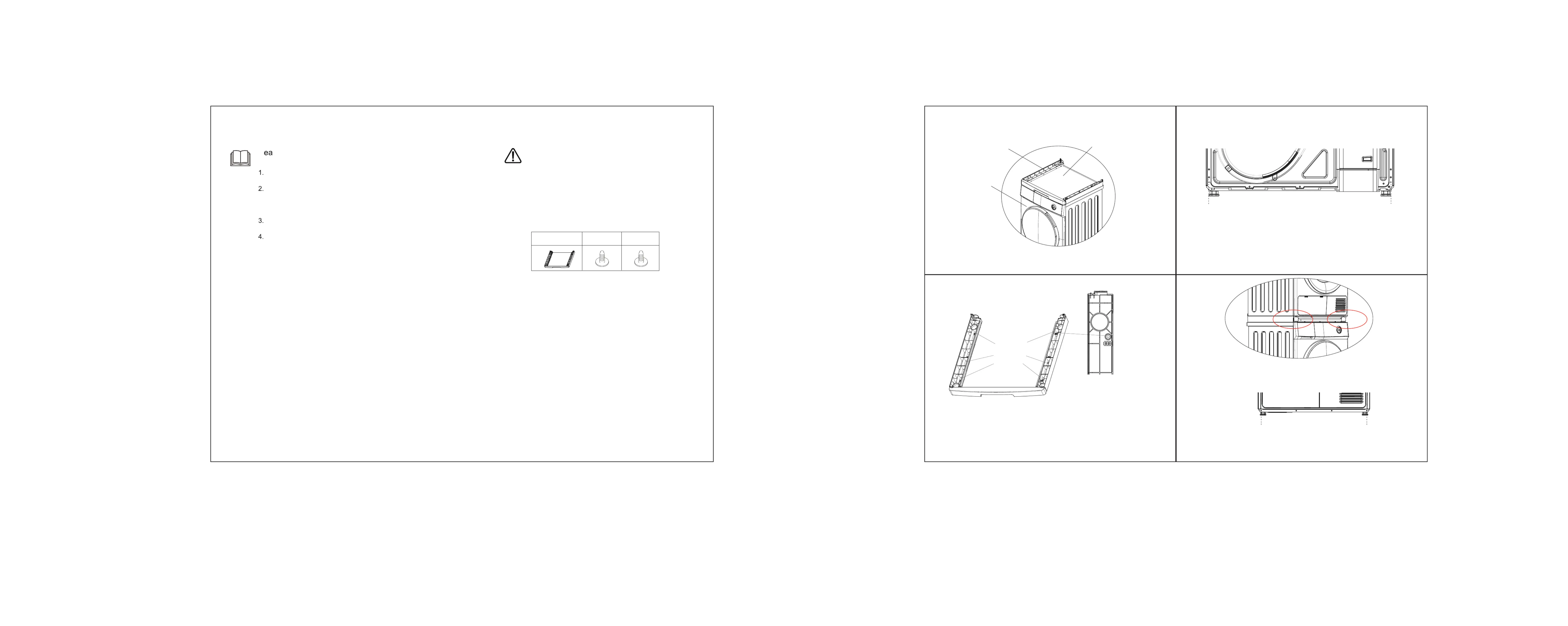

Installation :
At least two people are required to complete the stacking
installation of heat pump dryer and washing machine.
1.Place the connecting rack on the top cover plate of the washing machine, adjust the position of the
connecting rack so that its left, right and front sides are respectively aligned with the top cover plate of
the washing machine (Figure 1), and the front is aligned with the washing machine face-plate.
2.Take out 6 screws from the accessory bag and fasten the left support and right support on the upper
cover plate of the washing machine respectively (As shown in Figure 2).
3.Remove the two self tapping screws on the bottom left and right of the front plate of the heat pump
dryer. Make sure the 4 feet of dryer are twisted clockwise as far as they can go.
4.Lift the heat pump dryer and place it horizontally in the connecting rack above the washing machine.
The four feet of the heat pump dryer should be placed in the four holes of the connecting rack.
5.Pull out the support baffle plate and install the two machine screws through the screw holes of the
connecting rack and the back plate of the heat pump dryer (As shown in Figure 3).
6.Reinstall the 2 removable self tapping screws through the screw holes of the connecting rack and the
front plate of the heat pump dryer (As shown in Figure 4).
7.Push the support baffle plate back to its original position.
Caution:
The maximum load of the slide out shelf is 10kg! The heat
pump dryer shall be installed and fixed to the washing
machine counter-top as described in these instructions.
Before installation, it shall be ensured that that washing
machine is correctly leveled without shaking or movement.
Stability also shall be rechecked after the installation of the
stacking kit is complete.
Support 1
Self tapping
screw 6
Machine
screw 2
Support
Support
baffle plate
Washing
machine
Figure 1
Self tapping
screw 6
Fastener hole
Figure 2
Front
Machine screwMachine screw
Figure 4
Back side
Self tapping screwSelf tapping screw
Figure 3
