SCAS813A − AUGUST 2005 − REVISED DECEMBER 2005

1

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

DLow Jitter Clock Multiplier by x4, x6, x8.

Input Frequency Range (19 MHz to

125 MHz). Supports Output Frequency

From 150 MHz to 500 MHz

DFail-Safe Power Up Initialization

DLow Jitter Clock Divider by /2, /3, /4. Input

Frequency Range (50 MHz to 125 MHz).

Supports Ranges of Output Frequency

From 12.5 MHz to 62.5 MHz

D2.6 mUI Programmable Bidirectional Delay

Steps

DTypical 8-ps Phase Jitter (12 kHz to 20 MHz)

at 500 MHz

DTypical 2.1-ps RMS Period Jitter (Entire

Frequency Band) at 500 MHz

DOne Single-Ended Input and One

Differential Output Pair

DOutput Can Drive LVPECL, LVDS, and

LVTTL

DThree Power Operating Modes to Minimize

Power

DLow Power Consumption (Typical 200 mW

at 500 MHz)

DPackaged in a Shrink Small-Outline

Package (DBQ)

DNo External Components Required for PLL

DSpread Spectrum Clock Tracking Ability to

Reduce EMI

DApplications: Video Graphics, Gaming

Products, Datacom, Telecom

DAccepts LVCMOS, LVTTL Inputs for

REFCLK Terminal

DAccepts Other Single-Ended Signal Levels

at REFCLK Terminal by Programming

Proper V

DD

REF Voltage Level (For

Example, HSTL 1.5 if V

DD

REF = 1.6 V)

DSupports Industrial Temperature Range of

−40

°

C to 85

°

C

description

The CDC5801A device provides clock multiplication and division from a single-ended reference clock

(REFCLK) to a differential output pair (CLKOUT/CLKOUTB). The multiply and divide terminals (MULT/DIV0:1)

provide selection for frequency multiplication and division ratios, generating CLKOUT/CLOUTKB frequencies

ranging from 12.5 MHz to 500 MHz with a clock input reference (REFCLK) ranging from 19 MHz to 125 MHz.

See Table 1 and Table 2 for detail frequency support.

The implemented phase aligner provides the possibility to phase align (zero delay) between

CLKOUT/CLKOUTB and REFCLK or any other CLK in the system by feeding the clocks that need to be aligned

to the DLYCTRL and the LEADLAG terminals.

The phase aligner also allows the user to delay or advance the CLKOUT/CLKOUTB with steps of 2.6 mUI (unit

interval). For every rising edge on the DLYCTRL terminal, the output clocks are delayed by 2.6-mUI step size

as long as there is low on the LEADLAG terminal. Similarly, for every rising edge on the DLYCTRL terminal, the

output clocks are advanced by 2.6-mUI step size as long as there is high on the LEADLAG terminal. The

CDC5801A has a fail-safe power up initialization state-machine which supports proper operation under all

power up conditions. As the phase between REFCLK and CLKOUT/CLKOUTB is random after power up, the

application may implement a self calibration routine at power up to produce a certain phase start position, before

programming a fixed delay with the clock on the DLYCTRL terminal.

Copyright  2005, Texas Instruments Incorporated

  !"# $ %&'# "$  (&)*%"# +"#',

+&%#$ %! # $('%%"#$ (' #-' #'!$  '."$ $#&!'#$

$#"+"+ /""#0, +&%# (%'$$1 +'$ # '%'$$"*0 %*&+'

#'$#1  "** (""!'#'$,

Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of

TexasInstruments semiconductor products and disclaimers thereto appears at the end of this data sheet.

1

2

3

4

5

6

7

8

9

10

11

12

24

23

22

21

20

19

18

17

16

15

14

13

V

DD

REF

REFCLK

V

DD

P

GNDP

GND

LEADLAG

DLYCTRL

GNDPA

V

DD

PA

V

DD

PD

STOPB

PWRDNB

P0

P1

V

DD

O

GNDO

CLKOUT

NC

CLKOUTB

GNDO

V

DD

O

MULT0/DIV0

MULT1/DIV1

P2

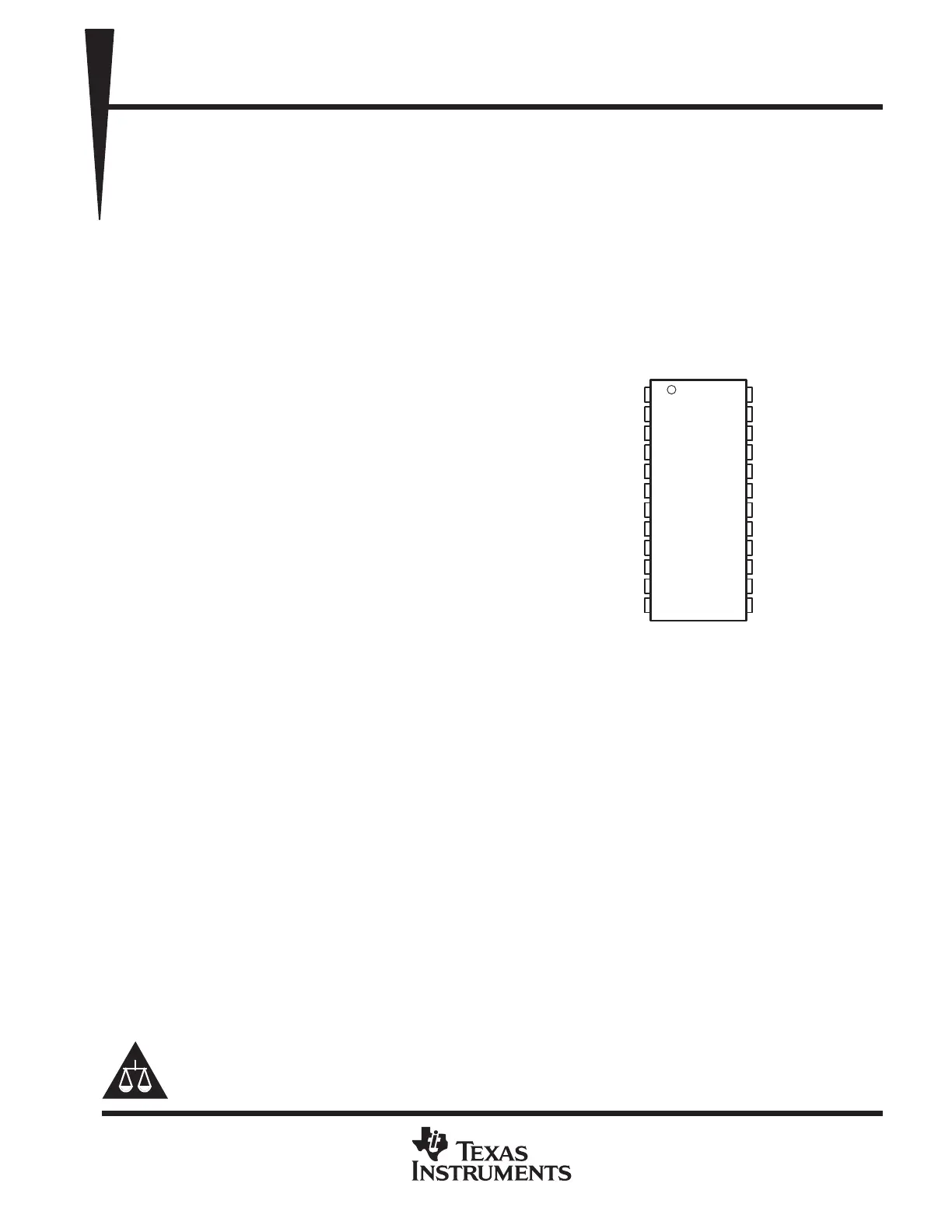

DBQ PACKAGE

(TOP VIEW)

NC − No internal connection
