INA848 Ultra-Low-Noise (1.5 nV/√Hz), High-Bandwidth Instrumentation Amplifier

With Fixed Gain of 2000

1 Features

•Fixed gain of 2000 V/V

•Access to internal nodes for filtering

•Ultra-low noise: 1.5 nV/√Hz input voltage noise

(maximum)

•Precision super-beta input performance:

–Low offset voltage: 35 µV (maximum)

–Low offset voltage drift: 0.45 μV/°C (maximum)

–Low input bias current: 25 nA (typical)

–Low gain drift: 5 ppm/°C (maximum)

•Bandwidth: 2.8 MHz

•Slew rate: 45 V/µs

•Common-mode rejection: 132 dB (minimum)

•Supply range:

–Single supply: 8 V to 36 V

–Dual supply: ±4 V to ±18 V

•Specified temperature range:

–40°C to +125°C

•Package: 8-pin SOIC

2 Applications

•Surgical equipment

•Electrocardiogram (ECG)

•Ultrasound scanner

•Semiconductor test

•Data acquisition (DAQ)

•Vibrational analysis

3 Description

The INA848 is a fixed-gain instrumentation amplifier

optimized for high-precision measurements, such as

very-small, fast, differential input signals. TI's super-

beta topology provides a very low input bias current

and current noise. The well-matched transistors help

achieve a very low offset and offset drift. Matching of

the internal resistors yields a high common-mode

rejection ratio of 132 dB across the full input-voltage

range, and a very low gain drift error of 5 ppm/⁰C

(max).

The current-feedback topology of the INA848

produces a wide bandwidth of 2.8 MHz at a fixed gain

of 2000, thereby eliminating the need for subsequent

gain stages. The very-low noise floor of 1.3 nV/√Hz

minimizes the impact on the equivalent number of bits

(ENOB) when interfacing with high-resolution analog-

to-digital converters (ADCs). The INA848 provides the

flexibility of adding filters between the gain stages

(pins 2 and 3) to maintain an adequate signal integrity.

These unique features of the INA848 make this

device an excellent choice for applications requiring

high-precision measurements, such as high-end

medical instrumentation, electroencephalography,

vibration sensing, and displacement measurements.

This device is designed for 8-V to 36-V single

supplies, or ±4-V to ±18-V on dual supplies.

Device Information

PART NUMBER

(1)

PACKAGEBODY SIZE (NOM)

INA848SOIC (8)4.90 mm × 3.91 mm

(1)For all available packages, see the package option

addendum at the end of the data sheet.

+

±

+

±

+

±

6 k

3 k

120 k

6 k120 k

3 k

REF

+VS

OUT

-VS

-IN

+IN







OININREF

V2000VVV

u:



:

:

:

1

2

23 k

G1200

30.15

120 k

G10

12 k

6 k

6 k

+FL

-FL

30.15 

INA848

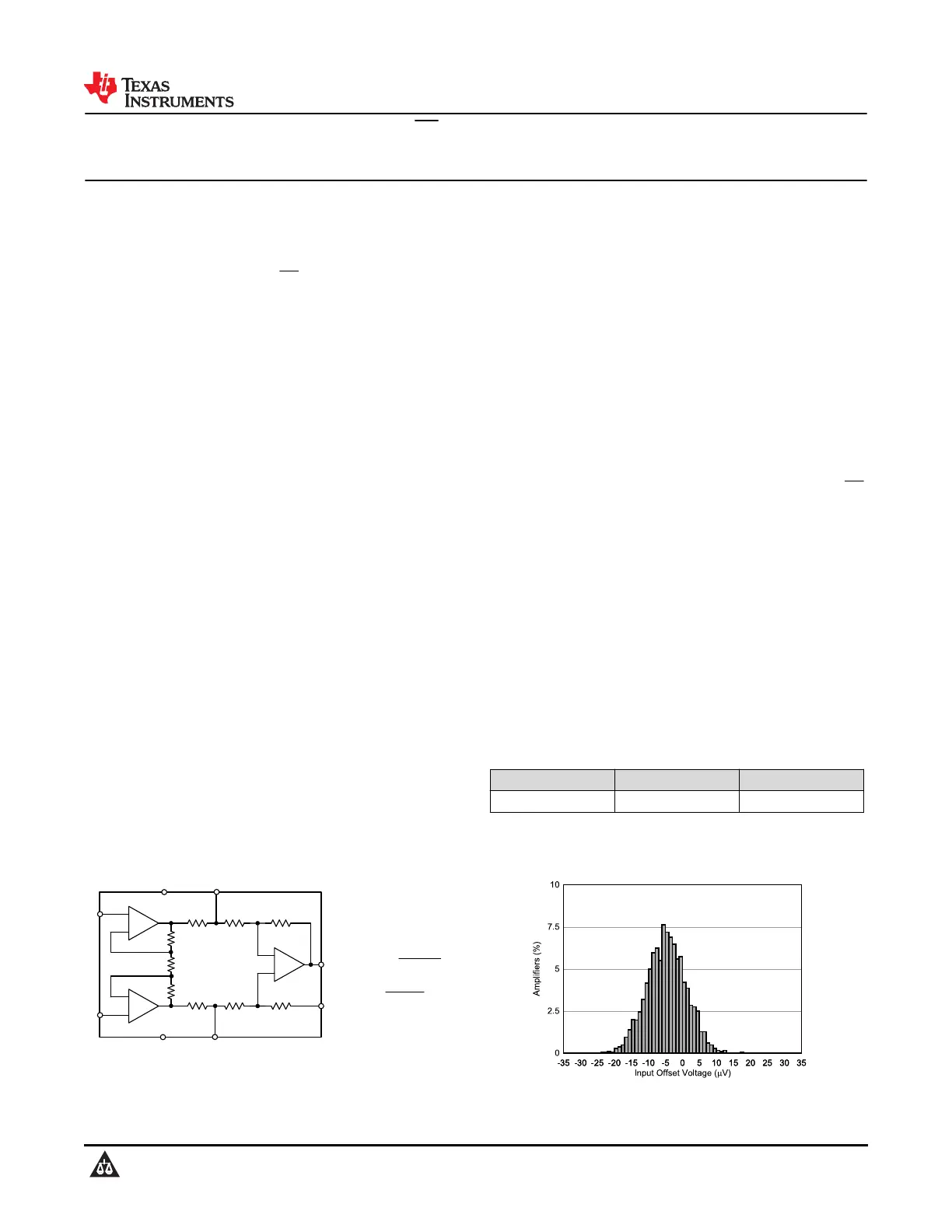

INA848 Simplified Internal Schematic

Typical Distribution of Input Offset Voltage

www.ti.com

INA848

SBOS946 – SEPTEMBER 2020

Copyright ©2020 Texas Instruments Incorporated

Submit Document Feedback

1

Product Folder Links: INA848

INA848

SBOS946 – SEPTEMBER 2020

An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty, changes, use in safety-critical applications,

intellectual property matters and other important disclaimers. PRODUCTION DATA.
