ISO723xx High-Speed, Triple-Channel Digital Isolators

1 Features

•25 and 150Mbps signaling rate options

–Low channel-to-channel output skew;

1ns maximum

–Low pulse-width distortion (PWD);

2ns maximum

–Low jitter content; 1ns typical at 150Mbps

•Typical 25-Year Life at Rated Working Voltage

(see Isolation Lifetime Projection)

•4kV ESD protection

•Operate with 3.3V or 5V supplies

•3.3V and 5V level translation

•High electromagnetic immunity

•–40°C to 125°C operating range

•Safety Related Certifications

–DIN EN IEC 60747-17 (VDE 0884-17)

conformity per VDE

–UL 1577 component recognition program

–IEC 61010-1, IEC 62368-1 certifications

2 Applications

•Factory Automation

–Modbus

–Profibus

™

–DeviceNet

™

Data Buses

•Computer Peripheral Interface

•Servo Control Interface

•Data Acquisition

3 Description

The ISO7230 and ISO7231 are triple-channel digital

isolators each with multiple channel configurations

and output enable functions. These devices have

logic input and output buffers separated by TI’s silicon

dioxide (SiO

2

) isolation barrier. Used in conjunction

with isolated power supplies, these devices block high

voltage, isolate grounds, and prevent noise currents

on a data bus or other circuits from entering the local

ground and interfering with or damaging sensitive

circuitry.

Package Information

PART

NUMBER

PACKAGE

(1)

BODY SIZE

(NOM)

PACKAGE

SIZE

(2)

ISO7230C

ISO7231C

ISO7231M

DW (SOIC,

16)

10.30mm ×

7.50mm

10.30mm ×

10.30mm

(1)For all available packages, see the orderable addendum at

the end of the data sheet.

(2)The package size (length × width) is a nominal value and

includes pins, where applicable.

A.V

CCI

and GNDI are supply and ground connections respectively for the input channels.

B.V

CCO

and GNDO are supply and ground connections respectively for the output channels.

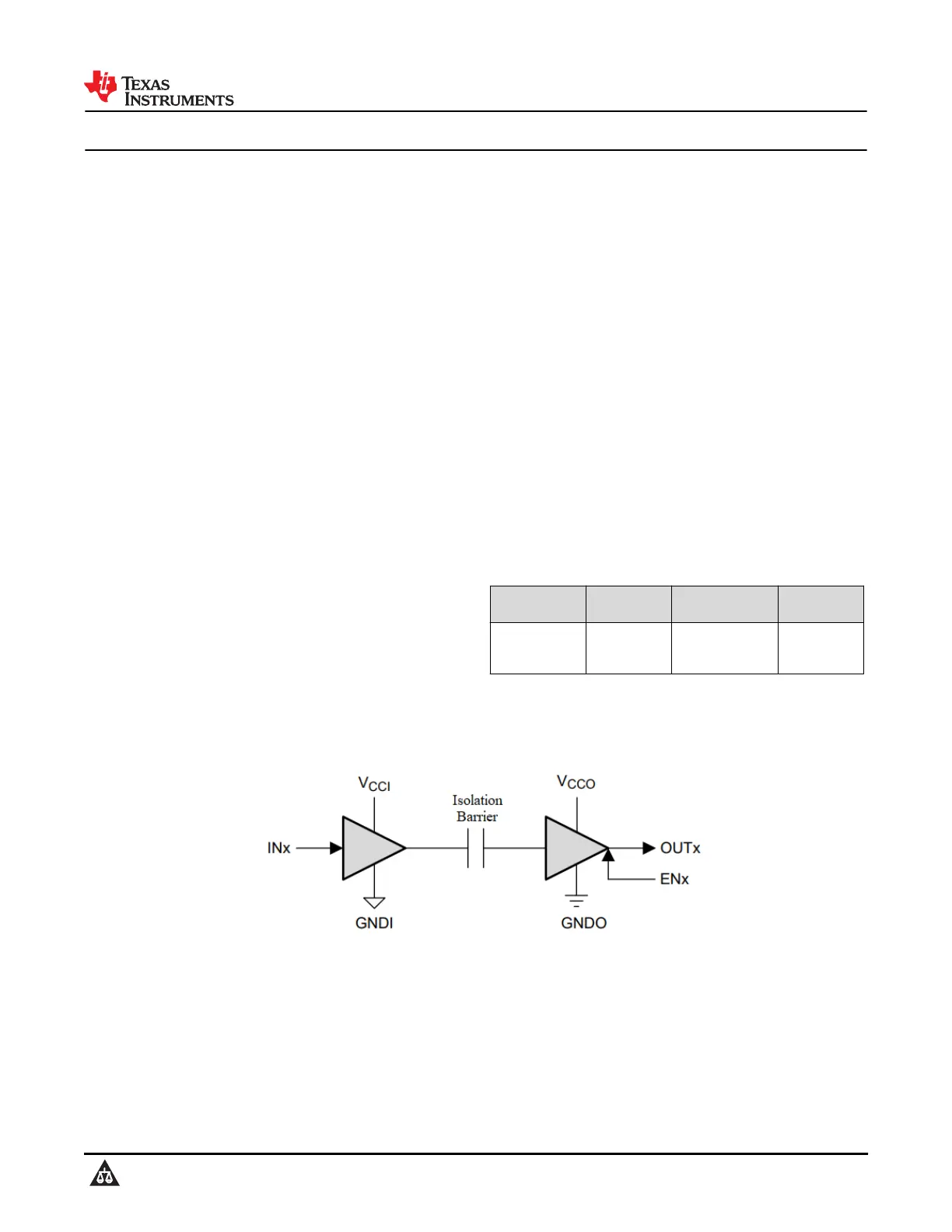

Simplified Schematic

ISO7230C, ISO7231C, ISO7231M

SLLS867N – SEPTEMBER 2007 – REVISED OCTOBER 2025

An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty, changes, use in safety-critical applications,

intellectual property matters and other important disclaimers. PRODUCTION DATA.
