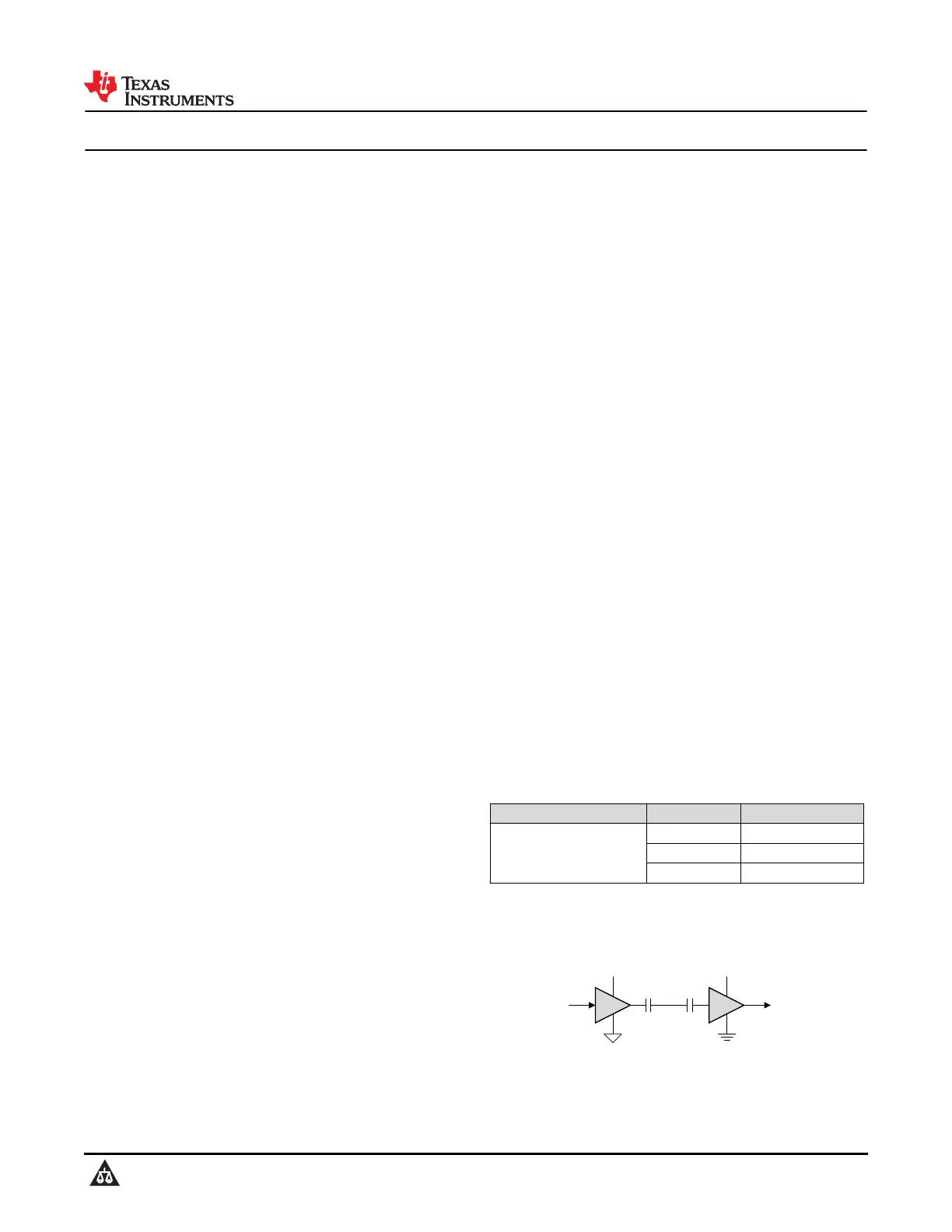

ISO772x-Q1 High-Speed, Robust EMC, Reinforced Dual-Channel Digital Isolators

1 Features

•Qualified for automotive applications

•AEC-Q100 qualified With the following results:

–Device temperature grade 1: –40°C to +125°C

ambient operating temperature range

–Device HBM ESD classification level 3A

–Device CDM ESD classification level C6

•Functional Safety-Capable

–Documentation available to aid functional safety

system design: ISO7720-Q1, ISO7721-Q1

•100 Mbps data rate

•Robust isolation barrier:

–>30-Year projected lifetime at 1.5 kV

RMS

working voltage

–Up to 5000 V

RMS

Isolation Rating

–Up to 12.8 kV surge capability

–±100 kV/μs Typical CMTI

•Wide supply range: 2.25 V to 5.5 V

•2.25-V to 5.5-V level translation

•Default output High (ISO772x) and Low

(ISO772xF) Options

•Low power consumption, typical 1.7 mA per

channel at 1 Mbps

•Low propagation delay: 11 ns typical

•Robust electromagnetic compatibility (EMC)

–System-Level ESD, EFT, and surge immunity

–±8 kV IEC 61000-4-2 contact discharge

protection across isolation barrier

–Low emissions

•Wide-SOIC (DW-16, DWV-8) and Narrow-SOIC

(D-8) package options

•Safety-related Certifications

–VDE reinforced insulation per DIN EN IEC

60747-17 (VDE 0884-17)

–UL 1577 component recognition program

–IEC 62368-1, IEC 61010-1, IEC 60601-1 and

GB 4943.1 certifications

2 Applications

•Hybrid, electric and power train system (EV/HEV)

–Battery management system (BMS)

–On-board charger

–Traction inverter

–DC/DC converter

–Inverter and motor control

3 Description

The ISO772x-Q1 devices are high-performance, dual-

channel digital isolators with 5000 V

RMS

(DW and

DWV packages) and 3000 V

RMS

(D package) isolation

ratings per UL 1577. This family includes devices with

reinforced insulation ratings according to VDE, CSA,

TUV and CQC.

The ISO772x-Q1 devices provide high

electromagnetic immunity and low emissions at

low power consumption, while isolating CMOS or

LVCMOS digital I/Os. Each isolation channel has a

logic input and output buffer separated by a double

capacitive silicon dioxide (SiO

2

) insulation barrier.

The ISO7720-Q1 device has both channels in the

same direction while the ISO7721-Q1 device has both

channels in the opposite direction. In the event of

input power or signal loss, the default output is high

for devices without suffix F and low for devices with

suffix F. See the Device Functional Modes section for

further details.

Used in conjunction with isolated power supplies,

these devices help prevent noise currents on data

buses, such as CAN and LIN, from damaging

sensitive circuitry. Through innovative chip design and

layout techniques, the electromagnetic compatibility

of the ISO772x-Q1 devices has been significantly

enhanced to ease system-level ESD, EFT, surge,

and emissions compliance. The ISO772x-Q1 family

of devices is available in 16-pin SOIC wide-body

(DW), 8-pin SOIC wide-body (DWV), and 8-pin SOIC

narrow-body (D) packages.

Device Information

PART NUMBER

(1)

PACKAGEBODY SIZE (NOM)

ISO7720-Q1

ISO7721-Q1

D (8)4.90 mm × 3.91 mm

DW (16)10.30 mm × 7.50 mm

DWV (8)5.85 mm × 7.50 mm

(1)For all available packages, see the orderable addendum at

the end of the datasheet.

OUTx

GNDOGNDI

V

CCO

V

CCI

Series Isolation

Capacitors

Copyright © 2016, Texas Instruments Incorporated

INx

V

CCI

=Input supply, V

CCO

=Output supply

ISO7720-Q1, ISO7721-Q1

SLLSEU1C – MARCH 2017 – REVISED DECEMBER 2024

An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty, changes, use in safety-critical applications,

intellectual property matters and other important disclaimers. PRODUCTION DATA.
