LM2005 107-V, 0.5-A, 0.8-A Half-Bridge Driver with

8-V UVLO and Integrated Bootstrap Diode

1 Features

•Drives two N-channel MOSFETs in half-bridge

configuration

•Integrated bootstrap diode

•8-V typical undervoltage lockout on GVDD

•107-V absolute maximum voltage on BST

•–19.5-V absolute maximum negative transient

voltage handling on SH

•0.5-A/0.8-A peak source/sink currents

•115-ns typical propagation delay

2 Applications

•Brushless-DC (BLDC) motors

•Permanent magnet synchronous motors (PMSM)

•Cordless vacuum cleaners

•Cordless garden and power tools

•E-bikes and e-scooters

•Battery test equipment

•Offline uninterruptible power supply (UPS)

•General-purpose MOSFET or IGBT driver

3 Description

The LM2005 is a compact, high-voltage gate driver

designed to drive both the high-side and the low-

side N-channel MOSFETs in a synchronous buck or

a half-bridge configuration. The integrated bootstrap

diode saves board space and reduces system cost by

eliminating the need for an external discrete diode.

The –1-V DC and –19.5-V transient negative

voltage handling on the SH pin improve the system

robustness in high noise applications. The small,

thermally-enhanced 8-pin WSON package improves

PCB layout by allowing the driver to be placed closer

to the motor phases. The LM2005 is also available

in an 8-pin SOIC package compatible with industry

standard pinouts. Undervoltage lockout (UVLO) is

provided on both the low-side and the high-side power

rails for protection during power up and power down.

Device Information

PART NUMBERPACKAGE

(1)

BODY SIZE (NOM)

LM2005

D (SOIC, 8)4.90 mm × 3.91 mm

DSG (WSON, 8)2.00 mm × 2.00 mm

(1)For all available packages, see the orderable addendum at

the end of the data sheet.

V

IN

V

BIAS

GVDD

INH

INL

GND

SH

GL

GH

BST

LOAD

1

2

3

4

8

7

6

5

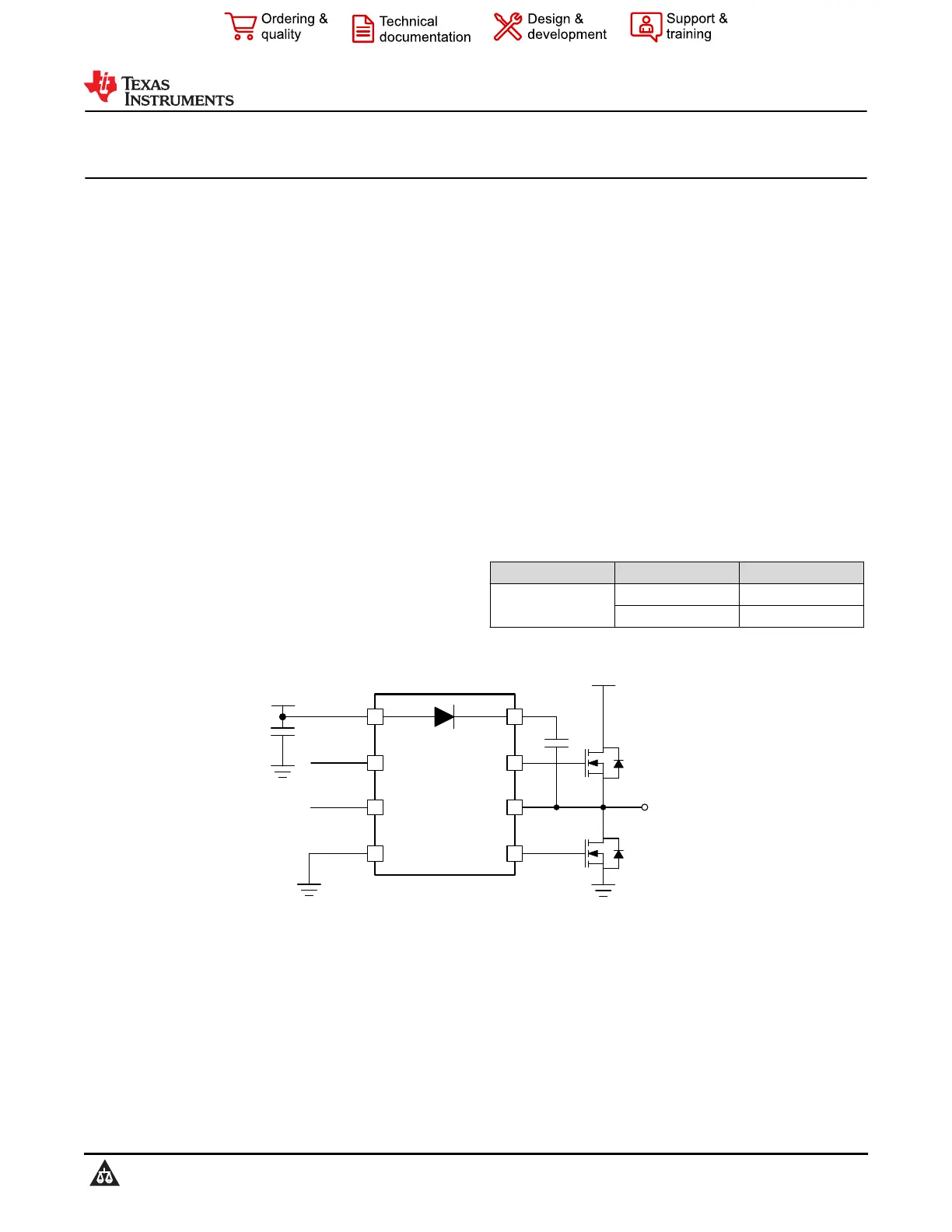

Simplified Application Diagram

LM2005

SNVSCB6B – FEBRUARY 2023 – REVISED SEPTEMBER 2023

An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty, changes, use in safety-critical applications,

intellectual property matters and other important disclaimers. PRODUCTION DATA.
