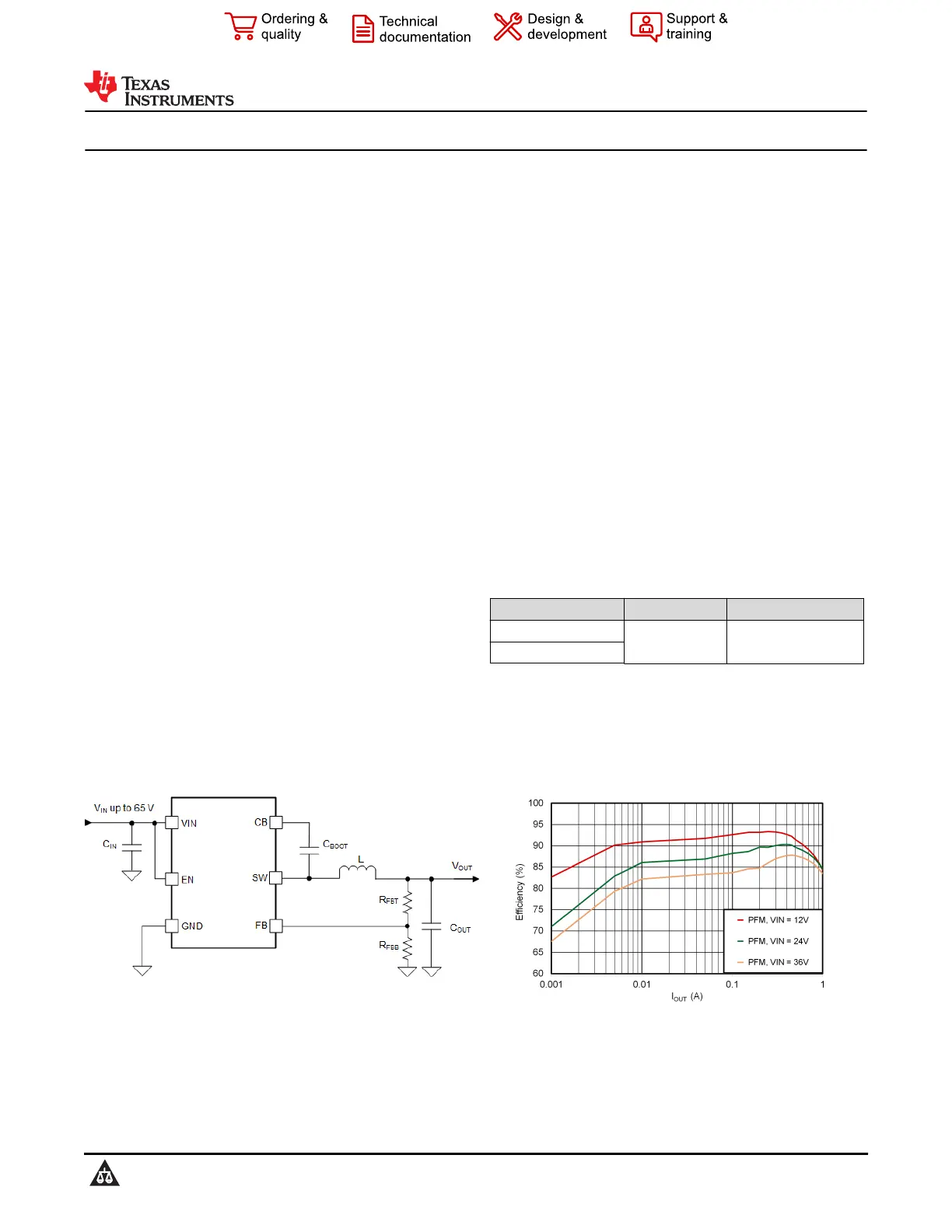

LMR516xx-Q1 4V to 65V, 0.6A / 1A, Automotive, Synchronous Buck Converter
1 Features
•AEC-Q100 qualified
–Temperature grade 1: –40°C to 125°C ambient
operating temperature range
•Functional Safety-Capable
–Documentation available to aid functional safety
system design
•Configured for rugged industrial applications
–4V to 65V input voltage range
–Input transient protection up to 70V
–0.6A / 1A continuous output current
–80ns minimum switching on time
–Fixed 400kHz switching frequency
––40°C to 150°C junction temperature range
–96% maximum duty cycle
–Monotonic start-up with prebiased output
–Short-circuit protection with hiccup mode
–Precision enable
•Small design size and ease of use
–Integrated synchronous rectification
–Internal compensation for ease of use
•Various options in pin-to-pin compatible package
–PFM and forced PWM (FPWM) options
•Pin-to-pin compatible with the LMR16006Y-Q1,
LM2842-Q1, LMR50410-Q1, and TPS560430-Q1
•Create a custom design using the LMR516xx-Q1
with the WEBENCH
®
Power Designer
2 Applications
•Body electronics and lighting
•Infotainment and cluster
•Advanced driver assistance systems (ADAS)
3 Description
The LMR516xx-Q1 is a wide-V
IN
, easy-to-use,
synchronous buck converter capable of driving up to
0.6A and 1A load current. With a wide input range of
4V to 65V, the device is designed for a wide range of
industrial applications for power conditioning from an
unregulated source.
The LMR516xx-Q1 operates at 400kHz switching
frequency to support use of relatively small inductors
for an optimized design size. The LMR516xx-Q1
has a PFM version to realize high efficiency at
light load and a FPWM version to achieve constant
frequency and small output voltage ripple over the full
load range. Soft-start and compensation circuits are
implemented internally, which allow the device to be
used with minimal external components.
The device has built-in protection features, such as
cycle-by-cycle current limit, hiccup mode short-circuit
protection, and thermal shutdown in case of excessive
power dissipation.
Device Information
PART NUMBER
(3)
PACKAGE
(1)
PACKAGE SIZE
(2)
LMR51606-Q1
DBV (SOT-23, 6)2.90mm × 2.80mm
LMR51610-Q1
(1)For more information, see Section 11.
(2)The package size (length × width) is a nominal value and
includes pins, where applicable.
(3)See the Device Comparison Table.
Simplified Schematic
Efficiency Versus Output Current
V
OUT
= 5V, 400kHz
LMR51606-Q1, LMR51610-Q1
SLUSFL7 – AUGUST 2024
An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty, changes, use in safety-critical applications,
intellectual property matters and other important disclaimers. PRODUCTION DATA.
