MAX202 5-V Dual RS-232 Line Driver and Receiver With ±15-kV ESD Protection

1 Features

•Meets or exceeds the requirements of

TIA/EIA-232-F and ITU v.28 standards

•ESD protection for RS-232 bus pins: ±15kV

human-body model

•Operates at 5V V

CC

supply

•Operates up to 120kbit/s

•Two drivers and two receivers

•Latch-up performance exceeds 100mA Per JESD

78, class II

2 Applications

•Battery-powered systems

•Notebooks

•Laptops

•Palmtop PCs

•Hand-held equipment

3 Description

The MAX202 device consists of two line drivers,

two line receivers, and a dual charge-pump

circuit with ±15kV ESD protection pin to pin

(serial-port connection pins, including GND). The

device meets the requirements of TIA/EIA-232-F

and provides the electrical interface between an

asynchronous communication controller and the

serial-port connector. The charge pump and four small

external capacitors allow operation from a single 5V

supply. The device operates at data signaling rates up

to 120kbit/s and a maximum of 30V/µs driver output

slew rate.

Package Information

PART NUMBERPACKAGE

(1)

PACKAGE SIZE

(2)

MAX202

SOIC (D) (16)9.9mm × 6mm

SOIC WIDE (DW) (16)10.4mm × 10.3mm

TSSOP (PW) (16)5 mm x 6.4mm

(1)For more Information, see Section 10.

(2)The package size (length × width) is a nominal value and

includes pins, where applicable.

RX

TX

POWER

5 V

DIN

ROUT

DOUT

RS-232

RIN

RS-232

2

2

120 kb/s

2

2

15 kV HBM

Copyright © 2016,Texas Instruments Incorporated

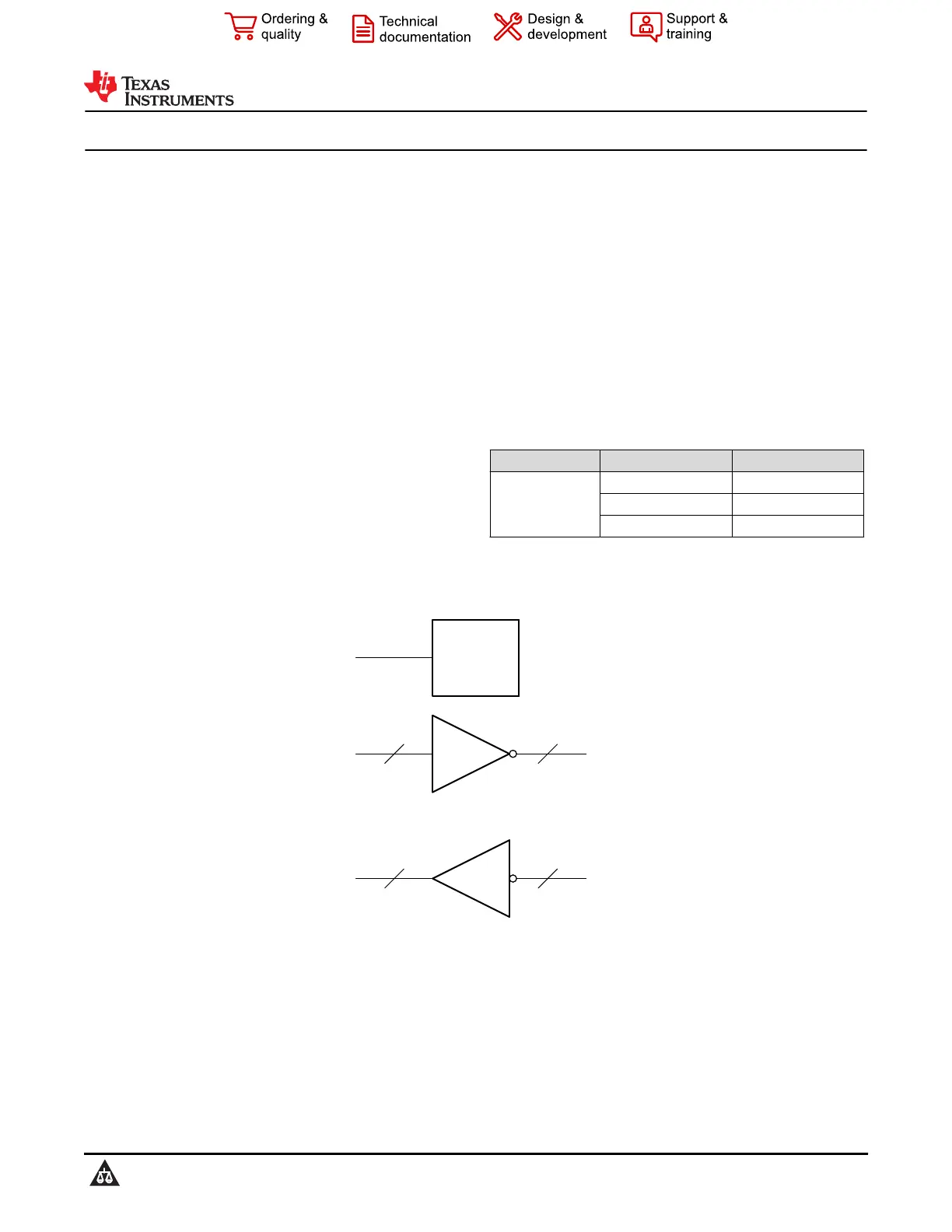

Block Diagram

MAX202

SLLS576G – JULY 2003 – REVISED FEBRUARY 2024

An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty, changes, use in safety-critical applications,

intellectual property matters and other important disclaimers. PRODUCTION DATA.
