MC3486 Quadruple Differential Line Receiver with 3-State Outputs
1 Features
•Meets or exceeds the requirements of ANSI
standards EIA/TIA-422-B and EIA/TIA-423-B and
ITU Recommendations V.10 and V.11
•3-State, TTL-compatible outputs
•Fast transition times
•Operates from single 5-V supply
•Designed to be interchangeable with Motorola
™
MC3486
2 Applications
•Motor drives
•Factory automation and control
3 Description
The MC3486 is a monolithic quadruple differential line
receiver designed to meet the specifications of ANSI
Standards TIA/EIA-422-B and TIA/EIA-423-B and ITU
Recommendations V.10 and V.11. The MC3486 offers
four independent differential-input line receivers that
have TTL-compatible outputs. The outputs utilize 3-
state circuitry to provide a high-impedance state at
any output when the appropriate output enable is at a
low logic level.
The MC3486 is designed for optimum performance
when used with the MC3487 quadruple differential
line driver. It is supplied in a 16-pin package and
operates from a single 5-V supply.
The MC3486 is characterized for operation from 0°C
to 70°C.
Package Information
PART NUMBERPACKAGE
(1)
PACKAGE SIZE
(2)
MC3486
D (SOIC, 16)19.3 × 9.4 mm
N (PDIP, 16)19.3 × 9.4 mm
NS (SOP, 16)10.2 mm × 7.8 mm
(1)For more information, see Section 10.
(2)The package size (length × width) is a nominal value and
includes pins, where applicable.

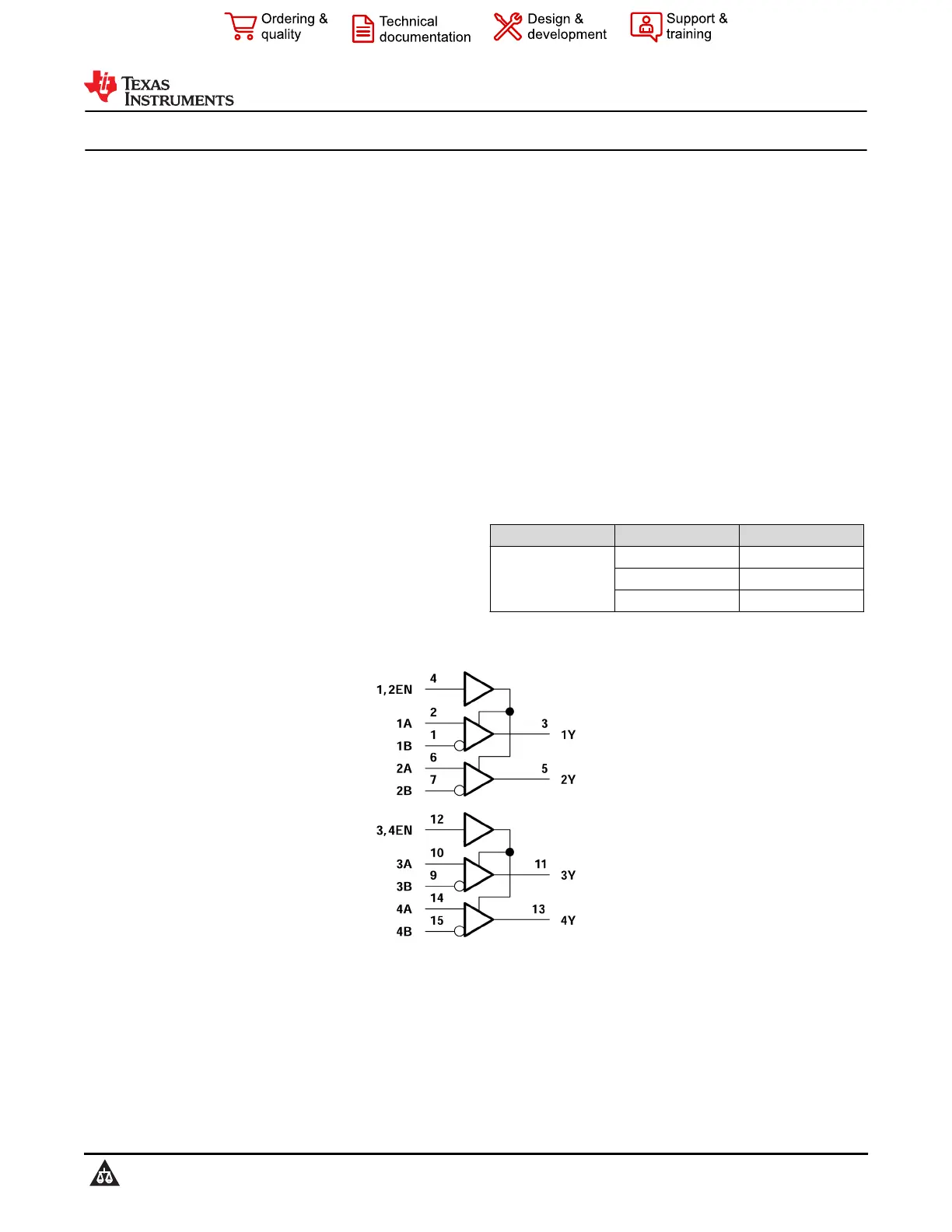

Logic Diagram (Positive Logic)
MC3486
SLLS097D – JUNE 1980 – REVISED OCTOBER 2023
An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty, changes, use in safety-critical applications,
intellectual property matters and other important disclaimers. PRODUCTION DATA.
