E X P E R I M E N T M A N U A L
Franckh-Kosmos Verlags-GmbH & Co. KG, Pfizerstr. 5-7, 70184 Stuttgart, Germany | +49 (0) 711 2191-0 | www.kosmos.de
Thames & Kosmos, 301 Friendship St., Providence, RI, 02903, USA | 1-800-587-2872 | www.thamesandkosmos.com
Thames & Kosmos UK Ltd, Goudhurst, Kent, TN17 2QZ , United Kingdom | 01580 212000 | www.thamesandkosmos.co.uk
WARNING — Science Education Set.
This set contains chemicals and/or parts that
may be harmful if misused. Read cautions on
individual containers and in manual carefully.
Not to be used by children except under
adult supervision.
You will also need:
Four AA batteries (1.5-volt, type LR6/AA), deionized
or distilled water from the hardware store or
supermarket, sugar, salt, cooking oil, baking soda,
lemon, vinegar, citric acid, teaspoon, dishwashing
liquid, glass, clean yogurt container, paper towel
roll, bowl, saucer, fork, aluminum foil, tap water
(warm and cold), two books, transparent tape,
30-cm ruler, metal paper clips, sheet of paper and
cardboard, soft lead pencil, copper penny, zinc-
coated washer (hardware store), long iron nail, and
objects made of the following materials: porcelain,
plastic, wood, glass, styrofoam, cork, iron, and other
metals.
The
components
in your kit
This list provides brief
descriptions and illustrations of
all the components in this
experiment kit.
Component name Component description Component pictureQty.
Battery compartment
Item no. 714721
1
This box supplies the current you need for all the
experiments. Before starting, insert four AA
batteries (1.5-volt, type LR6/AA). Then, you will
be able to draw electrical current from the two
terminals (+ and -).
NOTE! Never connect the battery terminals
directly to each other! The battery and wires
could become hot and explode, and the battery
will also quickly go dead.
6 Volt
Selector switch
Item no. 705055
2
This electrically connects two of the three contact
plugs, depending on the position of the switch
knob.
Pushbutton
Item no. 705054
1
This electrically connects the two terminals when
you press the button.
Connector with 4 terminals
(X-shaped)
Item no. 705050
25
For connecting components. The metal plugs of
other components are inserted into the side slits so
that they are electrically connected to each other
as indicated by the white lines. In the instructions,
they are called “X-connectors.”
Straight connector with 2
prongs (I-shaped)
Item no. 705051
8
For connecting components. The two plugs are
electrically connected to each other. In the
instructions, they are referred to as “I-connectors.”
Angled connector with 2
prongs (L-shaped)
Item no. 705052
4
For the electrical connection of components, but
in a way that guides the current at a right angle.
Looks like an “L,” hence referred to as an
“L-connector” in the instructions.
Connector with 3 prongs
(T-shaped)
Item no. 705053
1
For electrical connections. The three plugs are
electrically connected to each other as indicated
by the white lines. In the instructions, they are
referred to as “T-connectors” due to their shape.
›
›
›
KIT CONTENTS
Kit Contents
GOOD TO KNOW!
If you are missing any parts, please
contact Thames & Kosmos customer service for replacements.
3

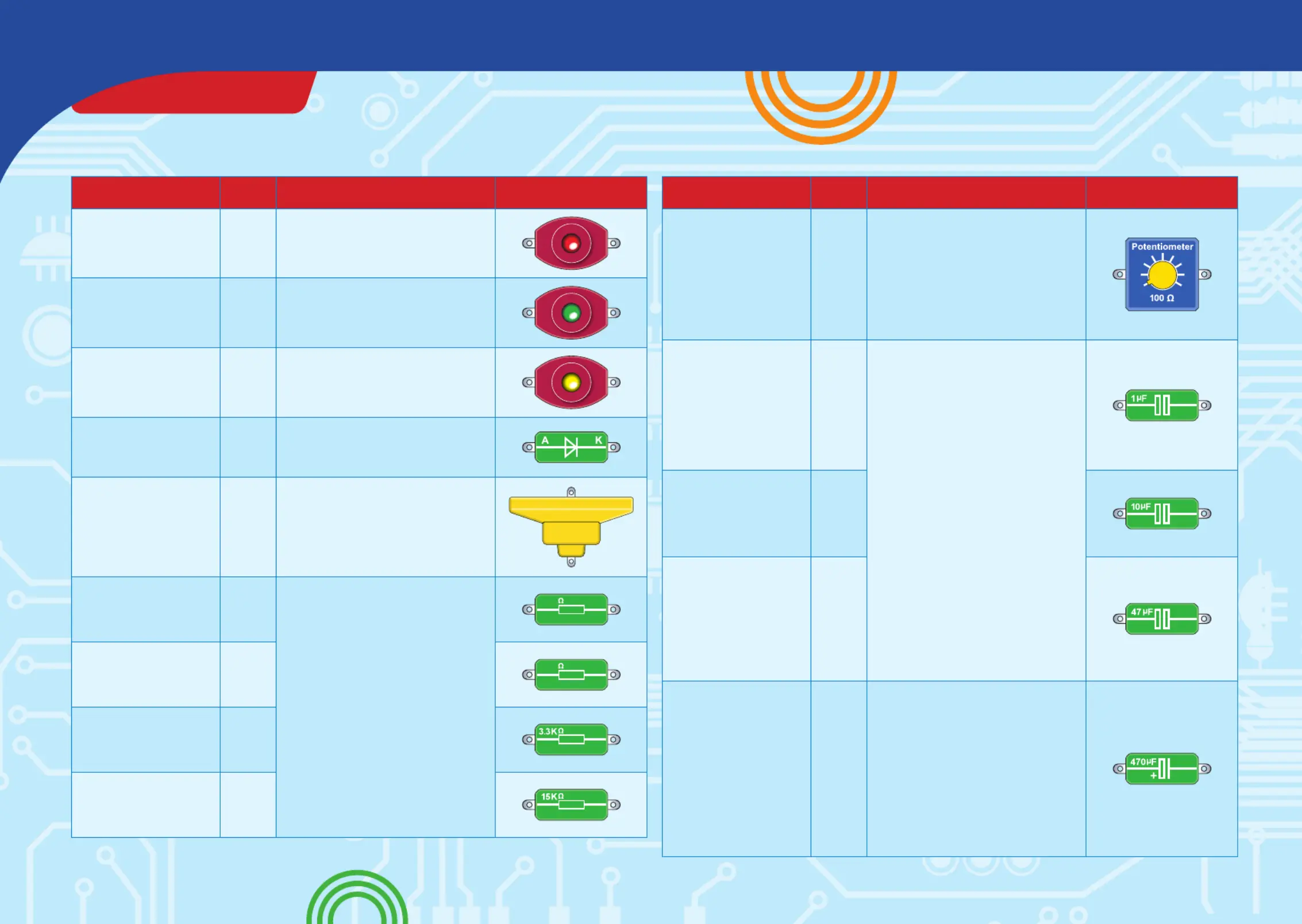

Component name Component description Component pictureQty.
Red bulb
(6 volts/50 mA)
Item no. 714717
1
When current is flowing through it in
the proper direction, this emits red
light.
Green bulb
(6 volts/50 mA)
Item no. 714718
1
This shines with a green light when
current flows through it.
Yellow bulb (6
volts/50 mA)
Item no. 714719
1
This shines with a yellow light when
current flows through it.
Silicon diode
Item no. 712926
4
An electrical valve that only allows
current to flow in one direction, and
blocks it in the other.
Speaker
Item no. 708805
1
This converts the alternating current
oscillations into something you can
hear.
Resistor
56 ohms (56 Ω)
Item no. 715367
1
Electrical resistors offer resistance to
electric current — hence their name.
They are used to regulate the flow of
current. They come in various
electrical magnitudes, indicated in
“ohms” (Ω) or “kilohms” (kΩ).
Resistors with larger values let less
current through than ones with
smaller values printed on them.
CAUTION! Always use the resistor
with the correct value, as specified in
the assembly diagram.
56
Resistor
120 ohms (120 Ω)
Item no. 715368
2
120
Resistor
3.3 kilohms (3.3 kΩ)
Item no. 712944
1
Resistor
15 kilohms (15 kΩ)
Item no. 715369
1
Component name Component description Component pictureQty.
Potentiometer (pot)
100 kΩ
Item no. 714732
1
A continuously adjustable resistor
with a maximum resistance of about
100 kilohms. Informally known as a
“pot.”
Capacitor
1 microfarad (1 μF)
Item no. 714740
1
Capacitors are used to store electrical
charges, with current flowing when
they charge or discharge. The
capacitance of a capacitor is indicated
in “farads.” Capacitors typically have
a small capacitance indicated in
“microfarads” (μF). 1 microfarad
equals one millionth of a farad. With
our bipolar electrolytic capacitors,
unlike ordinary electrolytic
capacitors like the 470-μF capacitor,
you don’t have to pay attention to
polarity. The 10-μF capacitor has ten
times the capacitance of the 1-μF
capacitor. The 47-μF capacitor
accordingly has 47 times the
capacitance.
Capacitor
microfarads (10 μF)
Item no. 714742
2
Capacitor
47 microfarads (47
μF)
Item no. 714733
1
Electrolytic capacitor
470 microfarads (470
μF)
Item no. 712954
2
This capacitor has 470 times the
electricity storage capacity of the
1-μF capacitor. Always install it as
shown in the circuit diagram.
WARNING! Pay attention to the proper
polarity (+ and -), or the capacitor
could get damaged or might even
explode!
›
›
›
KIT CONTENTS
4
