Dear Valued Customer,

Thank you for choosing Thermaltake.

As a new user we value your thoughts and opinions and

your feedback is important to us. We at Thermaltake

would like to use this opportunity to invite you to join our

Community Forums. Register today to start enjoying the

full benefits of our community.

Benefits of being a member:

Quick and responsive user support

Receive help and advice with new builds

Keep up to date with new product releases

Share your thoughts and builds with the community

Enter monthly contests and giveaways

Tt LCS Certified is a Thermaltake exclusive certification

applied to only products that pass the design and

hardcore enthusiasts standards that a true LCS chassis

should be held to. The Tt LCS certification was created

so that we at Thermaltake can designate to all power

users which chassis have been tested to be best

compatible with extreme liquid cooling configurations to

ensure you get the best performance from the best

features and fitment.

Brand official website

http://www.thermaltake.com/

Global Facebook

https://www.facebook.com/ThermaltakeInc

TT Premium

To continue achieving the corporate mission of delivering the

perfect user experience, Thermaltake developed “TT Premium”

with the essence of combining supreme quality products with a

new logo design. TT Premium is far more than just a guarantee

of quality. Behind the name, it represents the passion in DIY,

Modding and Thermaltake’s desire to be the most innovative

brand in the PC hardware market. To satisfy the demand of the

high-end PC users, TT Premium follows its core values of

Excellent Quality, Unique Design, Diverse Combinations and

Boundless Creativity to provide a high performance PC product

for every enthusiast. http://ttpremium.com

Taiwan Facebook

http://www.facebook.com/ThermaltakeTW

Global community forums

http://community.thermaltake.com

Chapter 1. Product Introduction

Specification

Accessory

Warning and Notice

1.0

1.1

1.2

Contents

Chapter 2. Installation Guide

2.0

2.1

2.2

2.3

2.4

2.5

2.6

2.7

2.8

2.9

2.10

Remove Components

Power Supply Unit (PSU) Installation

Motherboard Installation

VGA Card Installation

3.5" & 2.5" HDD Installation

Liquid Cooling Installation

AIO Liquid Cooling Installation

Air Cooling Installation

I/O Connection

ARGB Control Instruction

Remove Filters

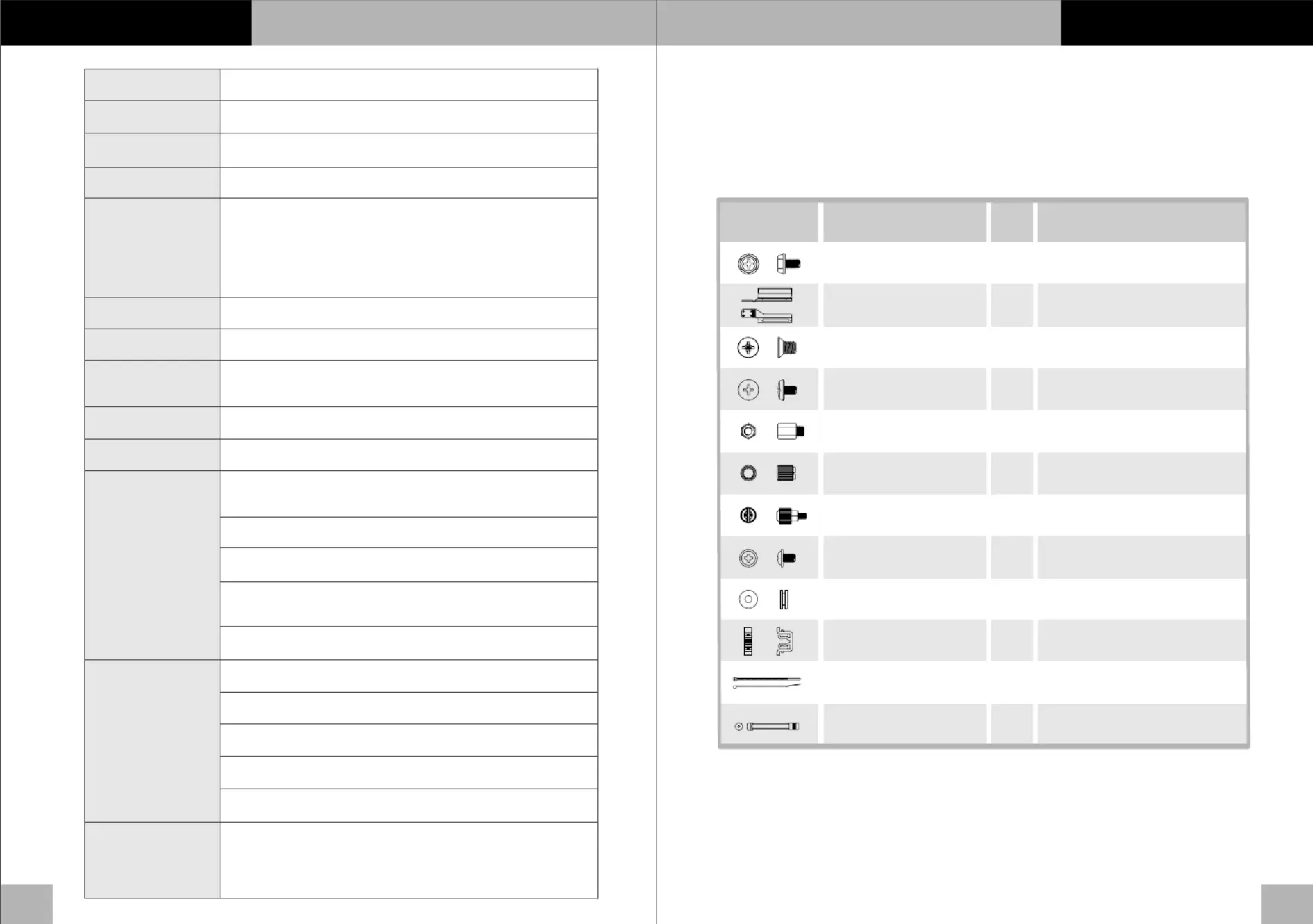

Specification

01 02

Accessory

CTE C750 TG ARGB CTE C750 TG ARGB

Full Tower

Radiator Support

Case Type

Dimension (H*W*D) 565.2 x 327 x 599.2 mm (22.25 x 12.87 x 23.59 inch)

Fan Support

Clearance

Front: 3 x 120mm, 2 x 120mm, 1 x 120mm

3 x 140mm, 2 x 140mm, 1 x 140mm

2 x 200mm, 1 x 200mm

Top: 2 x 120mm, 1 x 120mm

2 x 140mm, 1 x 140mm

Right (M/B Side): 3 x 120mm, 2 x 120mm, 1 x 120mm

3 x 140mm, 2 x 140mm, 1 x 140mm

Rear: 3 x 120mm, 2 x 120mm, 1 x 120mm

3 x 140mm, 2 x 140mm, 1 x 140mm

2 x 200mm, 1 x 200mm

Bottom: 3 x 120mm, 2 x 120mm, 1 x 120mm

3 x 140mm, 2 x 140mm, 1 x 140mm

Front: 1 x 360mm, 1 x 240mm, 1 x 120mm

1 x 420mm(AIO only), 1 x 280mm, 1 x 140mm

Top: 1 x 240mm, 1 x 120mm

1 x 140mm

Right (M/B Side): 1 x 360mm, 1 x 240mm, 1 x 120mm

1 x 420mm(AIO only), 1 x 280mm, 1 x 140mm

Rear: 1 x 360mm, 1 x 240mm, 1 x 120mm

1 x 420mm(AIO only), 1 x 280mm, 1 x 140mm

Bottom: 1 x 360mm, 1 x 240mm, 1 x 120mm

1 x 280mm, 1 x 140mm

Drive Bays

7 x 3.5” or 12 x 2.5”

Expansion Slots

Motherboards

6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX),

12” x 9.6” (ATX), 12” x 13” (E-ATX)

I/O Port

USB 3.2 (Gen 2) Type C x 1, USB 3.0 x 4, HD Audio x 1

Side Panel

Tempered Glass x 1

CPU cooler height limitation: 190mm

VGA length limitation: 370mm (With Radiator)

420mm (Without Radiator)

PSU length limitation: 220mm

PSU

Standard PS2 PSU (optional)

Material

SPCC / ABS

Cooling System

Front (intake) :

140 x 140 x 25 mm CT140 ARGB fan (1500rpm, 30.5 dBA) x 1

Top (exhaust) :

140 x 140 x 25 mm CT140 ARGB fan (1500rpm, 30.5 dBA) x 1

Rear (intake) :

140 x 140 x 25 mm CT140 ARGB fan (1500rpm, 30.5 dBA) x 1

Buzzer

Zip Ties

Screw #6-32*6.0mm

Screw M3*6.0mm

Cable Management

Motherboard Alarm

Q`tyPart NameFigure Used For

Power SupplyScrew #6-32*6.0mm

Nut Setter

Motherboard Stand-off Installation

Stand-off #6-32*7.5mm

3.5" HDD3.5" HDD Rubber

2.5" HDD

2.5" SSD

PCI-E Riser Cable

Motherboard / 3.5" HDD

Motherboard

PCI-E Riser Cable

Thumb Screw #6-32*6.0mm

VGA Card

Side PanelClip

Screw Flat #6-32*5.0mm

PCI-E Riser Bracket PCI-E Riser Cable

PCI-E Riser Bracket

Produktspezifikationen

Marke:	Thermaltake
Kategorie:	Computergehäuse
Modell:	CTE C750 TG ARGB
Breite:	327 mm
Tiefe:	599.2 mm
Gewicht:	4500 g
Produktfarbe:	Weiß
Höhe:	565.2 mm
Material:	ABS, Tempered glass
Typ:	PC
Ein-/Ausschalter:	Nein
Formfaktor:	Full Tower
USB 3.2 Gen 1 (3.1 Gen 1) Anzahl der Anschlüsse vom Typ A:	4
USB 3.2 Gen 2 (3.1 Gen 2) Anzahl der Anschlüsse vom Typ C:	1
Reset-Knopf:	Ja
Geeignet für:	Gaming
Netzteil enthalten:	Nein
Kombinierter Kopfhörer-/Mikrofon-Anschluss:	Ja
Anti-Staubfilter:	Ja
Anzahl der 3,5" Erweiterungseinschübe:	7
Anzahl der 2,5" Erweiterungseinschübe:	12
Seitenfenster:	Ja
Gebläsegeschwindigkeit:	500 - 1500 RPM
Unterstützte Hard-Disk Drive Größen:	2.5, 3.5 "
Unterstützte Motherboards Formfaktoren:	ATX, EATX, Micro ATX, Mini-ITX
Anzahl der Erweiterungsslots:	7
Gehärtete(s) Glaspaneel(e):	Ja
Max CPU Kühler-Höhe:	190 mm
Max Grafikkarten-Länge:	420 mm
Maximum PSU Länge:	220 mm
Anzahl unterstützter unterer Lüfter (max.):	3
Durchmesser unterstützte Unterlüfter:	120,140 mm
Anzahl unterstützter Seitenlüfter (max.):	3
Durchmesser unterstützte Seitenlüfter:	120,140 mm
Installierte Lüfter hinten:	1x 140 mm
Installierte Lüfter (Vorderseite):	1x 140 mm
Anzahl unterstützter vorderer Lüfter (max.):	3
Durchmesser unterstützte Vorderseitenlüfter:	120,140,200 mm
Anzahl der unterstützten oberen Lüfter (max.):	2
Unterstützte Lüfterdurchmesser (oben):	120,140 mm
Anzahl der unterstützten hinteren Lüfter (max.):	3
Durchmesser unterstützter Rückseitenlüfter:	120,140,200 mm
Installierte Lüfter seitlich:	3x 120 mm, 3x 140 mm
Installierte Lüfter oben:	1x 140 mm
