Seite 1/10

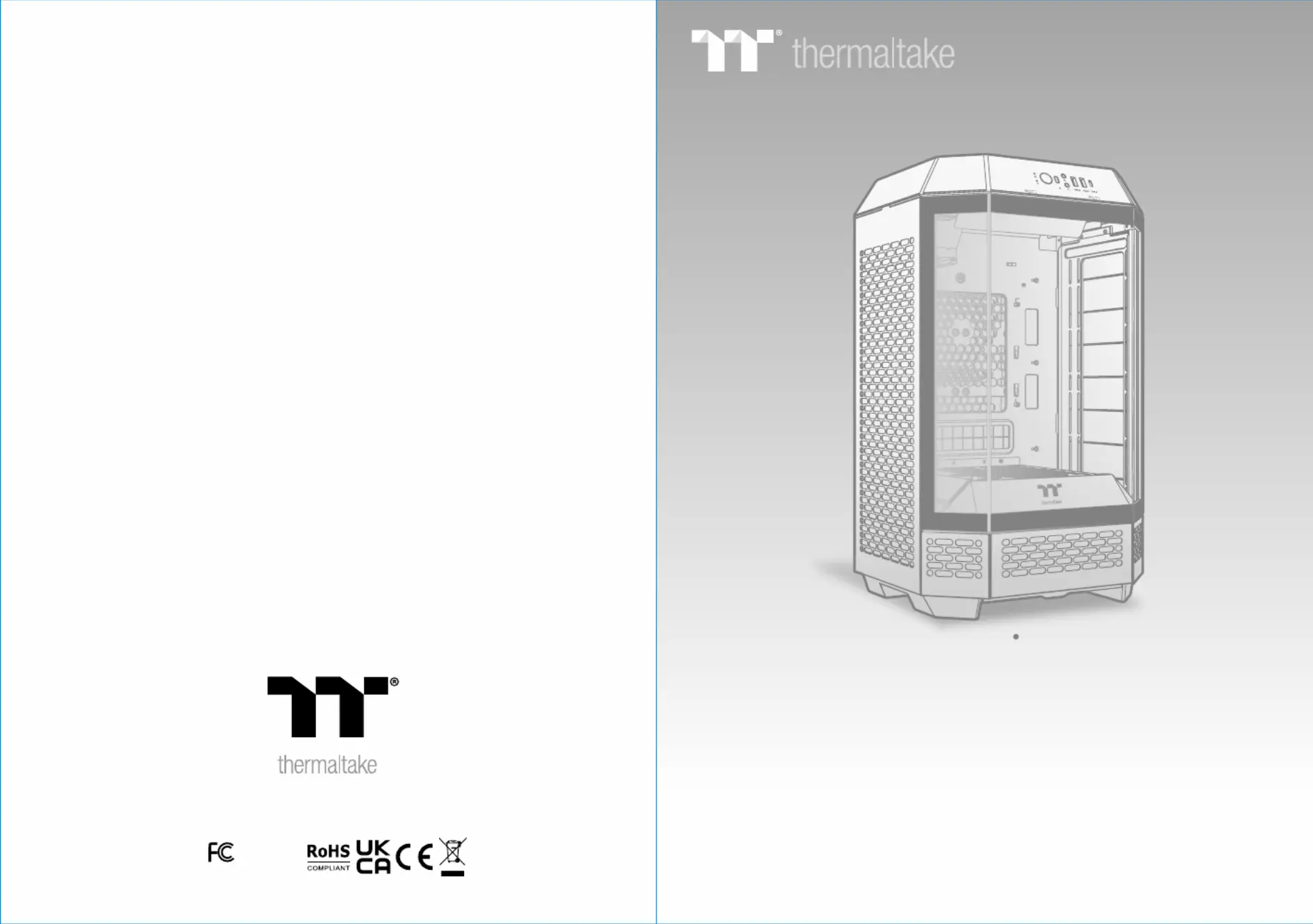

Picture is for reference only
The Tower 250
User's Manual
明書
Benutzerhandbuch
用戶手冊ユーザーズマニュアル
Mode d’emploi
Руководство пользователя
©2024 Thermaltake Technology Co., Ltd. All Rights Reserved. 2024.09
All other registered trademarks belong to their respective companies.
www.thermaltake.com
Manual del usuario
kullan c elkitabı ı ı
Manuale dell’utente
(EEE Yönetmeli ine Uygundur)ğ
Tested To Comply
With FCC Standards
Manual do Utilizador
คู่มือการใช้
FOR HOME OR OFFICE USE
Join Tt Community To Receive Benefits
Tt LCS-Liquid Cooling Support Certification
TT Premium
Dear Valued Customer,
Thank you for choosing Thermaltake.
As a new user we value your thoughts and opinions and
your feedback is important to us. We at Thermaltake
would like to use this opportunity to invite you to join our
Community Forums. Register today to start enjoying the
full benefits of our community.
Benefits of being a member:
Quick and responsive user support
Receive help and advice with new builds
Keep up to date with new product releases
Share your thoughts and builds with the community
Enter monthly contests and giveaways
Tt LCS Certified is a Thermaltake exclusive certification
applied to only products that pass the design and
hardcore enthusiasts standards that a true LCS chassis
should be held to. The Tt LCS certification was created
so that we at Thermaltake can designate to all power
users which chassis have been tested to be best
compatible with extreme liquid cooling configurations to
ensure you get the best performance from the best
features and fitment.
Brand official website
http://www.thermaltake.com/
Global Facebook
https://www.facebook.com/ThermaltakeInc
TT Premium
To continue achieving the corporate mission of delivering the
perfect user experience, Thermaltake developed “TT Premium”
with the essence of combining supreme quality products with a
new logo design. TT Premium is far more than just a guarantee
of quality. Behind the name, it represents the passion in DIY,
Modding and Thermaltake’s desire to be the most innovative
brand in the PC hardware market. To satisfy the demand of the
high-end PC users, TT Premium follows its core values of
Excellent Quality, Unique Design, Diverse Combinations and
Boundless Creativity to provide a high performance PC product
for every enthusiast. http://ttpremium.com
Taiwan Facebook
http://www.facebook.com/ThermaltakeTW
Global community forums
http://community.thermaltake.com
Chapter 1. Product Introduction
Specification
Accessory
Warning and Notice
1.0
1.1
1.2
01
02
03
Contents
Chapter 2. Installation Guide
2.0
2.1
2.2
2.3
2.4
2.5
2.6
2.7
2.8
Remove Panels
Power Supply Unit (PSU) Installation
Motherboard Installation
3.5" & 2.5" HDD Installation
VGA Card Installation
Air Cooling Installation
AIO Liquid Cooling Installation
I/O Connection
Remove Filters
06
07
09
10
12
13
14
15
16
The Tower 250
Specification Accessory
The Tower 250
Case Type
Mini Tower
Figure Part Name Q’ty Used For
Dimension (H*W*D)
506 x 300 x 281 mm (19.9 x 11.8 x 11.5 inch)
Side Panel Tempered Glass x 3
Screw x mm #6-32 6
4
Power Supply
Material SPCC
Screw x mm #6-32 6
14
Motherboard / 3.5” HDD
Cooling System
Top (exhaust):
120 x 120 x 25 mm CT120 fan (2000 rpm, 25.8 dBA) x 2
Screw M x mm 3 5
8
2.5” SSD / HDD
Drive Bays
1 x 3.5” or 2 x 2.5”
Screw x 29 mm #6-32
4
Case Fan on the Power Cover
Expansion Slots
3
Motherboards
6.7” x 6.7” (Mini ITX)
Screw T5 x 10 mm
8
Case Fan
I/O Port
USB 3.2 Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1 (
Stand-off #6-32 x 6.5 mm
3
Motherboard
PSU
Standard SFX or ATX PSU (optional)
Top
2 x 120 mm, 1 x 120 mm
Nut setter
1
Motherboard Stand-off
Fan Support
Right Side
Rear
3 x 120 mm, 2 x 120 mm, 1 x 120 mm
2 x 120 mm, 1 x 120 mm
2 x 140 mm, 1 x 140 mm
2 x 140 mm, 1 x 140 mm
Zip Ties
10
Cable Management
Power Cover
1 x 120 mm 1 x 140 mm
Radiator Support
Right Side (AIO)
1 x 360 mm, 1 x 240 mm, 1 x 120 mm 1 x 280 mm,1 x 140 mm
Buzzer
1
Motherboard Alarm
CPU cooler height
limitation
210 mm
Side Plate Clip
6
Side Panel
Clearance
VGA length limitation
245 mm (With power cover)
360 mm (Without power cover)
PSU length limitation
200 mm
Bottom Front Panel
1
LCD Display
ATX PSU Bracket
1
ATX PSU
Velcro-1 meter
1
Cable Management
01 02
