Seite 1/10

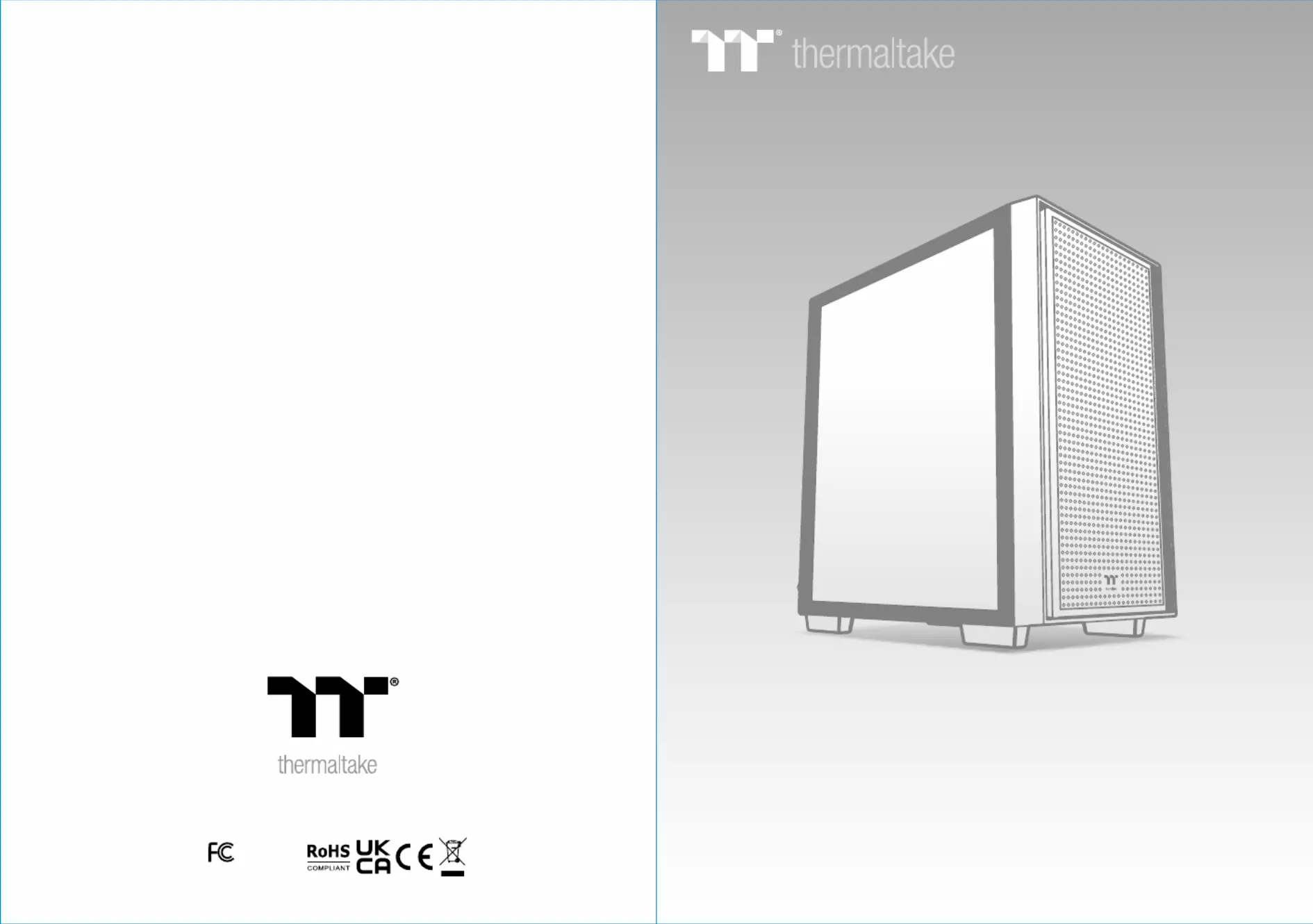

All other registered trademarks belong to their respective companies.
www.thermaltake.com
© 2024 Thermaltake Technology Co., Ltd. All Rights Reserved. 2024.08
Tested To Comply
With FCC Standards
FOR HOME OR OFFICE USE
Versa H16 TG ARGB
User's Manual
Benutzerhandbuch
Mode d’emploi
Manual del usuario
Manuale dell’utente
Manual do Utilizador
明書
用戶手冊ユーザーズマニュアル
Руководство пользователя
kullan c elkitabı ı ı
(EEE Yönetmeli ine Uygundur)ğ
คู่มือการใช้
Join Tt Community To Receive Benefits
Tt LCS-Liquid Cooling Support Certification
TT Premium
Dear Valued Customer,
Thank you for choosing Thermaltake.
As a new user we value your thoughts and opinions and
your feedback is important to us. We at Thermaltake
would like to use this opportunity to invite you to join our
Community Forums. Register today to start enjoying the
full benefits of our community.
Benefits of being a member:
Quick and responsive user support
Receive help and advice with new builds
Keep up to date with new product releases
Share your thoughts and builds with the community
Enter monthly contests and giveaways
Tt LCS Certified is a Thermaltake exclusive certification
applied to only products that pass the design and
hardcore enthusiasts standards that a true LCS chassis
should be held to. The Tt LCS certification was created
so that we at Thermaltake can designate to all power
users which chassis have been tested to be best
compatible with extreme liquid cooling configurations to
ensure you get the best performance from the best
features and fitment.
Brand official website
http://www.thermaltake.com/
Global Facebook
https://www.facebook.com/ThermaltakeInc
TT Premium
To continue achieving the corporate mission of delivering the
perfect user experience, Thermaltake developed “TT Premium”
with the essence of combining supreme quality products with a
new logo design. TT Premium is far more than just a guarantee
of quality. Behind the name, it represents the passion in DIY,
Modding and Thermaltake’s desire to be the most innovative
brand in the PC hardware market. To satisfy the demand of the
high-end PC users, TT Premium follows its core values of
Excellent Quality, Unique Design, Diverse Combinations and
Boundless Creativity to provide a high performance PC product
for every enthusiast. http://ttpremium.com
Taiwan Facebook
http://www.facebook.com/ThermaltakeTW
Global community forums
http://community.thermaltake.com
Chapter 1. Product Introduction
Specification
Accessory
Warning and Notice
1.0
1.1
1.2
01
02
03
Contents
Chapter 2. Installation Guide
2.0
2.1
2.2
2.3
2.4
2.5
2.6
2.7
2.8
Remove Panels
Power Supply Unit (PSU) Installation
Motherboard Installation
3.5" & 2.5" HDD Installation
VGA Card Installation
Air Cooling Installation
AIO Liquid Cooling Installation
I/O Connection
Remove Filters
06
07
08
09
11
12
13
14
15
Figure
Use For
Q ty’
Part Name
3.5” HDD
Specification
01 02
Accessory
Versa H16 TG ARGB Versa H16 TG ARGB
Small Tower
Radiator Support
Case Type
Dimension (H*W*D) 404 x 216 x 378 mm (15.9 x 8.5 x 14.9 inch)
Fan Support
Clearance
Front: 2 x 120 mm, 1 x 120 mm
2 x 140 mm, 1 x 140 mm
Top: 2 x 120 mm, 1 x 120 mm
2 x 140 mm, 1 x 140 mm
Rear: 1 x 120 mm
Drive Bays
2 x 3.5”, 2 x 2.5” or 1 x 3.5”, 3 x 2.5”
Expansion Slots
4
Motherboards
6.7” x 6.7” (Mini ITX), 9.6 ” x 9.6” (Micro ATX)
PSU
I/O Port
Side Panel
Tempered Glass x 1
CPU cooler height limitation: 175mm
VGA length limit ation: 330mm
PSU length limitation: 170mm
Material
SPCC
Cooling System
Screw #6-32 x 6 mm
Zip Ties
Motherboard
10
Cable Management
Buzzer Motherboard Alarm
1
Front (intake):
120 x 120 x 25 mm ARGB Lite fan (1000 rpm, 22.3 dBA) x 2
Rear (exhaust):
120 x 120 x 25 mm ARGB Lite fan (1000 rpm, 22.3 dBA) x 1
Front: 1 x 240 mm, 1 x 120 mm
1 x 280 mm, 1 x 140 mm
Top: 1 x 240 mm, 1 x 120 mm
Rear: 1 x 120 mm
3
Power Supply / PCI
Screw #6-32 x 6 mm
8
Stand-off #6-32 x 6 mm
23
1
Motherboard Stand-off Installation
7
Motherboard / 2.5” SSD / HDDScrew M3 x 5 mm
Nut Setter
Standard PS2 PSU (optional)
USB 3.0 x 2 USB 2.0 x 1, microphone x 1, earphone x 1,
