Shipping Informaon:

Weight……………… …25 lbs.

Length…………..………21 in.

Width……………....….10.5 in.

Height……………...…..14 in.

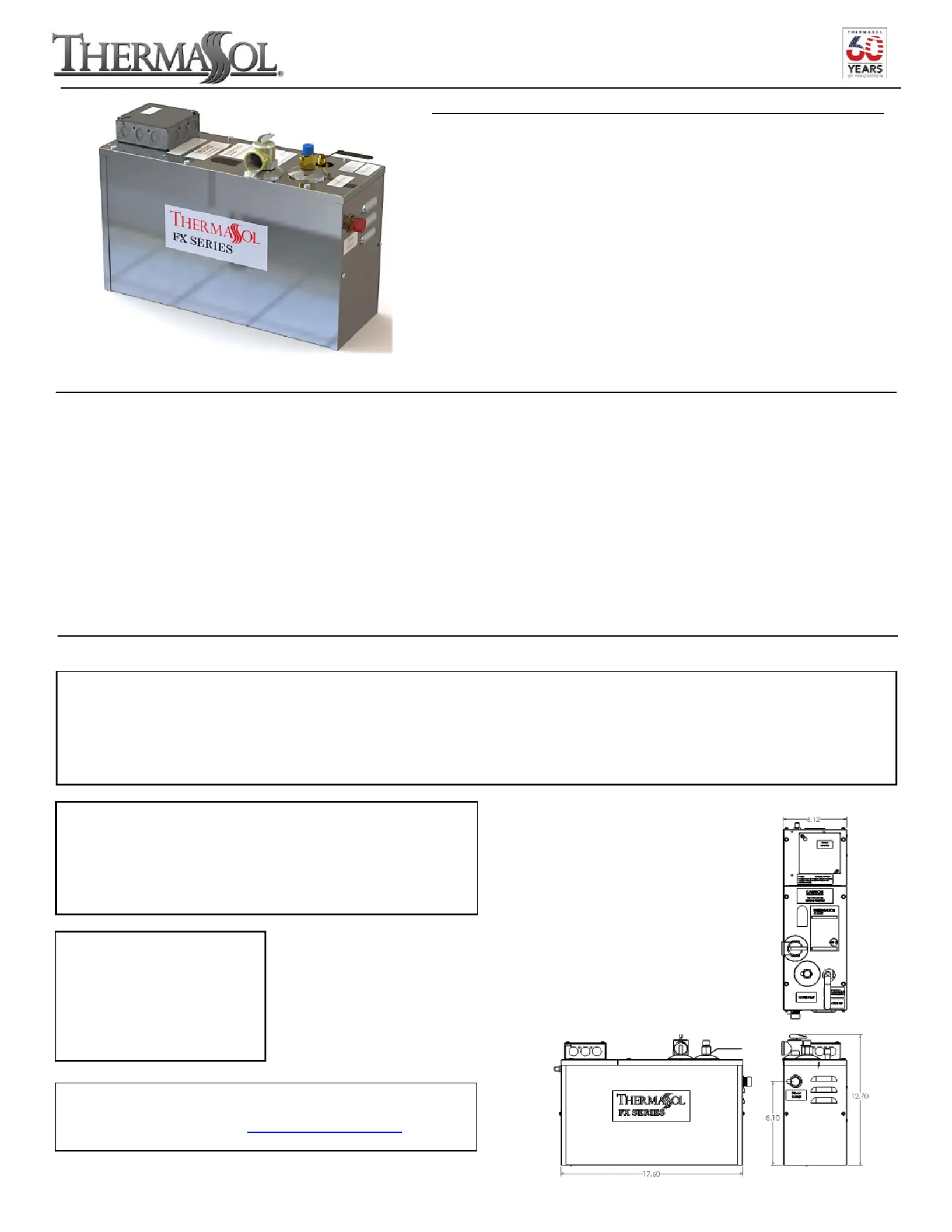

FX Series Manual Flush Steam Generator

SPECIFICATIONS

Input Voltage………….……......208-240VAC Single Phase

Kilowatt Rating…………………………………………....10.0

Maximum Amperage……………………………......46 AMPS

Breaker Size……………………………………..…...50 AMPS

Water Inlet…………………………….…...3/8” Compression

Steam Outlet…………………………………….…….1/2” NPT

Safety Valve………………………………………..….3/4” NPT

Electrical Connection……………………………..Hardwired

Maximum Room Size (Cubic Feet)………..………..…...240

For any further assistance please contact ThermaSol at

800.776.0711 or sales@thermasol.com

•Can be plumbed up to 50 . from the steam room without

upsizing the generator

•Stainless steel construcon throughout

•Temp Sensor is built into controller

Installaon Notes:

Generator must be installed by a licensed electrician.

Install this generator according to the installaon guide supplied. Follow all local plumbing and electrical codes. Unit must be accessible for

service and maintenance. Generator is factory sized: L x W x H = Steam Room Cubic Feet 2 Cu. Ft. max. Choose the appropriate generator. = 40

For every addional foot of ceiling height over 8 , use the next larger generator. Always round up when calculating the total cubic feet.

Product Specicaon Basics:

The steam generator unit dimensions are approximately 17-3/4”L x

6-1/8”W x 12-3/4”H in dimension. The generator is made from

stainless steel.

FX Series Manual Flush Series Standard Equipment:

•Manually Operated PowerFlush Pressurized inner tank cleaning system –

•Includes Fast Start Steam in s–econds… not minutes

•Constant Steam at a constant rate

•Unit has -240 volt power connecons to be installed by your licensed 208

electrician

•Superior heang element low wa density –
