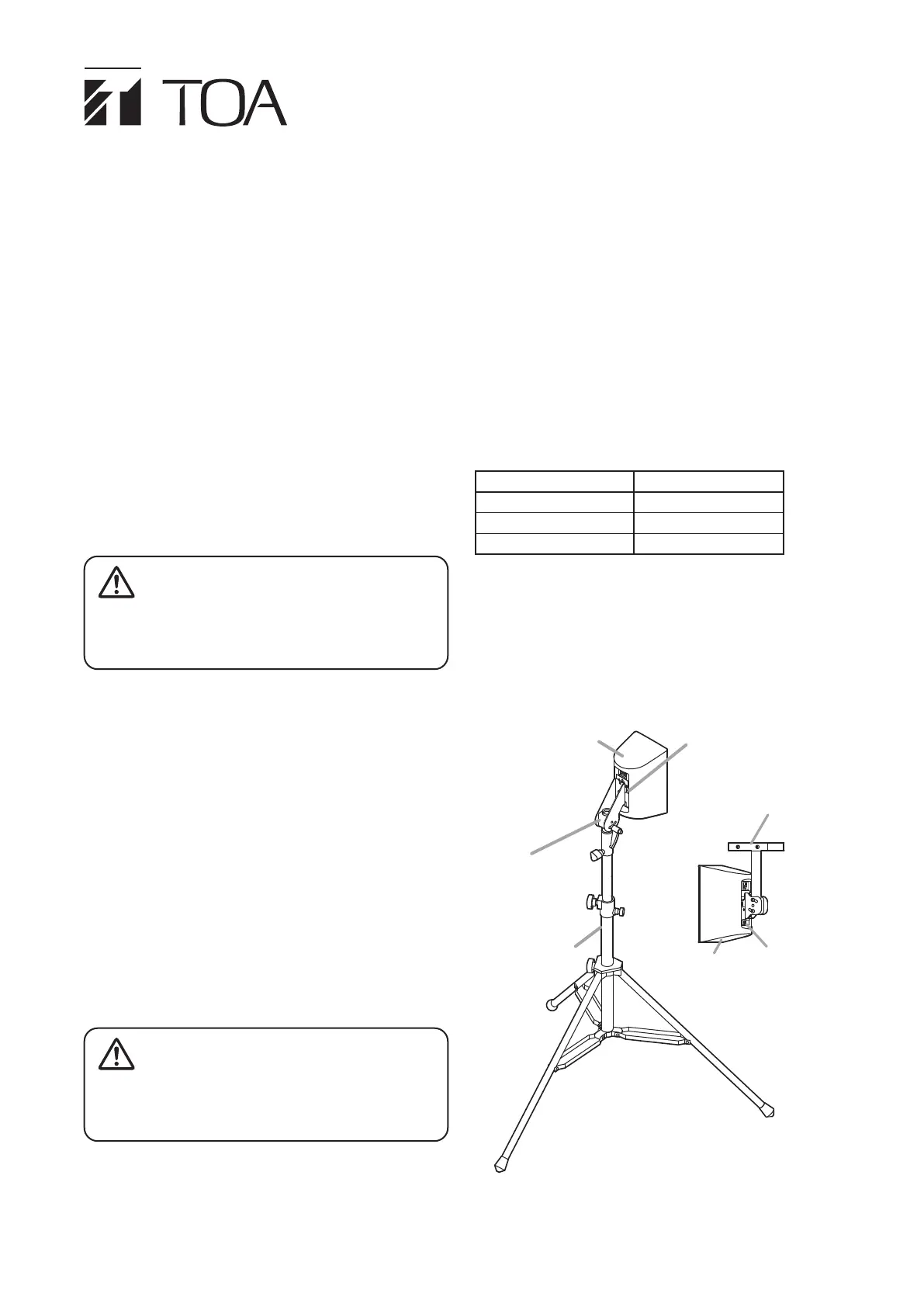

INSTALLATION MANUAL
ADAPTER PLATE
HY-F03B
、
HY-F03W
HY-F05B
、
HY-F05W
HY-F08B
、
HY-F08W
Thank you for purchasing TOA’s Adapter Plate.
Please carefully follow the instructions in this manual to ensure long, trouble-free use of your equipment.
1.SAFETY PRECAUTIONS
•Before installation or use, be sure to carefully read
all the instructions in this section for correct and
safe operation.
•Be sure to follow all the precautionary instructions in
this section, which contain important warnings and/
or cautions regarding safety.
•After reading, keep this manual handy for future
reference.
Indicates a potentially hazardous situation which,
if mishandled, could result in death or serious
personal injury.
WARNING
• Since the unit is designed for indoor use, do not install
it outdoors. If installed outdoors, the aging of parts
causes the unit to fall o, resulting in personal injury.
•Do not use other methods than specied to mount
the bracket. Extreme force is applied to the speaker
and the speaker could fall o, possibly resulting in
personal injuries.
•Tighten each nut and bolt securely. Ensure that
the bracket has no loose joints after installation
to prevent accidents that could result in personal
injury.
•Use the specied speakers in combination. Doing
otherwise may cause the speaker to fall o, resulting
in personal injury.
Indicates a potentially hazardous situation which,
if mishandled, could result in moderate or minor
personal injury, and/or property damage.
CAUTION
•Avoid touching the unit’s sharp metal edge to
prevent injury.
2.GENERAL DESCRIPTION
HY-F series is an adaptor bracket designed for attaching
the optional F-03, F-05, and F-08 series Speaker systems
to the commercial brackets*.
The table below shows the combinations of brackets and
speakers.
BracketsSpeakers
HY-F03B, HY-F03WF-03BT, F-03WT
HY-F05B, HY-F05WF-05BT, F-05WT
HY-F08B, HY-F08WF-08BT, F-08WT
* Recommended commercial brackets are as follows.
•Speaker ceiling mount: 24496 (K&M)
•Adapter:19780, 19610 (K&M)
•Adapter panel:24359 (K&M)
3.INSTALLATION EXAMPLES
F-05BT
(option)
F-05BT
(option)
HY-F05B
HY-F05B
ST-34B (option)
Speaker ceiling mount
(K&M)
Adapter (K&M)
