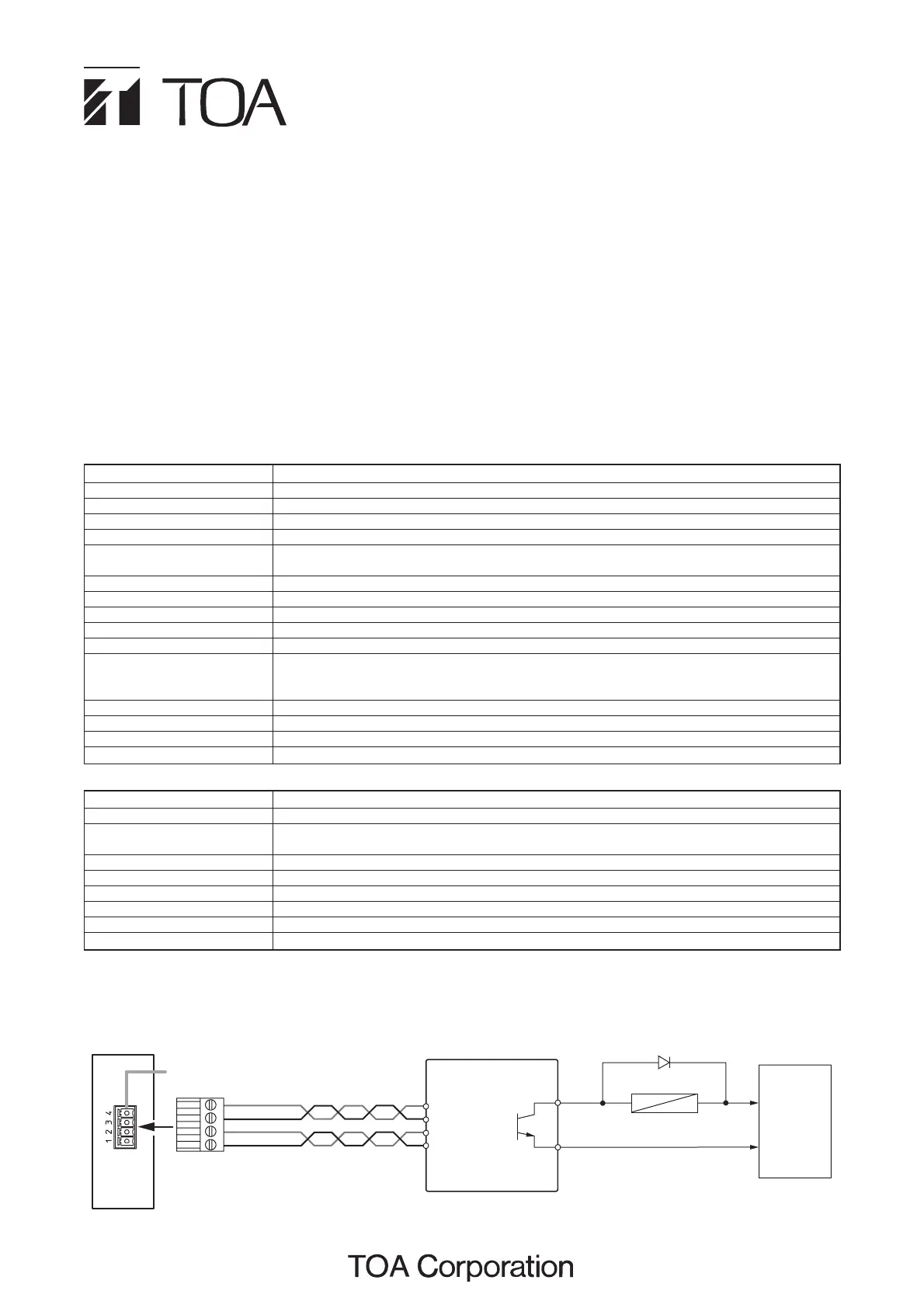

TOA RS-480 Bedienungsanleitung

Lies die bedienungsanleitung für TOA RS-480 (2 Seiten) kostenlos online; sie gehört zur Kategorie Nicht kategorisiert. Dieses Handbuch wurde von 3 Personen als hilfreich bewertet und erhielt im Schnitt 4.1 Sterne aus 8 Bewertungen. Hast du eine Frage zu TOA RS-480 oder möchtest du andere Nutzer dieses Produkts befragen? Stelle eine Frage

Note:For operation of the units, refer to the N-8000 series operating instructions.

1. GENERAL DESCRIPTION

The RS-480 is a substation to be connected to the N-8400RS Substation Interface Unit. The RS-481 is designed

exclusively for indoor-use in combination with the RS-480. It also features handset conversation with the RS-480.

Warning

This is a class A product. In a domestic environment this product may cause radio interference in which case the user may

be required to take adequate measures.

2. SPECIFICATIONS

[RS-480]

RS-480

RS-481

SUBSTATION

OPTION HANDSET

INSTALLATION MANUAL

Call ButtonMomentary (Emergency call: Press twice within 400 ms.)

Rated Input1 W

Control OutputOpen collector, Maximum controlled voltage: 30 V DC,

Control current:

30 mA

Internal SpeakerCone-type

Internal MicElectret condenser type

IndicatorWhen called:Status indicator (red) flashing

In conversation:Status indicator (red) lit

)riap-2( selbac riap detsiwTgniriW

Transmission Range1000 m/ø0.5 mm (AWG24), 1500 m/ø0.65 mm (AWG22), 2000 m/ø0.9 mm (AWG19)

Operating Temperature –10 to +50°C (Temperature range not to freeze the speaker and switch)

Housing ProtectionBS EN62262: 2002: IK02 equivalent

Dust/Water ProtectionIP54

enilriah ,leets sselniatS:lenaP hsiniF

Call button:Metal, silver

Circuit board:Weather-resistant coating

Dimensions 120 (w) x 120 (h) x 50.5 (d) mm

g 575 thgieW

AccessoriesNo.6-32UNC x 18 ... 4, Machine screw M4 x 25 ... 4

Applicable Box2-gang electrical box: YC-302 (option)

[RS-481]

Note:The design and specifications are subject to change without notice for improvement.

Handset ReceiverDynamic type

Handset MicrophoneElectret condenser type

Handset ReceiverSlide volume

Volume ControlMaximum attenuation level: 12 – 18 dB

Operating Temperature 0 to +40°C

etihw elap ,niser SBA hsiniF

Dimensions 116 (w) x 220 (h) x 71 (d) mm

g 563 thgieW

AccessoriesNo.6-32UNC x 18 ... 4, Machine screw M4 x 25 ... 4

Applicable Box2-gang electrical box: YC-302 (option)

3. CONNECTIONS

3.1. RS-480, N-8400RS, and external relay connections

External

power supply

Relay

Diode

24 V DC

GND

+

-

Open collector output: 24 V DC, Max. 30 mA

RS-480

Substation connection terminal

N-8400RS Substation interface unit

Line 3: Orange, Line 4: Yellow

Line 1 : Brown, Line 2: Red,

Yellow

Orange

Red

Brown

Blue

Green

Note:Cut out the control cables if they are not used to avoid short-circuiting.
